3.Push up throttle sticker , adjustment knob D, let the pitch degree +9-+11.
WARNING
RC helicopter is not toys! Incorrect operation may cause serious injury or damage. if you
are a novice pilot we strongly suggest that you should find an experienced pilot in RC
helicopter to assist you.
1. It is absolutely necessary to read the manual of the helicopter before operation ,it is
mandatory to check all control systems and mechanical linkages for proper operation
before every flight .safety first!
2.Since the helicopter fly very fast ,it may cause potential danger ,so the choice of the flight
field is of great importance.
3.Do not fly near crowd, high voltage cables or trees to ensure the safely of yourself and
others.
4.Do not fly in the bad weather such as rainy or thundering to ensure the safety of yourself.
5.It is suggested to fly at an open field for beginners, and fly with the training set to practice
yourself. in this case can the helicopter be protected and damage caused by the improper
operation can be reduced.
-2
+11
10

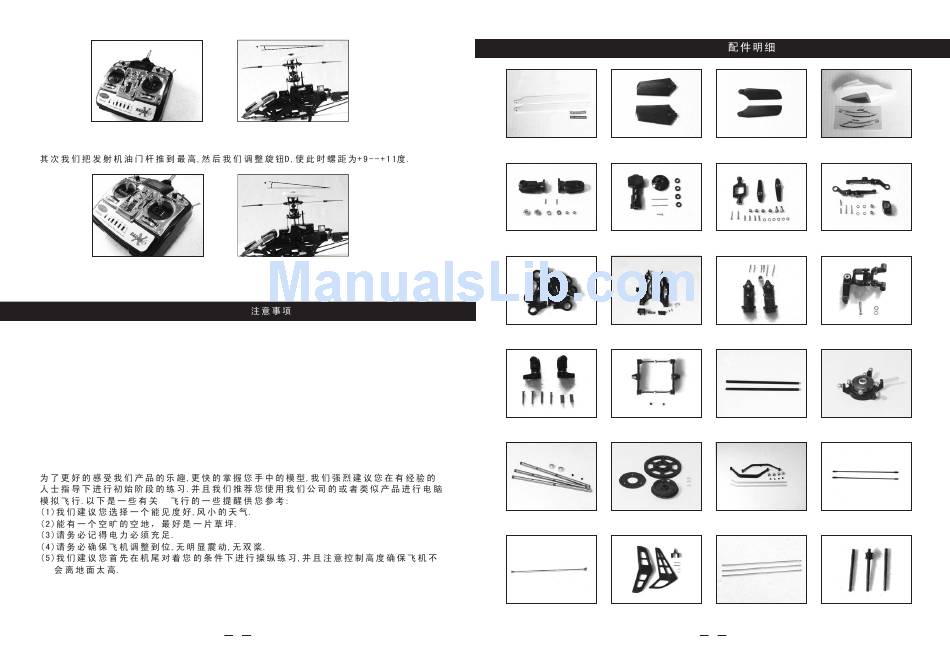

Parts Listing
Main blade
Plastic paddle
ERZ-001
ERZ-002
Main blade clamp set
Main blade housing
ERZ-005
ERZ-006
Linkage rod set
Main frame set
ERZ-009
ERZ-0010
Tail blade clamp set
Fly bar caddles
ERZ-0013
ERZ-0014
Main shaft set
Main gear set
ERZ-0017
ERZ-0018
ERZ-0021
ERZ-0022
Tail servo control
Vertical and horizontal
push rod set
tail blade set
Tail blade
Canopy set
ERZ-003
ERZ-004
ERZ-008
Seesaw and sf-arm set
Washout control arm
and washout base set
ERZ-007
Tail driven set
Tail blade controlling set
ERZ-0011
ERZ-0012
Tail boom set
Swash plate set
ERZ-0015
ERZ-0016
Landing skid set
Tail driven pedestal set
ERZ-0019
ERZ-0020
Fly bar
Tail blade main shaft set
ERZ-0023
ERZ-0024
