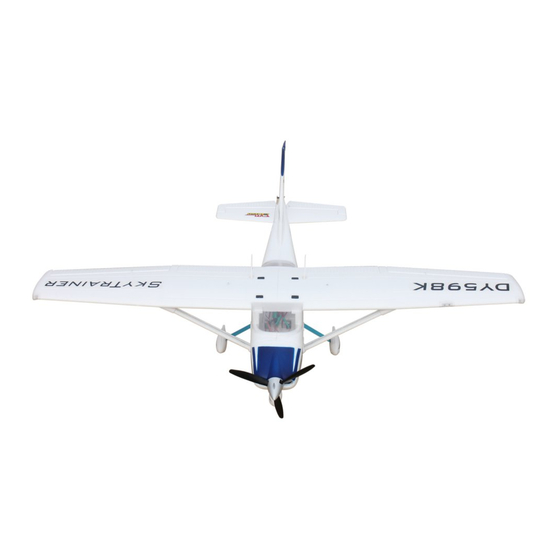

- Page 1 Инструкция для Dynam Cessna 182 SkyTrainer RTF Перейти в карточку товара 8 800 775 98 98...
-
Page 2: Specification
Instruction Manual Specification Wingspan:1280mm Battery:11.1v 2200mAh 20C Li-Po Fuselage Length:1000mm ESC:40A Wing loading:43.5g/dm Motor:KV950 Flying weight:1000g Servo:9gX4... - Page 5 RTF INCLUDING RTF including: fuselage wing elevator landing gear Vertical stabilizer plastic parts set Push rod Elevator Propeller glue decal balance charger LI-Po battery (11.1V 2200mAh 20C) transmitter Adaptor wing support Bolt Pipe Fairing...
- Page 6 Slide the nose gear into the slot from Use a hexagon screwdriver to tighten the bottom of the fuselage. the screw. Install the cowl in place. Remove the tape from both sides of fuselage head. Push undercarriage mounting plate in Remove the tape from the undercarriage position and fix in place with PA 2.5*8 cover.
- Page 7 Insert the horizontal stabilizer and Fix the stabilizers with PA 2.3*20mm vertical stabilizer in place. screw. Repeat the steps for the elevator (the Insert the pushrod into rudder servo should be in center position). quick-controller and tighten the screw (the servo should be in center position).
- Page 8 Insert the direction pushrod into the hold of Apply the foam glue on the antenna and quick-controller and tighten clamp connectors. insert it in the main wing as shown. (Remark: The servo should be in center position) Apply the foam glue on the joiner of the Glue left and right main wings together.
- Page 9 STICK OPERATION MODE 1 MODE 2 MOVEMENT THROTTLE RUDDER control plane airplane action movement ELEVATOR control plane movement airplane action AILERONS airplane action Aileron movement airplane action...
- Page 10 55 60 55 60...
- Page 11 Dynam Cessna 182 SkyTrainer RTF Описание...
