709-3932

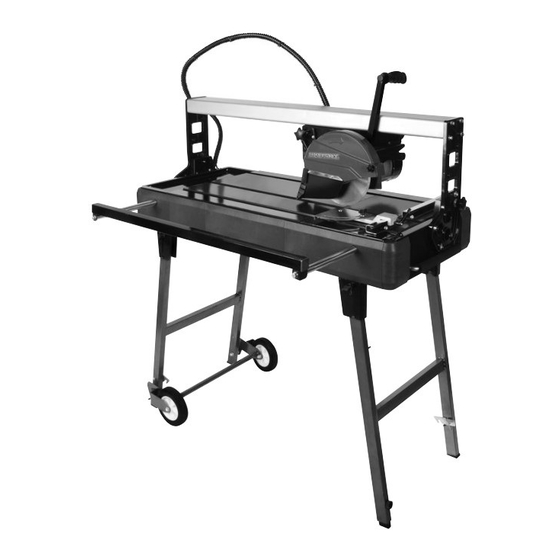

8" BRIDGE SAW
OWNER'S MANUAL
SIERRA ELÉCTRICA TIPO PUENTE DE 203MM
MANUAL DE OPERACIÓN
READ AND FOLLOW ALL SAFETY AND
OPERATING INSTRUCTIONS BEFORE USING THIS SAW.
LEA Y SIGA TODAS LAS INSTRUCCIONES
236418
DE FUNCIONAMIENTO Y SEGURIDAD ANTES DE USAR ESTA SIERRA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 709-3932 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MasterForce 709-3932

Summary of Contents for MasterForce 709-3932

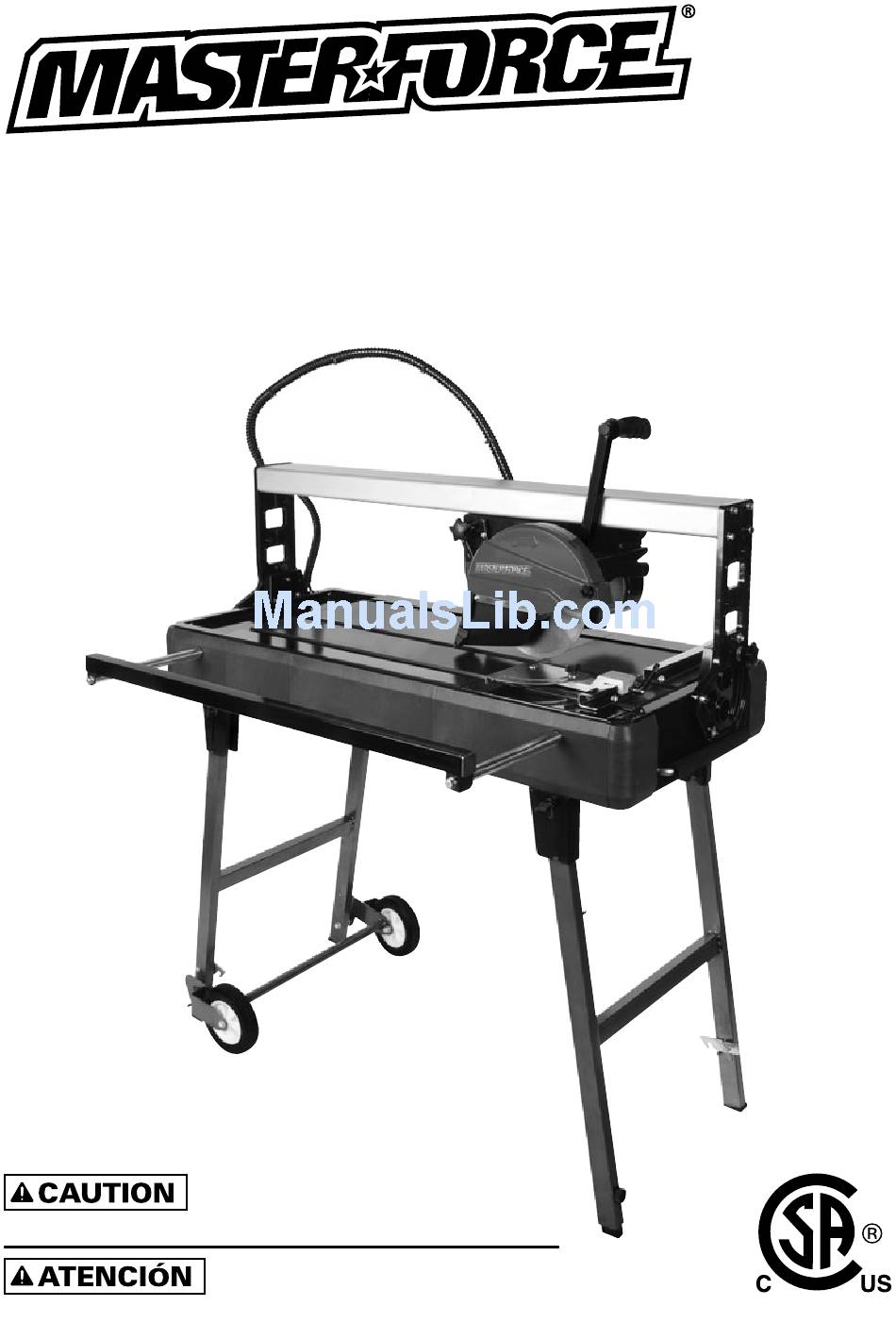

  • Page 1 709-3932 8" BRIDGE SAW OWNER’S MANUAL SIERRA ELÉCTRICA TIPO PUENTE DE 203MM MANUAL DE OPERACIÓN READ AND FOLLOW ALL SAFETY AND OPERATING INSTRUCTIONS BEFORE USING THIS SAW. LEA Y SIGA TODAS LAS INSTRUCCIONES 236418 DE FUNCIONAMIENTO Y SEGURIDAD ANTES DE USAR ESTA SIERRA.

  • Page 2: Table Of Contents

    8" BRIDGE SAW English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1 OWNER’S MANUAL FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING SAW.

  • Page 3: Warning

    19 . do not dry cut with blades 13 . Never allow the blade to run dry . Failure to 4 . improper connection of the POWER TOOL designed for wet cuts. keep the water tray at the recommended equipment-grounding conductor SUPPLY CORD level will result in possible over-heating of can result in a risK of electric...

  • Page 4: Extension Cords

    Volts Total length of cord in feet Plunge cutting head for Flexible cord rod keeps Ampere rating making interior cuts 25 ft . 50 ft . 100 ft . 150 ft . encapsulated power cords safely away from Steel blade guard More than No more than the cutting table...

  • Page 5: Starting And Stopping

    StartinG and StOPPinG 7 . Micro adjustment for perfect level . WOOD SAWING BLADES, BLADES WITH 1 . Connect the unit to a power supply of the OPENINGS, OR ANY OTHER CUTTING DEvICES 8 . To mount the handle position the handle on correct voltage and frequency (120V-60HZ) .

  • Page 6: Maintenance

    SaW: uneven wear . Discard cracked, chipped or bent blades! The 709-3932 Masterforce 8” Bridge Saw motor or bridge does not need to be squared up or 2 . DO use manufacturer’s recommendation aligned, since the bridge does not allow the saw for matching the right blade with the right material being cut .
  • Page 7 motor to move . When it appears that the saw is 4 . To adjust the gap, first remove the Angle cutting 5 . From underneath the saw, directly below the rip 6 . Once the screws are loose, easily slide the out of alignment, it is the rip fence that needs to guide .

  • Page 8: Parts List

    PARTS LIST part # description part # description 83250-1 Water Spray Guard 83250-24 Knob 83250-2 Outer Blade Guard 83250-25 Left Rail Stand 83250-3 83250-26 Butterfly Knob 83250-4 Outside Flange 83250-27 Protection Plastic Tube 5-8008BW 8 Inch Porcelain Blade 83250-28 Resetable Sheet 83250-6 Inside Flange 83250-29...

  • Page 9: Instrucciones Generales De Seguridad

    SIERRA ELÉCTRICA 16 . desconecte la sierra elÉctrica antes CABLE DE SIERRA PARA de hacerle algÚn arreglo – al cambiar TIPO PUENTE ALIMENTACIÓN LOSETA accesorios, como cuchillas, puntas, elementos ELÉCTRICA DE 203MM cortantes, etc . 17 . reduZca el riesgo de un encendido MANUAL DE OPERACIÓN involuntario.

  • Page 10: Requerimientos Eléctricos

    • Use protección para los ojos. 6 . utilice solamente cables de eXtensiÓn Voltios Longitud total del cable en pies de 3 conductores que poseen enchufes • Use una máscara protectora siempre que Régimen de amperios 7,62 m 15,24 m 30,48 m 45,72 m de conexión polo a tierra de 3 puntas y...

  • Page 11: Especificaciones Del Producto

    COnOZCa SU Sierra deSemPaQUe SI ALGUNA PARTE Su sierra para cortar losetas tiene muchas 1 . Remueva todos los materiales de empaque que ESTá DAñADA O LE HACE FALTA, NO INTENTE características integradas (ver la FIGURA 3) para están alrededor de su sierra . cortar rápidamente y eficientemente cerámica, UTILIzAR ESTA SIERRA.

  • Page 12: Operación

    8 . Para montar la empuñadura, colóquela OPERACIÓN Para HaCer Un COrte diaGOnaL 2 . reemplaZo del disco de la sierra sobre el carro y asegúrela mediante 2 1 . Siga el mismo procedimiento que para hacer A . Retire la protección del disco quitando tornillos (Fig 7) .

  • Page 13: Mantenimiento

    . Afloje ambos PLáSTICAS. ESTOS CONTIENEN qUíMICOS 6 . Usar siempre el equipo de seguridad puente 709-3932 Masterforce Sierra Eléctrica Tipo tornillos que están en la barra de aluminio qUE PUEDEN DAñAR, DEBILITAR O adecuado al operar la sierra .

  • Page 14: Lista De Piezas

    LISTA DE PIEZAS 6 . Una vez haya aflojado los tronillos, deslice fácilmente la cerca para corte recto de arriba, Cerca para permitiéndole cerrar el vacío entre la escuadra Ver el diagrama de las partes en la página 26 . corte recto y la cerca para corte recto .
  • Page 15 NOTES | NOTAS ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ – 26 – – 27 –...
  • Page 16 NOTES | NOTAS NOTES | NOTAS ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
  • Page 17 Made in China Fabriqué en Chine Hecho en China Boca Raton, FL 33487 www.qep.com A0315-9167 – 30 –...
