Nvidia DIGITS DEVBOX User Manual page 13

Powering Up the DIGITS DevBox
1.
Connect the power cable supplied to the power connector of the DIGITS DevBox.
2.
Plug the power adapter into an appropriately rated electrical outlet.
The DIGITS DevBox power consumption can reach 1350W under a heavy, multi-
GPU workload. Be sure the DevBox is connected to an adequately rated circuit to
avoid overloading the circuit.
3.
Connect the keyboard and mouse (not included).
4.
Connect the monitor (not included).

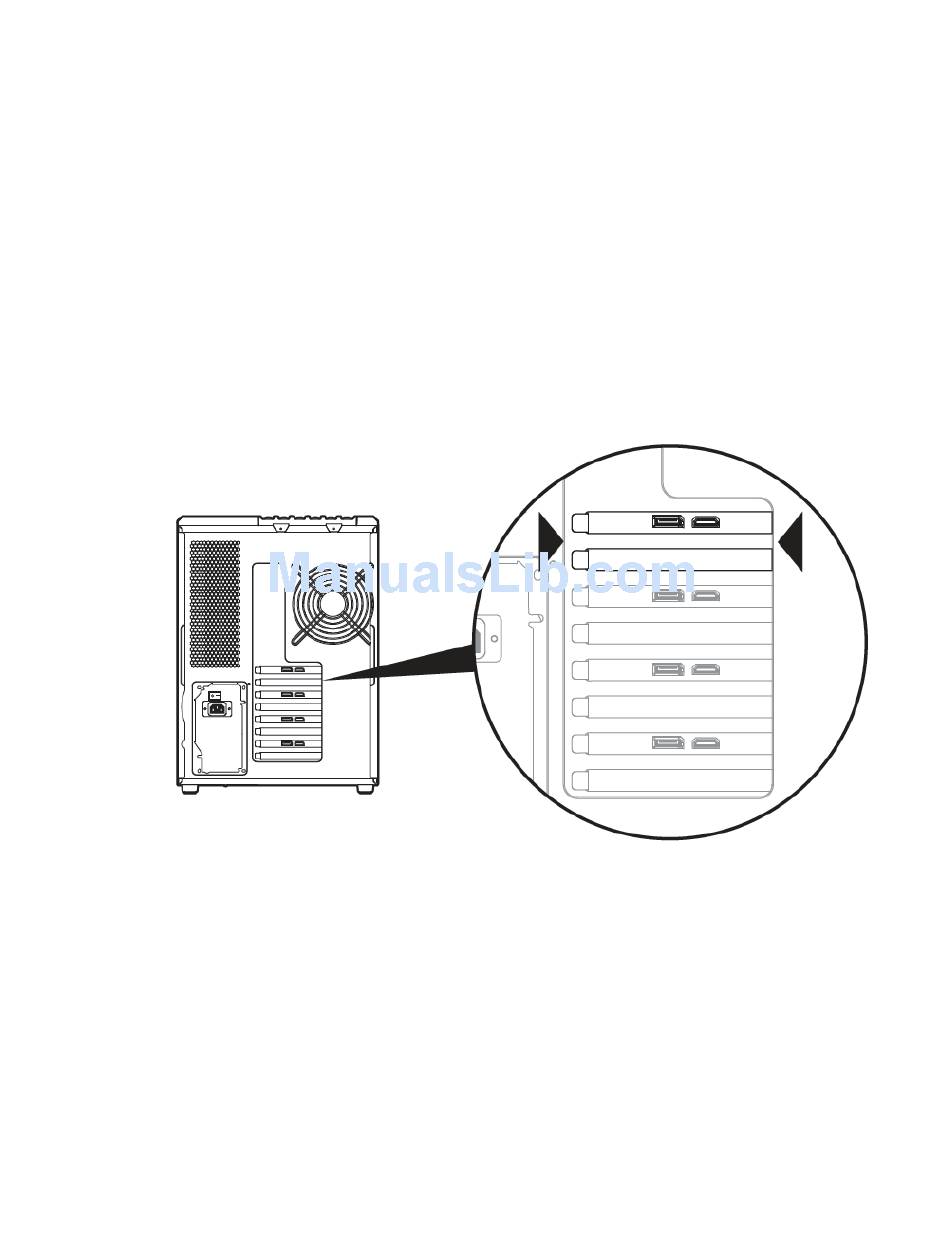

Depending on your monitor, connect it to either the DisplayPort or HDMI connector
of the graphics card located at the "top" position in the DevBox.
5. Connect a network cable.
6.
Press and release the power button on the DIGITS DevBox.
DIGITS DevBox
Setup and Maintenance
13
