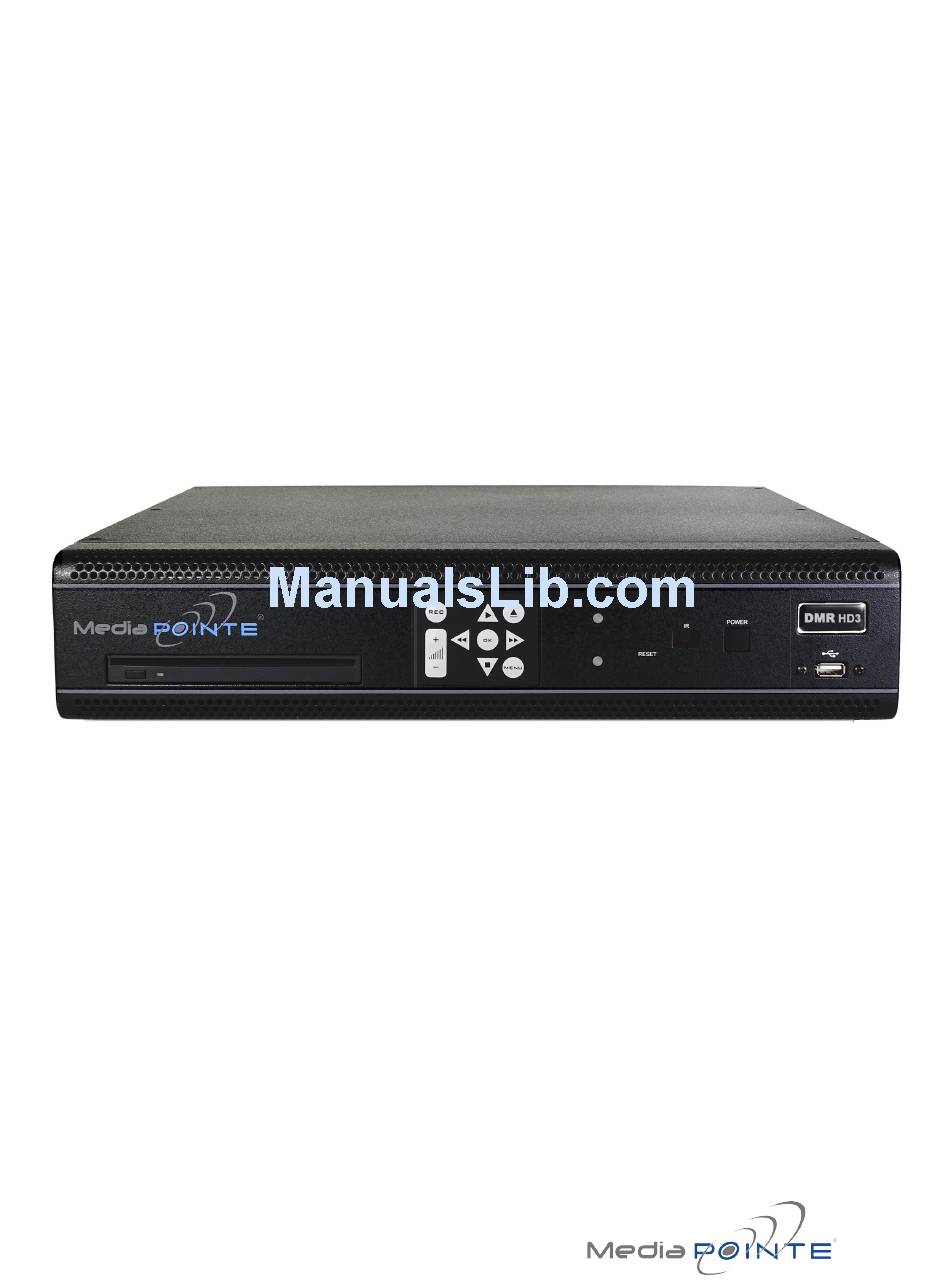

  • Page 1 DMR HD3 User Manual Version 1.0 DMR HD3 APRIL, 2015...

  • Page 2: Disclaimer

    DMR HD3 Digital Media Recorder HD3 ©2015 MediaPOINTE, Inc All rights reserved. This document contains information that is proprietary to MediaPOINTE, Inc. the manufacturer of all MediaPOINTE® products. No part of this publication may be reproduced, stored in a retrieval system, or trans- mitted, in any form, or by any means, electronically, mechanically, by photocopying, or otherwise, without the prior written permission of MediaPOINTE, Inc.

  • Page 3: Safety Precautions

    | DMR HD3 User Manual 1.0 APRIL, 2015 Safety Precautions For your protection, please read all related safety instructions, observe all warnings and precautions, and exercise com- mon sense while operating this electronic equipment. Always place the unit on a stable cart, stand or table.

  • Page 4: Hd3 Package Contents

    DMR HD3 Technical Support MediaPOINTE, Inc. Technical Support Hours: 8:30 a.m. – 5:30 p.m. Pacific Standard Time (866) 709-0444 TOLL FREE (805) 214-7911 INTERNATIONAL support@MediaPOINTE.com http://www.mediapointe.com HD3 Package Contents • 1 - MediaPOINTE HD3 • 1 - CAT-6 Black LAN Cable 6 ft.

  • Page 5: Warranty

    | DMR HD3 User Manual 1.0 APRIL, 2015 Warranty MediaPOINTE, Inc. warrants that the HD3 (excluding spare parts if applicable, external peripheral devices and consumables) will be free from any defect in materials or workmanship and shall perform in accordance with its specification for a period of 30 days for MediaPOINTE, Inc.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS | Table Of Contents About this guide Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Safety Precautions &...
  • Page 7 | TABLE OF CONTENTS Configure Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Changing Administrator Password .
  • Page 8 TABLE OF CONTENTS | vii Changing Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Edit Profiles Icon Table .

  • Page 9: Introduction And Overview

    DMR HD3 Introduction and Overview Introduction • Stream important video conferences to other locations such as overflow rooms or remote conference locations over your corporate Welcome to the user’s guide for the MediaPOINTE® network. HD3. The HD3 is one of the easiest to use, cost- effective and reliable capture, recording, streaming •...

  • Page 10: How It Works

    | DMR HD3 User Manual 1.0 APRIL, 2015 automatically transferred (FTP) to a server after the file has been indexed. How It Works (cont.) The HD3 records content in standard H.264/MPEG-4 AVC format, which can be played on a variety of desktop client players including QuickTime, VLAN and others.

  • Page 11: Front Panel Controls

    DMR HD3 HD3 Front Panel Front Panel Controls 4. RESET Button The front panel consists of an Optical Drive, the main The RESET button activates by using a small device operation Keypad, two status LEDs, a small RESET such as a pin or paper clip. Pressing the RESET button button, IR receiver, a power switch and a USB port.

  • Page 12: Back Panel

    | DMR HD3 User Manual 1.0 APRIL, 2015 HD3 Back Panel ② AUDIO/ VIDEO INPUTS Connector Function/Name Description DVI DIGITAL The DVI-1 connector is for digital signals only. HDMI/DVI NOTE: When using HDMI cables, audio is not DVI-1 Input supported...

  • Page 13: All Other Connections

    DMR HD3 ALL OTHER CONNECTIONS Connector Function Description The RJ45 LAN connector allows the supplied LAN cable to connect the HD3 to a network. The Type A USB port on the back of the unit can be used for upload or offload of video content and for network configuration of the HD3.

  • Page 14: Setting Up The Hd3

    | DMR HD3 User Manual 1.0 APRIL, 2015 Setting Up the HD3 Access Rights System Administration There are three levels of access rights: admin, author Use this information when you are ready to install and user. The Adminstrator can control all of the the HD3 hardware at your site.

  • Page 15: Author Login Security

    DMR HD3 Author Login Security NETWORK CONFIGURATION The Administrator can enable the security login for author. Checking the Enable Author Security box will Setting Description enable the author password. Enter an author password Enable DHCP settings for automatic address in the author password field then reenter the new retrieval from DHCP Server.

  • Page 16: Configuring Static Ip Address

    | DMR HD3 User Manual 1.0 APRIL, 2015 Configuring a Static IP Address Use this option with caution as you are changing the On your Internet browser, enter the current default of this configuration file and will implement the IP address of the HD3. (Note: If the unit has settings from the file.

  • Page 17: Controlling Hd3 Functions

    DMR HD3 Controlling HD3 Functions MAIN SYSTEM TOOLBAR TABLE The HD3 can be controlled by several different methods. Icon Function Description These include, a Web Portal interface, IR remote control, contact closure, RS-232 serial port, Telnet, or by the conve-...

  • Page 18: On-Screen Menu/Front Control Panel

    | DMR HD3 User Manual 1.0 APRIL, 2015 On-Screen Menu/Front Control Panel Note: There is a +5V on the tip This closure can be in the form of a relay, manual The On-Screen Menu is displayed on the DVI output of switch or semi-conductor switch.

  • Page 19: Recording, Archiving And Streaming

    DMR HD3 Recording, Archiving and Streaming Recording/Streaming Disc Burning The disks are burned as data discs. A recording/streaming session can be started and stopped from the Start/Stop section of the main toolbar Content can be moved from the HD3 to an optical disk.

  • Page 20: Transcoding

    | DMR HD3 User Manual 1.0 APRIL, 2015 the file. To add metadata to the file, select the video EDIT PROFILE ICONS TABLE you wish to edit and click on the metadata icon in the Icon Function Description Actions Menu associated with that file. Then enter your desired information into the available fields.

  • Page 21: Creating And Modifying Profiles

    DMR HD3 Creating and Modifying Profiles Creating/Modifying a Profile This section describes how to set up all configurable recording options on the HD3; only author and admin users have access To create a custom profile, you must copy one of the to these settings.

  • Page 22: Creating A Profile

    | DMR HD3 User Manual 1.0 APRIL, 2015 Creating (Copy) a Profile Next, using the screen capture on the right as a guide, set parameters. You create a profile by simply copying one of the profile templtes then fill in each section with the information you want in that profile as outlined in the steps below.

  • Page 23: Modifying A Profile

    DMR HD3 Modifying (Edit) a Profile Modifying a profile is very similar to copying one. Use the screen capture on the right as a guide to set pa- rameters. Modify each section with the information you want in that profile as outlined in the steps below. By checking the Icons on the Edit profiles web page.

  • Page 24: Setting Screen Layouts

    | DMR HD3 User Manual 1.0 APRIL, 2015 15. Video Transcoding -Makes a copy of the recorded 5. If you coose the Edit icon to change an existing file in the selected format. The drop down provides profile, click the change button below and select the four choices: Windows, H.264, Flash...

  • Page 25: Management And System Tools

    DMR HD3 Management and System Tools Notification Action The Administrator can determine the action to take The Software Management section of the HD3 menu when the HD3 hard drive is full. Make the selection and enables the system administrator to perform several press the Submit button.

  • Page 26: Upgrade System Software

    | DMR HD3 User Manual 1.0 APRIL, 2015 Upgrade System Software System Info MediaPOINTE’s Development Team is constantly striving The System Info section gives the user important to refine and upgrade features on the HD3 to lead information about the HD3. The system can be technological advances in the archiving and streaming rebooted from this page of the Web Portal.

  • Page 27: Options

    DMR HD3 Options AESOP External Storage Option All HD3 units are shipped out to the field with the basic software installed. However, the software was designed Additional external storage is available for the HD3. with the ability to receive multiple option upgrades.
  • Page 28 | DMR HD3 User Manual 1.0 APRIL, 2015 DMR HD3 Technical Support 805.214.7911 support@mediapointe.com Main Office 667 Rancho Conejo Blvd. Newbury Park, CA 91320 805.480.3700 www.mediapointe.com...
