Summary of Contents for Media Pointe DMR HD
-

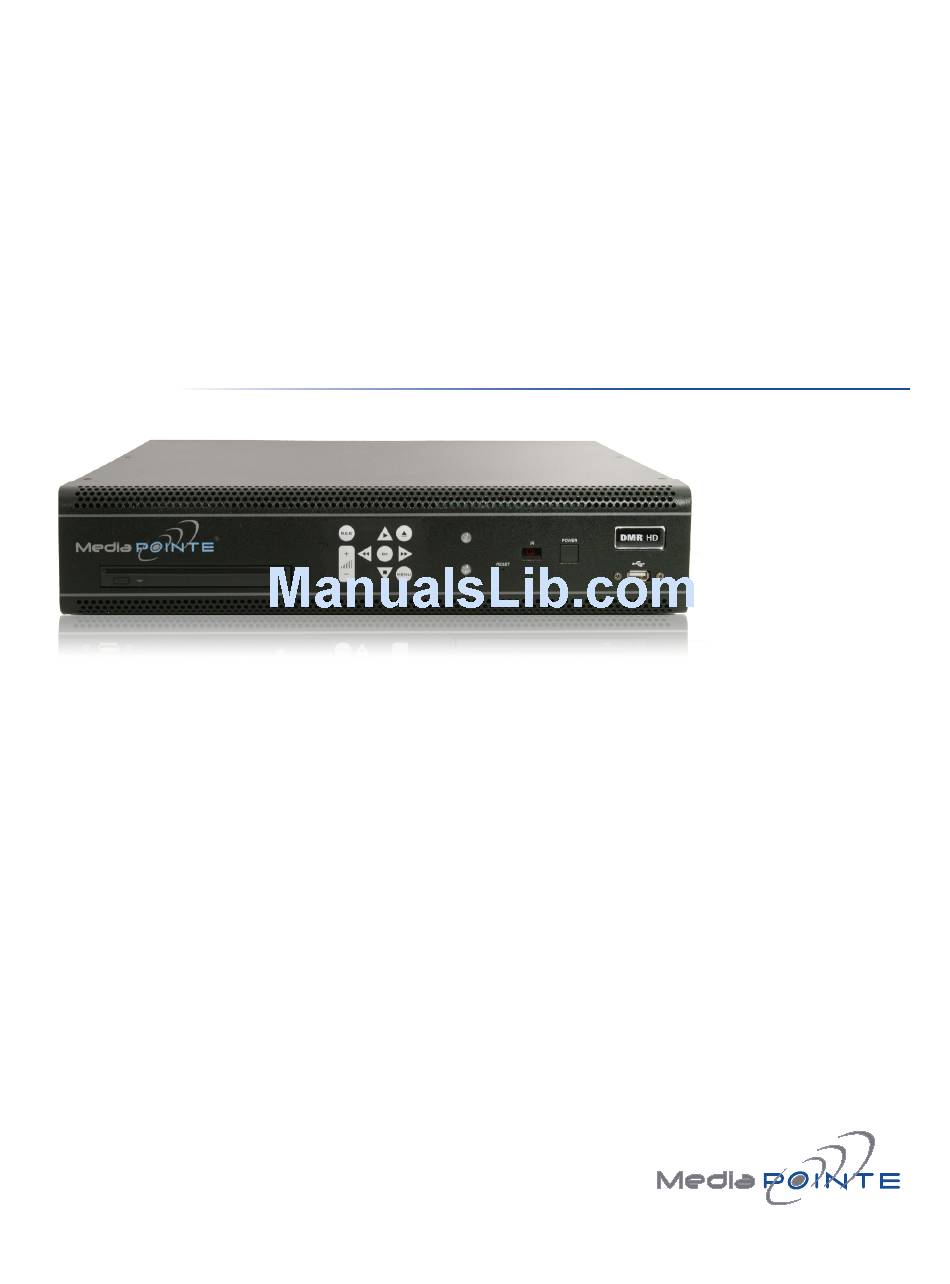

Page 1: User Manual
Digital Media Recorder HD User Manual An Advanced Media Design Technology... -
Page 2: Disclaimer
DMR HD | Digital Media Recorder HD ©2009, Advanced Media Design, Inc All rights reserved. This document contains information that is proprietary to Advanced Media Design, the manufac- turer of all MediaPOINTE® products. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronically, mechanically, by photocopying, or otherwise, without the prior written permission of Advanced Media Design, Inc. -
Page 3: Safety Precautions
If the unit does not operate to the specifications set forth in this user guide, or exhibits a distinct change in per- formance, this may be an indication of a problem needing repair. Environmental Operating Limits of DMR HD Operating Temperature: 0°C to 32°C (32°F to 90°F) Relative Humidity: 10% to 90% non-condensing Storage &... - Page 4 DMR HD | DMR HD Package Contents • 1 - MediaPOINTE DMR HD • 2 – RCA Video Cable • 2 – S-Video Cable • 1 – Male VGA (RGBHV) Cable • 1 - CAT-5e LAN Cable • 1 - RCA Stereo Audio Cable • 1 - AC Power Cable • 1 – Male DVI-D Cable • 1 – IR Remote Control plus 2 AAA batteries • 1 – Rack Mount Kit • Documentation CD-ROM • Warranty Document • Registration Sheet...
-
Page 5: Warranty
v | DMR HD User Manual 4.0 August 2009 Warranty MediaPOINTE warrants that the DMR HD (excluding spare parts if applicable, external peripheral devices and consumables) will be free from any defect in materials or workmanship and shall perform in accordance with its specification for a period of 30 days for MediaPOINTE software and 1 year for hardware, starting on shipment date of the initial purchase of the equipment. MediaPOINTE disclaims any and all implied warranties of merchantability or fitness for a particular purpose. MediaPOINTE’s sole liability for breach of this warranty will be (at its option) to provide access to software for download or to repair or replace the defective unit or component after customer has shipped the product to MediaPOINTE for return-to-factory repair. Customer must obtain an RMA (return material authorization) number from MediaPOINTE prior to returning equipment. -
Page 6: Table Of Contents
Table of contents | Table Of Contents About this guide Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Safety Precautions . - Page 7 Playback on DMR HD . . . . . . . . . . . . . . . . . .
- Page 8 Table of contents | v USB Offload/Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Streaming .
-
Page 9: Introduction
DMR HD | DMR HD Introduction & Overview Introduction • Discuss research, engineering, architecture, product design, or process analysis when the participants are not able to meet in one central location. Welcome to the user’s guide for the MediaPOINTE® DMR HD. The DMR HD is one of the easiest to use, • Access a centralized data bank of expertise from a cost-effective and reliable archiving and streaming field location. -
Page 10: Front Panel
| DMR HD User Manual 4.0 August 2009 DMR HD Front Panel 3 . LED Status Front Panel View The LED indicators are used to describe system The front panel consists of an Optical Drive, the main states, actions and error conditions. The valid LED operation Keypad, two status LEDs, a small RESET states are described in the table below. button, IR receiver, a power switch and a USB port. The following is a brief description of each of these... -
Page 11: Power Switch
DMR HD | DMR HD Front Panel 6 . Power Switch This POWER button on the front of the unit will turn the unit on and off. It is used in conjunction with the main power switch on the rear of the unit. 1. Ensure power supply switch is in the ON position (on back panel) 2. Start the unit by pressing the POWER button 7 . USB Port The USB port can be used to offload media from and to the DMR HD. It can also be used to set or capture an IP address. See the Network Configuration section for USB... -
Page 12: Back Panel
DVI-D and DVI-I cables to be used . The HD15 connector is used for local monitor playback of files directly from the DMR HD or when using the On Screen Menu to control the unit . This output can VGA (RGBHV) -
Page 13: Setup & Application Diagrams
. RS-232 The IEC connector allows the included IEC cable to connect the DMR HD to AC power . Make sure the power on/off switch is in the off position before plugging in AC Power the power cable . - Page 14 | DMR HD User Manual 4.0 August 2009...
- Page 15 DMR HD |...
-
Page 16: Setting Up The Dmr Hd
Setup As an Administrator Use this information when you are ready to install the DMR HD hardware at your site. To turn on the unit ensure the power supply switch is in the ON position then start the unit by The Administrator maintains all rights to the DMR HD. -
Page 17: As A User
DMR HD | field (10 characters maximum) and confirm it by 2. Use the login id “author”. The password will be clicking Change Admin Password button. The next time user defined in the User Security section of the main the DMR HD is accessed, the new admin password will menu. Note that the login id and the password are case take effect. sensitive. Be sure to write down the new administrator password Author Login Security and keep it in a safe place. -
Page 18: Network Configuration
DHCP Server . Disabling the DHCP client will require a static IP address (with subnet mask and default gateway) to be entered . USB Network Configuration IP Address Assign a static IP address to DMR HD . This field will also display the currently assigned IP address This section describes how to configure the DMR HD. IP Subnet Assign subnet mask to DMR HD . -
Page 19: Smtp Mail
DMR HD | 11 dhcp=(bool)0 dns_1=(string)192.168.0.2 dns_2=(string) 192.168.0.3 ethernet=(string)auto connection text box. If a password is not desired on the Telnet session, leave the text box blank. gateway=(string)192.168.1.1 RS-232 ipaddress=(string)192.168.1.253 netmask=(string)255.255.255.0 On the back of the DMR HD there is a serial control port If the dmx_ip_conf.txt file is intentionally configured as a DTE that supports the RS-232 protocol. A left blank with no text of any type within Null-Modem cable should be used between the DMR HD the body of the file, the DMR HD will and the COM port on your PC. -
Page 20: Control & Operation
August 2009 Control & Operation ud ea Toolbar The DMR HD can be controlled by several different methods. These include, a Web Portal interface, IR remote control, con- tact closure, RS-232 serial port, Telnet, or by the convenient button panel (Keypad) on the front of the unit. This section will cover each of these control interfaces in detail. -
Page 21: On-Screen Menu/ Front Control Panel
DMR HD | On-Screen Menu / Front Control Panel The On-Screen Menu is displayed on the VGA (RGBHV) or DVI output of the DMR HD. The DMR HD IR remote or Front Control Panel (keypad) will provide some of the configuration features of the Web Portal as well as provide the ability to navigate and playback non- password protected content stored on the DMR HD. Icon Function Description Currently the on screen menus give the user the Show Folders Will display the folder management tree . following capabilities: Start/Stop Recording Will allow content to be moved from one... -
Page 22: Telnet
To access the telnet client, open a command prompt on these connections are not isolated and can form your computer and enter: telnet <ipaddress> grounding or hum loops. Once connected to the DMR HD, a connect message will be displayed. DMR HD Welcome to MediaPOINTE Password:_ Once logged in, type ‘help’ or ‘?’ for a list of commands. -
Page 23: Recording, Archiving & Streaming
DMR HD | Recording, Archiving & Streaming Recording and Streaming busy and cannot record or stream until the process is complete. Depending on the length of the archived material, this could take a few seconds up to several A streaming/recording session can be started and minutes to complete. stopped from the Start/Stop section of the main toolbar and from the profile listing. The “default” profile will Disabling / enabling multicast... -
Page 24: Recorded Content Detail
Will add the selected media to the email Add Media attachment . Will remove the selected media from the Remove Media email attachment . Playback on DMR HD Will close the Mail Attachment Window . Close Mail Content stored on the DMR HD can be viewed on the VGA (RGBHV) or DVI output. Selecting the Play Locally A recording initiated from IR, the remote button will start the content playback. -
Page 25: Download Manager
DMR HD | Download Manager server. SCP, FTP, and FTPS are all available options for transferring files. To transfer your desired file, choose the Manual FTP icon in the actions menu. Enter the Files and Folders can be downloaded to the browsing server destination, Port number (optional for non computer using the Download Manager. -
Page 26: Management & System Tools
This section describes how to set up all configurable record- Icon Function Description ing options on the DMR HD; only author and admin users have Will start a recording/streaming session using Start Record/ access to these settings. the settings specified in Profile . -
Page 27: Creating/Modifying A Profile
Archive and/or To enable or disable the ability to archive and stream, for Delete local To keep a copy of the recorded media on the DMR HD, Stream your custom profile, click on the check box next to the media after ensure that the Delete Local Media after successful FTP appropriate icons . -
Page 28: Titles & Credits
DMR HD . VTC Settings Description Setting Uses the LAN to have the DMR HD receive the Connection command and record when a call is placed with the Images must be in JPEG format. codec . -
Page 29: Notifications
The error log will provide a description of the problem that put Update (Upgrades) Error Log the DMR HD into an error state ( the Yellow LED will be on) The Software Management section of the DMR HD menu enables the system administrator to perform several Storage Limits key functions. -
Page 30: Reset Configuration
This will reboot the unit and the new Available disk space recording . software will be in place. This is a unique indentifier, specific to your DMR HD . Provide MediaPOINTE technical support with this number should you call to start a ticket . Options Future Optional features will be listed here . -
Page 31: Options
Installing Upgrade Packages After your purchase of an upgrade option(s), Advanced Media Design’s tech support team will walk you through the process of enabling your specific option(s) (i.e. video 2 enabled with the Studio Package). Studio Package: The Studio upgrade package adds to the DMR HD functionalities: Studio DMR HD Studio DMR HD Custom Video Templates Functionalities Package Option 1 Composite 2 Composite To select one of the 20 different CUSTOM profile Audio/Video Source 1 S-Video... -
Page 32: Video-On-Demand Option
Actions and a window will open and display the stream. The following tables describe AMD devices’ play/ stream VOD capabilities: Video-On-Demand Channel Product Matrix Capabilities Description DMR HD VIDi HD VIDi HD-d View/Play recorded content from View/Play live stream from Make recorded content available to... - Page 33 Appendix a | 25 Appendix A The studio package key will require several user defined settings to be reset to their default configuration. Before updating your unit please take note of these settings so they can be re configured when the update is complete. 1. NTP settings will be disabled 2. User and Author passwords will be reset to blank 3. Comm port will be disabled 4. SMTP settings will be removed 5. Notification settings are lost 6. Logging is re-enabled 7. Display resolution will be set to 1280x1024 8. VTC settings are blank...
- Page 34 An Advanced Media Design Technology Technical Support 805.214.7911 support@mediapointe.com Main Office 667 Rancho Conejo Blvd. Newbury Park, CA 91320 805.480.3700 www.mediapointe.com...
