Summary of Contents for Media Pointe DMR HD3

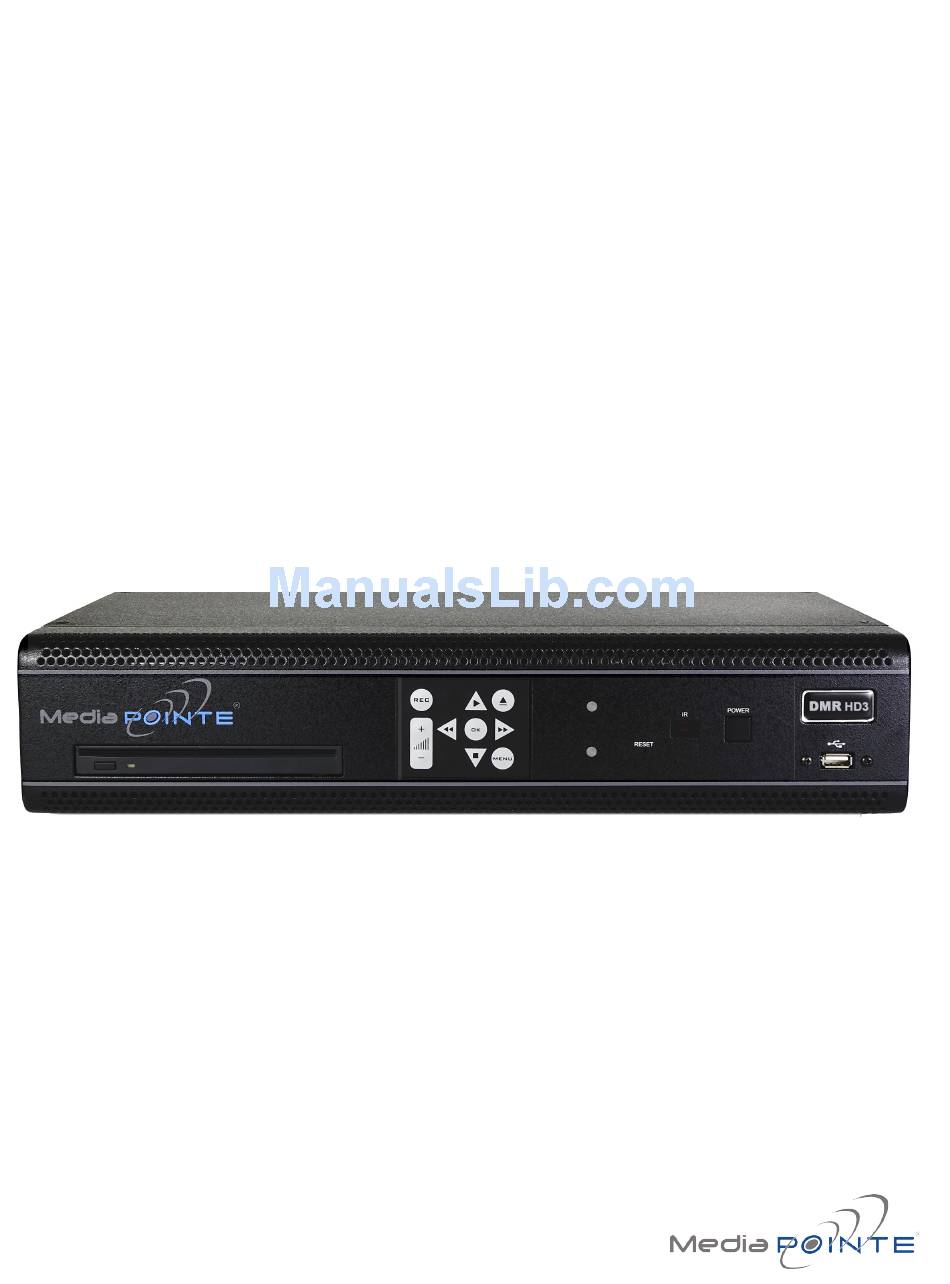

  • Page 1 DMR HD3 User Manual Version 1.4 DMR HD3 January, 2016...
  • Page 2: Disclaimer

    | DMR HD3 User Manual 1.4 Januar y, 2016 Digital Media Recorder DMR HD3 ©2016 MediaPOINTE, Inc All rights reserved. This document contains information that is proprietary to MediaPOINTE, Inc. the manu- facturer of all MediaPOINTE® products. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronically, mechanically, by photocopying, or oth- erwise, without the prior written permission of MediaPOINTE, Inc.
  • Page 3: Service Support And Training

    If the unit does not operate to the specifications set forth in this user guide, or exhibits a distinct change in performance, this may be an indication of a problem needing repair. Environmental Operating Limits of DMR HD3 Operating Temperature: 0°C to 32°C (32°F to 90°F) Relative Humidity: 10% to 90% non-condensing Storage &...
  • Page 4: Technical Support

    Hours: 8:30 a.m. – 5:30 p.m. Pacific Standard Time (866) 709-0444 TOLL FREE (805) 214-7911 INTERNATIONAL support@MediaPOINTE.com http://www.mediapointe.com DMR HD3Package Contents • 1 - MediaPOINTE DMR HD3 • 1 - CAT-6 LAN Cable 6 ft. • 1 - RCA Stereo Audio Cable • 1 - AC Power Cable •...
  • Page 5: Warranty

    HD3 User Manual 1.4 Januar y, 2016 Warranty MediaPOINTE, Inc. warrants that the DMR HD3(excluding spare parts if applicable, external peripheral devices and consumables) will be free from any defect in materials or workmanship and shall perform in accordance with its specification for a period of 30 days for MediaPOINTE, Inc. software and 1 year for hardware, starting on shipment date of the initial purchase of the equipment.
  • Page 6: Table Of Contents

    Service Support and Training . . . . . . . . . . . . . . . . . . . . . . . ii Technical Support and DMR HD3 Package Contents . . . . . . . . . . . . . iii Warranty .
  • Page 7 Playback on DMR HD3 . . . . . . . . . . . . . . . . . .
  • Page 8 TABLE OF CONTENTS | vii Titles & Credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Changing Profiles .
  • Page 9: Introduction And Overview

    Welcome to the user’s guide for the MediaPOINTE® product design, or process analysis when the DMR HD3. The DMR HD3 is one of the easiest to use, participants are not able to meet in one central most cost-effective and reliable capture, recording, location.
  • Page 10: Dmr Hd3Front Panel

    7. USB Port Ready The USB port is used to offload media from and to the Record/Stream DMR HD3. It can also be used to set or capture an IP Indexing RED - Fast Blink address. See the Network Configuration section for...
  • Page 11: Dmr Hd3 Back Panel

    | DMR HD3 User Manual 1.4 Januar y, 2016 DMR HD3 BACK PANEL AUDIO/ VIDEO INPUTS Connector Function/Name Description The DVI-1 connector is for digital or analog signals. NOTE: When using HDMI cables, audio is not DVI-1 Input supported The DVI-2 connector is for digital or analog signals.
  • Page 12: All Other Connections

    (Note: a null-modem serial cable is required). The IEC connector allows the included IEC AC power cable to connect the DMR HD3 to AC power. AC Power Make sure the power on/off switch is in the off position before plugging in the power cable.
  • Page 13: Setting Up The Dmr Hd3

    DMR HD3. settings under the “Record/Stream” section in the main To log into the DMR HD3, browse to its IP address using menu. No password is required for the “author” login as your Internet web browser. The default IP address a default.
  • Page 14: Author Login Security

    Date & Time section of the main menu. The date can be selected from the pop-up NOTE: To change the default IP settings of the DMR HD3 calendar. The Time Zone can be selected from the or any of the other configuration settings, you must log drop down menu.
  • Page 15: Configuring Static Ip Address

    DMR HD3 can be set via a special configuration text file on a USB memory stick. Insert the memory stick into one of the DMR HD3 USB ports at any time. The unit will look for the presence of this configuration file and will implement the settings from the file.
  • Page 16: Controlling Dmr Hd3 Functions

    Rename Changes the name of the name Web Portal Overview Folder of the selected folder The DMR HD3 has a fully featured Web Portal that can Delete Permanently deletes folder accessed via a web browser. Enter the unit’s IP Folder including all content address in the web browser’s address bar and logon.
  • Page 17: On-Screen Menu/Front Control Panel

    External Control RS-232 Telnet (TCP/IP) On the back of the DMR HD3 there is a serial control port configured as a DTE that supports the RS-232 pro- The telnet client within the DMR HD3 provides access tocol. A Null-Modem cable should be used between the to the Command Line Interface through the TCP/IP DMR HD3 and the COM port on your PC.
  • Page 18: Recording, Archiving, Streaming And Vod

    The disks are burned as data discs. A recording/streaming session can be started and Content can be moved from the DMR HD3 to an optical stopped from the Start/Stop section of the main toolbar disk. Insert a blank disk into the DMR HD3 and select and from the profile listing of the Web Portal.
  • Page 19: Transcoding

    Management page. EDIT PROFILE ICONS TABLE Titles & Credits Icon Function Description JPEG images can be uploaded to the DMR HD3 in Start Starts a recording/streaming the Titles & Credits selection of the main menu. Record/ session using the settings...
  • Page 20: Creating And Modifying Profiles

    This section describes how to set up all configurable recording profiles outlined below in red as a starting point options on the DMR HD3; only author and admin users have (DVI 1, DVI2 or DVI 3.) access to these settings.
  • Page 21: Creating A Profile

    | DMR HD3 User Manual 1.4 Januar y, 2016 Creating (Copy) a Profile Next, using the screen capture on the right as a guide, set parameters. Fill in each section with the informa- tion you want in that profile as outlined in the steps below.
  • Page 22: Modifying A Profile

    | DMR HD3 User Manual 1.4 Januar y, 2016 Modifying (Edit) a Profile Modifying a profile is very similar to copying one. Use the screen capture on the right as a guide to set pa- rameters. Modify each section with the information you want in that profile as outlined in the steps below.
  • Page 23: Setting Screen Layouts

    | DMR HD3 User Manual 1.4 Januar y, 2016 Setting screen layouts You can choose a screen layout while creating or editing profiles. If you choose the Copy Icon to create a new profile, click the change button as shown below (outlined in red.) Then select the layout you want from the Screen Layouts pop up as shown at the bottom of this page.
  • Page 24: Management And System Tools

    The upload history tab shows you previously Upload uploaded files. History The DMR HD3 has the ability to test audio and video to connected output devices without the need for live input sources. There are four audio test tones and Logging...
  • Page 25: Upgrade System Software

    SYSTEM INFORMATION In order to keep the DMR HD3 up to date with all of the latest features, you may want to update the system Setting Description software from time to time. Follow the following steps...
  • Page 26: Options

    | DMR HD3 User Manual 1.4 Januar y, 2016 Options All DMR HD3 units are shipped with the basic software installed. However, the software was designed with the ability to receive multiple option upgrades. Please contact MediaPOINTE to purchase these options.
  • Page 27 | DMR HD3 User Manual 1.4 Januar y, 2016 DMR HD3 User Manual Version 1.4 MediaPOINTE, Inc. Technical Support Hours: 8:30 a.m. – 5:30 p.m. Pacific Standard Time (866) 709-0444 TOLL FREE (805) 214-7911 INTERNATIONAL support@MediaPOINTE.com http://www.mediapointe.com Main Office 3952 Camino Ranchero Camarillo, CA.
