- Page 1 Ver 1.0...
- Page 2 Thank you for purchasing the Pager. Through its advanced technology, the will keep you connected to your important messages, anytime, anyplace. Please read this manual carefully to maximize all of its features and capabilities.
-
Page 3: Table Of Contents
FEATURES DESCRIPTION OF INDICATORS & SYMBOLS CONTROL BUTTONS OPERATION Installing/Replacing the Battery Turning the Backlight On/Off Turning The Pager On Turning The Pager Off Main Screen Function Menu Screen Inbox Folder Screen Info Folder Screen Saved Folder Screen Reading Messages in each Folder Scrolling Screen by Screen Reading Previous or Next Message... - Page 4 FUNCTION MENU Setting the Time and Date Setting Alarm Setting Private Time Setting Message Alert Setting Audible ON/OFF Enabling the Display Zoom Enabling the Reminder Alert Low Battery Alert Locking and Unlocking Messages Deleting A Message Deleting All Messages Moving A Message to the Saved Folder Setting the Info Slot Alert Type...
-
Page 5: Features
16 Flex addresses 6 Line x 20 Alpha Character Display Up to 20 Inbox Messages 15 Info Message Slots Up to 16 Saved Messages Inbox Message Storage: 6400 Characters Info Message Storage: 19200 Characters Saved Message Storage: 3200 Characters Up to 10 Inbox Messages can be Locked to Prevent Deletion Info History of up to 7 messages... - Page 6 Zoom On/Off (User Selectable) Battery Status Display One Time or Daily Alarm (User Selectable) Message with Time & Date Stamp Automatic Alert Reset One Beep, Seven Alerts (#7 the continuous Alert) Plus Chirp, Vibe, Vibe and chirp and Silent Options Reminder Alert for Unread Messages (User Selectable) Menu Option to Turn Device ON/OFF New Message Indication (Flashing Icon)
- Page 7 Unread Message Indication Continuous Message Indication (with Icon) Erred Character Indication All or Individual Message Delete Memory Full Indication (with Icon) Message Slot Number Duplicate Message Indication (with Icon) EL Backlight Display Out of Service Range Indication (Optional) Message Retention During Battery Replacement 1 AA Battery Private Time...
-
Page 8: Description Of Indicators & Symbols
DESCRIPTION OF INDICATORS & SYMBOLS Indicators Audio Alert In Range or Out Range Indication Vibe Alert Full Battery Status Enabled Alarm 2/3 Battery Status Enabled Private Time 1/3 Battery Status New Page or Unread Message Indication Low Battery Status Lock Message Message Continuation Power On Unlock Message... - Page 9 DESCRIPTION OF INDICATORS & SYMBOLS Symbols Set Private Inbox Folder Info Folder Zoom Saved Folder Enable Reminder Set Time Disable Reminder Set Alarm Delete All Set Alert Delete Pager Off Escape Move to Saved Folder...
- Page 10 DESCRIPTION OF INDICATORS & SYMBOLS Symbols Info Slot (Enabled Alert) Saved Message Unread Info Slot (Enabled Alert) Unread Inbox Message Set Info Slot Alert Read Inbox Message Enable Private Time Read Info Slot Disable Private Time Unread Info Slot Message Cursor Set Audible ON Set Audible OFF...
-
Page 11: Control Buttons
CONTROL BUTTONS Use to navigate through the Function menu and through your messages Use to navigate through time, alarm, and date setting functions Use to enter the Function menu mode Use to turn the Backlight off Use to exit to current unction mode Use to turn the pager on and off Use to read the received message... -
Page 12: Operation
Installing/Replacing the battery Turn your pager off, hold the pager face down, slide the battery door lock away from the door and open the battery compartment by pressing down with your thumb on the battery door and sliding the battery door in the direction indicated by the arrow on the battery door. -
Page 13: Turning The Backlight On/Off
Turning the Backlight ON/OFF The backlight allows viewing of messages in low light conditions. To turn the backlight On, press and hold for 2 seconds The Backlit will automatically turn off after 10 seconds of no buttons being pressed To immediately turn the backlit Off, press and hold for 2 seconds If the buttons pressed in the dark the backlight is automatically turned on... -
Page 14: Turning The Pager On
Turning the Pager On Press the Read button for two (2) seconds to turn the pager on. A start-up screen is momentarily displayed and the pager alerts the currently selected alert-mode (Vibe, Audio, Silent). PowerUp Screen Stand by Screen Main Screen... -
Page 15: Turning The Pager Off
Turning the Pager Off Press the button to display the Function menu Press the button to move the cursor on OFF icon Press the button "TURN PAGER OFF?" is displayed Press the button again to turn the pager off Off Screen The pager is now off and the screen should be blank. -

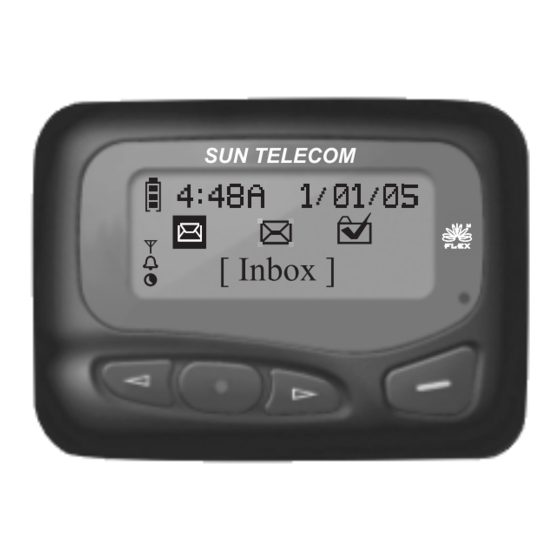

Page 16: Main Screen
Main Screen Pressing any of the buttons on the Standby Screen will provide access to the Main Screen. The Main Screen shows both the current status of message folders (Inbox/Info/Saved) and the time and date. The Main Screen also displays any activated pager settings on the left Main Screen hand side. -
Page 17: Function Menu Screen
Function Menu Screen The Function Menu provides access to the many features in corporated in the T4 . As you navigate through the Function menu, the Function icon will change to indicate the current location of the cursor. Press to navigate through the Function menu... -
Page 18: Inbox Folder Screen
Inbox Folder The Inbox Folder Screen shows information about your Inbox messages. - Status: Unread, read or locked - Timestamp: Month/Day - Preview: First and second line of message Inbox Folder Screen Note: The status of an unread message will not change by previewing the message. -
Page 19: Info Folder Screen
Info Folder Screen The Inbox Folder Screen shows information about your Inbox messages. - Status: Unread, read or locked - Timestamp: Month/Day - Preview: First and second line of message Info Folder Screen Saved Folder Screen The Saves Folder Screen shows information about your Inbox messages. -
Page 20: Reading Messages In Each Folder
Reading Messages in each Folder Press to move the cursor to the message you want to read Press button to read the message Scrolling Screen by Screen Press and hold button Reading Previous or Next Message When reading a message, Press button to read the Previous or Next message Note: If the reminder alert is enabled, the pager will give a periodic alert until all unread messages are read. -
Page 21: Function Menu
Setting the Time and Date To set the Time and Date, perform the following steps. From the Function Menu: Press to move the cursor to display "SET TIME" Press to display the Set Time Screen Set Time Screen Press to move the cursor to the next digit Press to adjust the current digit Repeat the two previous steps to adjust all time digits... -
Page 22: Setting Alarm
Setting Alarm To set an alarm, perform the following steps. From the function Menu: Press to move the cursor to display " SET ALARM " SET ALARM Press to display the Set Alarm screen Press to select the desired alarm type Set Alarm Screen (Off, 1 time, Daily) Press... -
Page 23: Setting Private Time
Setting Private Time Private Time allows you to specify a time period during which the device receives message without our an audible or vibe alert. To Set Private Time, perform the following steps. From the Function Menu: Set Private Time Screen Press to move the cursor to display "SET PRIVATE"... -
Page 24: Setting Message Alert
Setting Message Alert You can set the following message alerts: Vibe Audible Silent Chirp Vibe and Chirp In addition, you may select from 7 Pleasing Alerts. The #7 Pleasing Alert is the Continuous Alert, which alerts Set Message Alert Screen until the message is read. -
Page 25: Setting Audible On/Off
Setting Audible ON/OFF If the device alerting is audible it can be quickly toggled to vibe. From the Function menu: Press to move the cursor to display "SET AUDIBLE ON/OFF" Press to toggle the Audible Setting If the Audible On function is set ( ), the pager will alert. -
Page 26: Enabling The Display Zoom
Setting Display Zoom When this feature is enabled, the standard 6-line Display can be changed to a 3-line Display. The characters are enlarged to increase message readability. To Set the Display Zoom, perform the following steps. From the Function Menu: Press to move the cursor to display "ZOOM"... -
Page 27: Enabling The Reminder Alert
Enabling Reminder Alert When this feature is enabled and there are unread Inbox messages, the pager will alert the user with the current selected Inbox alert. The pager does not emit reminder alerts for Info Messages, or messages with no alert setting. To change the Reminder Alert Setting, perform the following steps. From the Function menu: Press to move the cursor to display "ENABLE/DISABLE REMINDER"... -
Page 28: Low Battery Alert
Low Battery Alert When the Battery capacity falls below the operational level, a Low Battery indication message will be displayed and an alert chirp will sound every hour. -
Page 29: Locking And Unlocking Messages
Locking and Unlocking Messages Up to 10 messages can be locked to prevent them from being deleted or from being replaced when the memory is full. To Lock or Unlock a message, perform the following steps. From the Inbox Folder Status Screen: Press to select the message you want to lock or unlock Press... -
Page 30: Deleting A Message
Deleting A Message To delete a single message perform the following steps. From the Inbox/Info/Saved Folder Status Screen: Press to select the message you want to delete Press and then press to move the cursor to show "DELETE" DELETE Press to delete the message Deleting All Messages To Delete all messages, perform the following steps. -
Page 31: Moving A Message To The Saved Folder
Moving A Message to the Saved Folder To move a message to the Saved Folder, perform the following steps. From the Inbox/Info Folder Screen: Press to select the message you want to move Press and then press to move the cursor to show "NOTEBOOK" NOTEBOOK Press to move the message... -
Page 32: Setting The Info Slot Alert Type
Setting the Info Slot Message Alert Type A different alert can be set for each Info Slot. To set the Info Slot Alert, perform the following steps. From the Info Folder status Screen: Press to select the Info Slot you want to set the alert for Press and then Press to move the cursor to show "SET ALERT"... - Page 33 YOU, such warranties and/or guarantees are automatically passed on to YOU without any further effort on your part or on the part of Sun Telecom International. Neither Sun T elecom International nor your wireless provider shall in any way be liable to you for any damages you suffer...
- Page 34 This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
