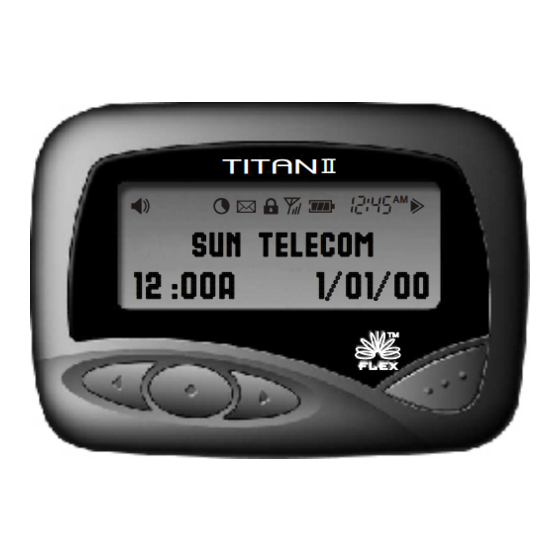

Sun Telecom TITAN II User Manual

Alpha numeric pager
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
TITAN
II
Alpha Numeric Pager
Alpha Numeric Pager
SUN TELECOM
I N T E R N A T I O N A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN II and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Telecom TITAN II

Summary of Contents for Sun Telecom TITAN II

  • Page 1 USER'S MANUAL TITAN Alpha Numeric Pager Alpha Numeric Pager SUN TELECOM I N T E R N A T I O N A L...
  • Page 2 Please read this manual carefully before using your pager for a better understanding of pager operation. SUN TELECOM I N T E R N A T I O N A L...

  • Page 3: Table Of Contents

    CONTENTS FEATURES DESCRIPTION OF INDICATORS & SYMBOLS CONTROL BUTTONS OPERATION Turning Pager On Turning Pager Off Main Screen Function Menu Screen Personal Message Screen MailDrop/ Information Message Screen NoteBook Message Screen FUNCTION MENU Reading Stored Message in the each Message Screen Setting the Time and Date Setting the Alarm Setting the Paging Alert...
  • Page 4 CONTENTS Enabling Display Zoom Setting the Scroll Mode Enabing Reminder Alert Locking and Unlocking Message Deleting A Message Deleting All Message Moving A Message to NoteBook Selecting a MailDrop Alert Type...

  • Page 5: Features

    FEATURES 4 16 Flex addresses 4 4 Line x 20 Alpha Character Display 4 20 Personal message slots 4 15 MailDrop message slots 4 10 NoteBook message slots 4 Personal Message Storage: 6400 Bytes 4 MailDrop Message Storage: 19200 Bytes 4 NoteBook Message Storage: 3200 Bytes 4 Personal Maximum Message length: 2000 Bytes 4 MailDrop Maximum Message length: 2000 Bytes...
  • Page 6 FEATURES 4 Zoom On/Off (User Selectable) 4 Marquee Scrolling (User Selectable) 4 Customer Power Up Logo (Option) 4 Battery Status Display with 3 steps using A/D 4 Real Time Clock 4 One Alarm with message 4 Message with Time, Date Stamping 4 Automatic alert reset 4 Silent (Vibrate) alert 4 User-Selectable Reminder alert (Every 2-min.
  • Page 7 FEATURES 4 Unread Message Indication 4 Continuous Message Indication (ICON) 4 Error Message Indication (with ICON) 4 All & Selective Message clear 4 Message Full Indication (with ICON) 4 Message slot number 4 Duplicated message Indication (with ICON) 4 EL Back Lighting Display 4 Out of Service Range Indication (with ICON) 4 Battery Backup 4 Self diagnostic...
  • Page 8 DESCRIPTION OF INDICATORS & SYMBOLS Indicators Audio Alert In Range or Out Range Indication Silent Alert (Vibration) Full Battery Status Enabled Alarm 2/3 Battery Status Sleep Alert 1/3 Battery Status New Page or Unread Message Low Battery Status Indication Current Time Display (24Hour) Lock Message Message Continuation Unlock Message...

  • Page 9: Description Of Indicators & Symbols

    DESCRIPTION OF INDICATORS & SYMBOLS Symbols Zoom Personal Folder Set Scroll MailDrop Folder Enable Reminder NoteBook Disable Reminder Escape Delete All Set Time Delete Set Alarm Escape Set Alert Pager Off NoteBook DESCRIPTION OF INDICATORS & SYMBOLS...
  • Page 10 DESCRIPTION OF INDICATORS & SYMBOLS Move to NoteBook Page by Page NoteBook Slot Slow Speed Unread Personal Slot Medium Speed Read Personal Slot High Speed Unread Mail Slot MailDrop Slot Read Mail Slot (Enabled Alert) Cursor Unread MailDrop Slot (Current Slot) (Enabled Alert) DESCRIPTION OF INDICATORS &...

  • Page 11: Control Buttons 1

    Used to navigate through the Function Menu and through your messages. Used to navigate through time, alarm, date setting functions. TITAN Used to enter function menu mode. SUN TELECOM SUN TELECOM 12 :00A 12 :00A 1/ 01/ 00 1 01 00 Used to turn on and off the backlight.

  • Page 12: Operation

    OPERATION Turning Pager On A start-up screen is momentarily displayed and the pager alerts the currently selected mode(Vibrator, Audio, Sleep, or Melody). SUN TELECOM SUN TELECOM 12 :00A 12 :00A 1/ 01/ 00 1 01 00 PowerUp Screen 12 :00A...

  • Page 13: Turning Pager Off 1

    OPERATION Turning Pager Off Press the button to display the Function. Press the button to move the cursor to OFF ICON. Press the button. " " is displayed. TURN PAGER OFF? TURN PAGER OFF? Press the button again to turn the pager off. Off Screen The pager is now off and the screen is blank.

  • Page 14: Main Screen 1

    OPERATION Main Screen Pressing any buttons from the Standby Screen can access the Main Screen. The Main Screen shows both the current status of message folders 12 :00A 12 :00A 1/ 01/ 00 1 01 00 (Personal /MailDrop/Notebook) and time and date. The Main Screen also displays any activated pager settings in the Main Screen split screen.

  • Page 15: Function Menu Screen 1

    OPERATION Function Menu Screen Using the Function menu, you can access to the many features of your pager . Press Button to navigate the Function menu. As you move through the Function menu, the function icons flashes to indicate the current location of the cursor. ESCAPE ESCAPE Press...

  • Page 16: Personal Message Screen 1

    OPERATION Personal Message Screen The Personal Message Screen shows the current status of personal messages with displaying the first line of your 12:07A 12:07A 1/01 1/01 message(Message Preview). P15:I Would be P15:I Would be Personal Message Screen Note: Previewing an unread message still becomes the unread one until reading it by Read button( OPERATION...

  • Page 17: Maildrop/ Information Message Screen 1

    OPERATION MailDrop / Information Message Screen The MailDrop Message Screen shows the current status of MailDrop messages with displaying the first line of your message 12:07A 12:07A 1/01 1/01 (Message Preview). 1/1: (Reuters)TheN ew 1/1: (Reuters)TheN ew MailDrop Message Screen NoteBook Message Screen The NoteBook Message Screen shows the current status of the messages with displaying the first line of your message...

  • Page 18: Function Menu

    FUNCTION MENU Reading Stored Message in the each Message Screen From the each Message screen press to move the cursor to the message you want to read. Press Button to read the message. Auto Scrolling screen by screen Press and Hold button.

  • Page 19: Setting The Time And Date 1

    FUNCTION MENU Setting the Time and Date 1) From the Function menu, press button to the cursor to display " ". SET TIME SET TIME 12 :00A 12 :00A 1/ 01/ 00 1 01 00 2) Press Button to display the Set-Time screen. 3) Press Button to move the cursor to the next digit.

  • Page 20: Setting The Alarm 2

    FUNCTION MENU Setting the Alarm 1) From the Function menu, press button to the cursor to display " ". SET ALARM SET ALARM 2) Press Button to display the the Set-Alarm screen. 12 :00A 12 :00A 3) Press Button to move the cursor . 4) Press Button to adjust the current digit or enable daily alarm.

  • Page 21: Setting The Paging Alert 2

    FUNCTION MENU Setting the Paging Alert You can set the paging alert to an audible alert, a vibrating alert, a chirp alert, a sleep alert(completely silent), one of eight pleasing alerts. 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1) From the Function menu, press button to move the cursor to display "...
  • Page 22 FUNCTION MENU Setting Display Zoom When this feature is enabled, the standard 4-line display is converted to a 2-line Display. The characters are enlarged vertically, increasing message readability. 16 16 . . 2 2 To Enable ZOOM 1) From the Function menu, press button to the cursor to display "...
  • Page 23 FUNCTION MENU Setting the Scroll Mode 1) From the Function menu, press button to the cursor to display " ". SET SCROLL SET SCROLL PAGE BY PAGE PAGE BY PAGE 2) Press Button to enter this mode. Set Scroll Mode Screen To Enable page by page display mode 1) From the Set Scroll Mode Screen, press button to the cursor to display...
  • Page 24 FUNCTION MENU Enabling Reminder Alert When this feature is enabled and there are any unread messages, the pager alerts with short beep or vibration depending on the current personal alert type. To Enable Reminder Alert 1) From the Function menu, press button to the cursor to display "...
  • Page 25 FUNCTION MENU Locking and Unlocking Messages Up to 10 message can be locked to prevent them from being deleted or from being replaced when memory is full. To Lock/Unlock a Message 1) From the Personal Message Status Screen, Press button to select the message you want to lock or unlock. 2) Press Button and then press Button to move...
  • Page 26 FUNCTION MENU To Delete One Message 1) From the Personal Message Status Screen, press button to select the message you want to delete. 2) Press Button and then press Button to move the cursor to show " " . DELETE DELETE 3) Press Button.
  • Page 27 FUNCTION MENU Moving A Message to NoteBook 1) From the Personal/MailDrop Message Status Screen, press Button to select the message you want to move. 2) Press Button and then press Button to move the cursor to show " ". NOTEBOOK NOTEBOOK 3) Press Button.
  • Page 28 FUNCTION MENU You can select the MailDrop Alert T ype. 1) From the Mail Message Status Screen, Press Button to select the message you want to set alert. 2) Press Button and then Press Button to move the cursor to show " ".
  • Page 29 MEMO SUN TELECOM I N T E R N A T I O N A L MEMO...
  • Page 30 DECLARATION OF CONFORMITY PRODUCT NAME : TITANII MODEL NUMBER : HPA-550 FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE FCC COMPLIANCE STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 INFORMATION TO USER: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 32 The party responsible for product compliance SUN TELECOM I N T E R N A T I O N A L 11321 Decimal Drive Louisville, KY 40299...

This manual is also suitable for:

Hpa-550
