Sun Telecom Flex T5 User Manual

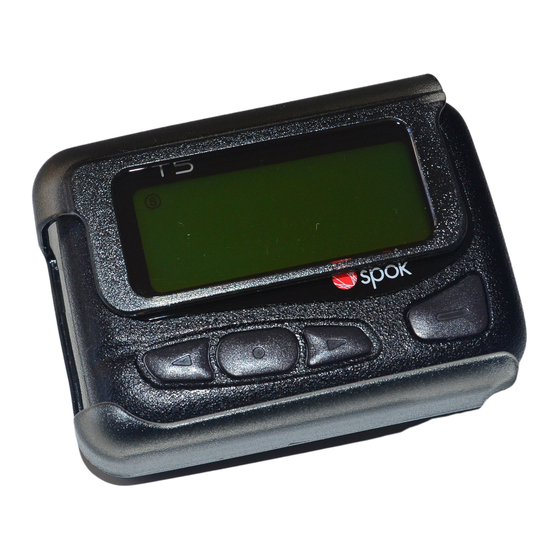

Sun telecom flex t5 alphanumeric pager
Hide thumbs
Table of Contents

Advertisement

Quick Links

[ T 5 ]
Alphanumeric Pager
Ver. 11/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flex T5 and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Telecom Flex T5

Summary of Contents for Sun Telecom Flex T5

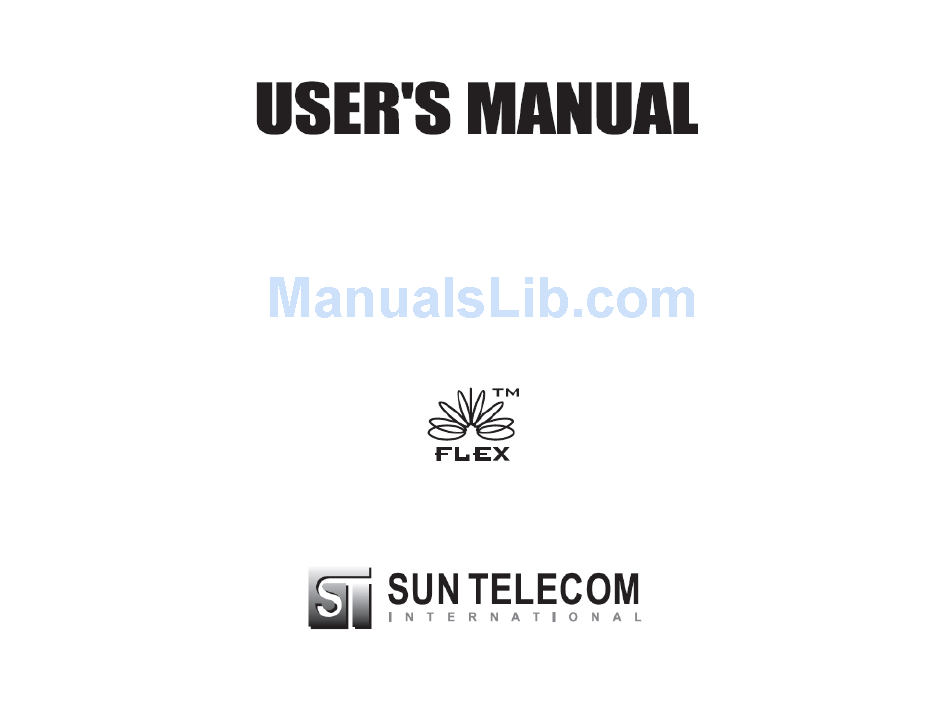

  • Page 1 [ T 5 ] Alphanumeric Pager Ver. 11/14...

  • Page 2: Table Of Contents

    CONTENTS FEATURES DESCRIPTION OF INDICATORS & SYMBOLS CONTROL BUTTONS OPERATION Turning The Pager On / Off Main Screen Function Menu Screen Inbox Message Screen Info Message Screen Saved Message Screen FUNCTION MENU Reading a Stored Message in each Message Screen Setting the Time and Date Setting the Alarm Setting the Paging Alert...

  • Page 3: Features

    FEATURES • Encrypted Message (AES-128) Support • Automatic Alert Reset • 16 Flex addresses • 1 Beep, 7 Different pleasing Alerts, a Chirp, Vibrate, Sleep • 4 Line x 20 Alpha Character Display • User-Selectable Reminder Alert • 20 Inbox Message Slots •...

  • Page 4: Description Of Indicators & Symbols

    DESCRIPTION OF INDICATORS & SYMBOLS Indicators Audio Alert Full Battery Status Silent Alert (Vibration) 2/3 Battery Status Enabled Alarm 1/3 Battery Status Private Time Enabled Low Battery Status Message Continuation New Page or Unread Message Indication Lock Message Power On Unlock Message Note: When the battery is low the pager will alert with a short chirp at the top of every hour.
  • Page 5 DESCRIPTION OF INDICATORS & SYMBOLS Symbols (Message Status) Inbox Folder Move to NoteBook Info Folder Saved Slot Saved Folder Unread Inbox Slot Read Inbox Slot Delete All Read Info Slot Delete Unread Info Slot Cursor (Current Slot) Message Full Escape...
  • Page 6 DESCRIPTION OF INDICATORS & SYMBOLS Symbols (Function Menu) Escape Zoom Set Time Pager Off Set Alarm Disable Reminder Set Alert Enable Reminder Set Info Alert Set Private Set Audible ON Set Lock Set Audible OFF...

  • Page 7: Control Buttons

    CONTROL BUTTONS • Use to navigate through the Function menu and through your messages. • Use to navigate through time, alarm, and date setting function • Use to enter the Function menu mode. • Use to turn the Backlight off. • Use to exit to current Function mode. •...

  • Page 8: Operation

    OPERATION Turning the Pager On Press for two (2) seconds to turn the pager on. A start-up screen is momentarily displayed and the pager SPOK alerts the currently selected alert-mode. 12:00A 1/01/15 (Vibrator, Audio, Sleep) PowerUp Screen Turning the Pager Off Press button to display the Function menu.

  • Page 9: Main Screen

    OPERATION Main Screen Pressing any of the buttons on the Standby Screen will provide access to the Main Screen. The Main Screen shows both the current status of message folders (Inbox / Info / Saved) and the time and date. 12:00A 1/01/15 The Main Screen also displays any activated pager settings...

  • Page 10: Function Menu Screen

    OPERATION Function Menu Screen The Function Menu provides access to the many features incorporated in the T5. As you navigate through the Function menu, the Function Icon will reverse to indicate the current location of the cursor. SET AUDIBLE OFF Press to navigate through the Function menu.

  • Page 11: Info Message Screen

    OPERATION Info Message Screen The Info Message Screen shows the current status of Info messages by displaying the first line of your message. (Message Preview) Info Message Screen Saved Message Screen The Saved Message Screen shows the current status of the messages by displaying the first line of your message.

  • Page 12: Function Menu

    FUNCTION MENU Reading Stored Message in each Message Screen From each Message screen press to move the cursor to the message you want to read. Press button to read the message. Auto Scrolling Screen by Screen Press and hold button. Reading Previous or Next Message Press button.

  • Page 13: Setting The Time And Date

    FUNCTION MENU Setting the Time and Date From the Function menu, press to move the cursor to display "SET TIME". Press to display the Set Time screen. 12:00A 1/01/15 Press to move the cursor to the next digit. Press to adjust the current digit. Set Time Screen Repeat the two previous steps to adjust all time digits.
  • Page 14 FUNCTION MENU Setting the Paging Alert You can set the paging alert to an audible alert, a vibrating alert, a chirp alert, a sleep alert(completely silent), or one of seven other alerts. From the Function menu: Set Alert Screen Press to move the cursor to display SET ALERT".

  • Page 15: Setting The Paging Alert

    FUNCTION MENU Setting the Audible On/Off The alert can be set as either audible on or off. Press to display the function menu. Press to move the cursor to symbol is displayed if the pager is in the audible off mode(prompting you to enter the audible on mode, if desired).
  • Page 16 FUNCTION MENU Setting Display Zoom When this feature is enabled, the standard 4-line Display is converted to a 2-line Display. The characters are enlarged to increase message readability. From the Function Menu: Press to more the cursor to display "ZOOM". Press to display the Zoom screen.

  • Page 17: Enabling The Display Zoom

    FUNCTION MENU Enabling Reminder Alert When this feature is enabled and there are unread Inbox messages, the pager will alert the user with a short beep or vibration depending on the current Inbox alert type or Audible mode. The pager does not emit reminder alerts for Info messages, or messages with no alert setting.

  • Page 18: Locking And Unlocking Messages

    FUNCTION MENU Locking and Unlocking Messages Up to 10 messages can be locked to prevent them from being deleted or from being replaced when the memory is full. To Lock/Unlock a Message From the Inbox Message Status Screen, press to select the message you want to lock or unlock.

  • Page 19: Deleting Message

    FUNCTION MENU To Delete One Message From the Inbox Message Status Screen, press to select the message you want to delete. Press and then press to move the cursor to show "DELETE". Press to activate the setting. To Delete All Messages From the Inbox / Info / Saved Message Status Screen, press to select the message you want to delete.

  • Page 20: Moving A Message To The Saved Folder

    FUNCTION MENU Moving A Message to the Saved Folder From the Inbox / Info Message Status Screen, press to select the message you want to move. Press and then press to move the cursor to show "NOTEBOOK". Press to activate the setting. To Move a message while reading it, follow the last 2 steps above while the message is displayed.

  • Page 21: Display Lock

    FUNCTION MENU Display Lock From the Function menu, press to move the cursor to display "SET LOCK". _ _ _ _ Press to display the Set Lock screen. SET LOCK Press any button to set lock. (Repeat four (4) times) Press to activate the lock.
  • Page 22 Sun Telecom International hardware. In as much as the wireless data service provided, we cannot guarantee or warrant that the wireless data service will always be available or will always function properly.
  • Page 23 INFORMATION TO USER: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 24 INSTALLATION AND OPERATING INSTRUCTIONS: This Equipment Is Suitable For Use In Class I, Division 2, Groups A, B, C and D Or Non-Hazardous Locations Only. WARNING - EXPLOSION HAZARD Substitution Of Components May Impair Suitability For Class I, Division 2. AVERTISSEMENT - Risque d’explosion la substitution de composants peut compromettre la convenance pour la Classe I, Zone 2 ou pour la Classe I, Division 2.
