In normal observation mode, press the Preview
The saved image will be shown on the screen. The up/down and tool buttons can be used to
change pages and erase the image. Press the Preview button again to exit this mode.
Dual Window Compare:
While in Preview mode, press the SET button to enter the Compare mode. The recalled image will
appear in the left window and the targeted image will be shown in the right window. Press SET
button again to leave this mode.

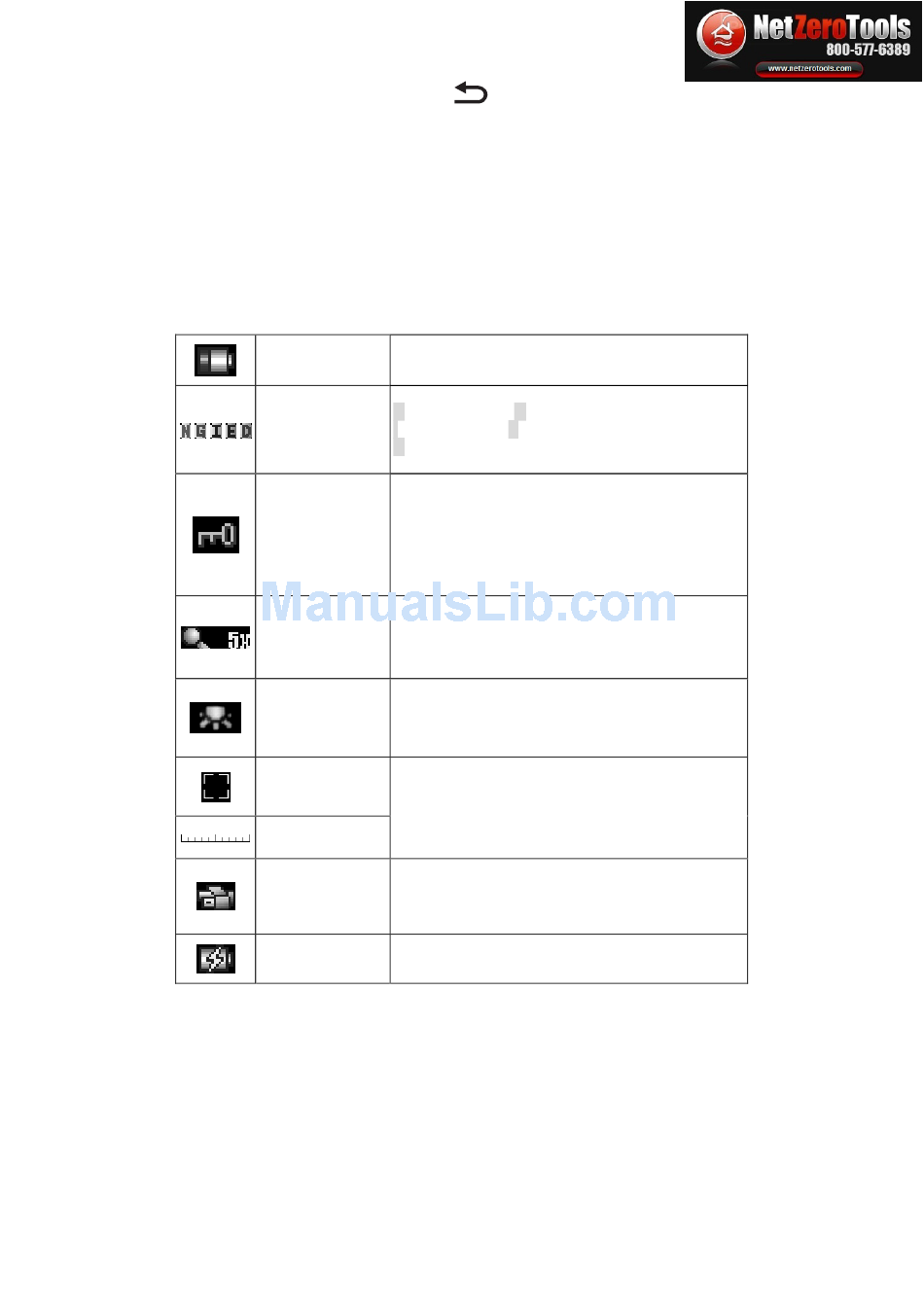

Status
netzerotools.com
Battery Low Battery power is low.
N: Normal Mode G: Gray Mode
Image Effect I: Inverse Mode E: Emboss Mode
D: Dual Window View Mode
When in Dual Window View mode or Dual Window
Compare mode. Pressing Confirm button will enter
Freeze
Freeze mode. Press Confirm button again to leave
Freeze mode.
Current magnification rate is shown when the
Magnifying
indicator is located at text 7 and 27.
Image Quality and
Three levels of adjustment.
LED Brightness
Frame-center
Hold the Special Effects button for 3 seconds to
switch between frame-center mark and ruler.
Ruler
Power Supply Power is supplied by USB cable to PC or an
by USB or adapter adaptor. .
Charging Recharging batteries engaged.
6
netzerotools.com
button to recall a saved image.
MC108-EU-EN-V2.2-4/12
