- Page 1 User's Guide Mini Microscope Model MC108...
- Page 2 • Do not remove power/batteries when Microscope is on. Doing so may cause information loss or circuit damage. • To dispose of the battery, follow local regulations regarding lawful disposal of hazardous materials. MC108 V1.1 2/09...
-
Page 3: Operation

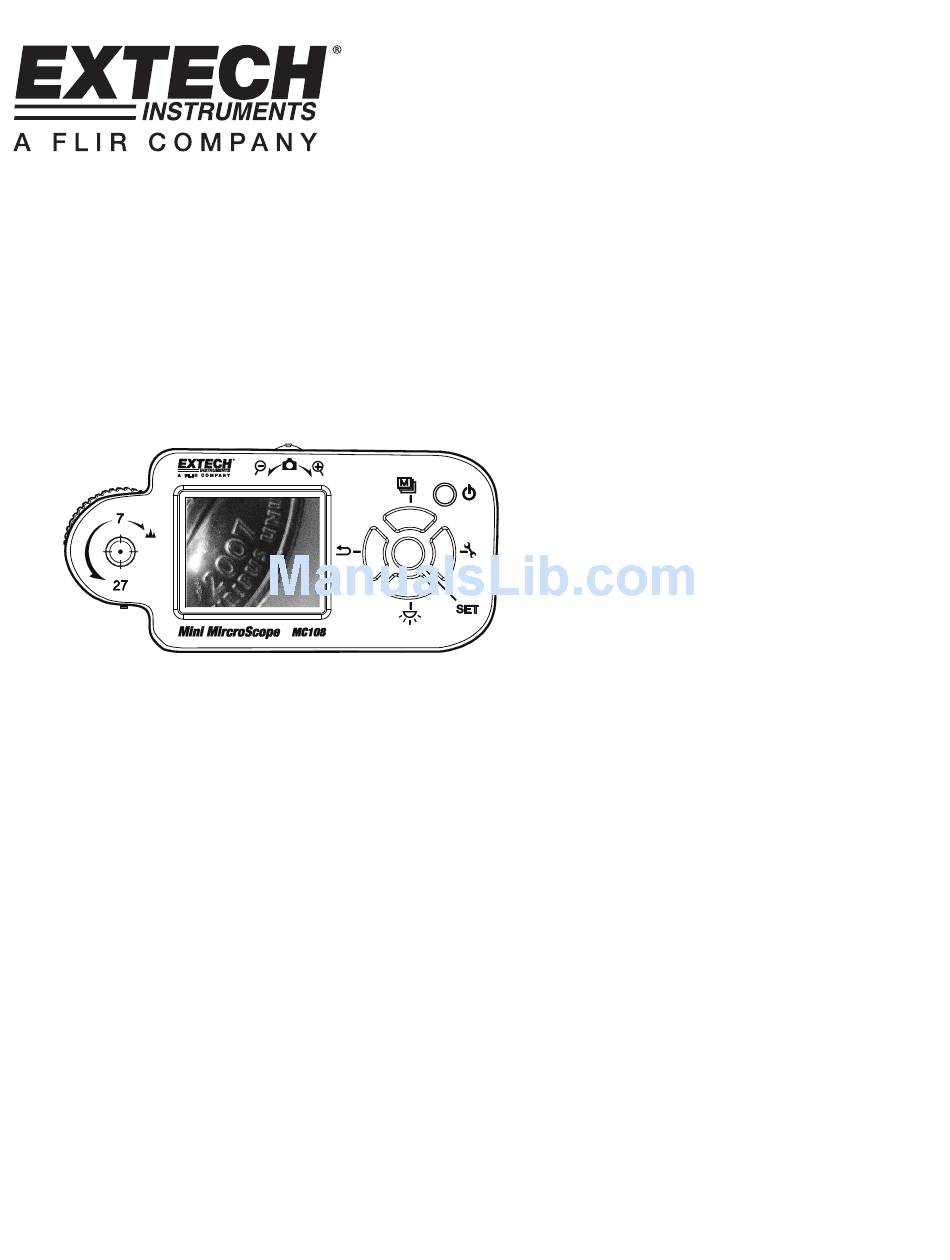

Press the save button, or zoom wheel, to capture images for purposes of recording. Controls 1. Optical zoom/focus 2. Aiming mark 3. Display 4. Zoom/ Snapshot 5. Return/Preview 6. Special effects/Up 7. Power 8. Tools 9. Brightness 10. Set/Save/Compare 11. Indicator Optical Zoom/Focus dial MC108 V1.1 2/09... - Page 4 Press this button to change LED brightness. This button can also be used to turn off the illumination LED. Return/Preview: In a normal mode, press this button to enter Preview Mode. When in other modes, press this button to return to normal mode. MC108 V1.1 2/09...
- Page 5 The ruler is shown only when the indicator is located at text 7 & 27. It is intended for user’s convenience, not for scientific accuracy. For Example: The value of the ruler is 0.5mm for 10 lattice. Each small lattice is 0.05mm. The scale is not exact due to the variable distance from lens to image MC108 V1.1 2/09...
- Page 6 Hold the Special Effects button for 3 seconds to switch between frame-center mark and ruler. Ruler Power Supply Power is supplied by USB cable to PC or an by USB or adapter adaptor. . Charging Recharging batteries engaged. MC108 V1.1 2/09...
- Page 7 The download procedure may take some time depending on the number and size of pictures committed for storage. Click the icon, then the image will upload from PC to the microscope. The image size is limited to 320x240 pixels standard jpg compressed format. MC108 V1.1 2/09...
- Page 8 3 to save the display image to PC. Click the icon to leave Continuous Image Transfer mode. Figure 3. Click the icon will disconnect the microscope from the PC. Click the icon will leave the program. MC108 V1.1 2/09...
-
Page 9: Specifications
For the latest version of this User Guide, Software updates, and other up-to-the-minute product information, visit our website: www.extech.com Extech Instruments Corporation, 285 Bear Hill Road, Waltham, MA 02451 Copyright © 2009 Extech Instruments Corporation (a FLIR company). All rights reserved including the right of reproduction in whole or in part in any form.
