Using a Hercules DJ Console MK2 with DJ-1800

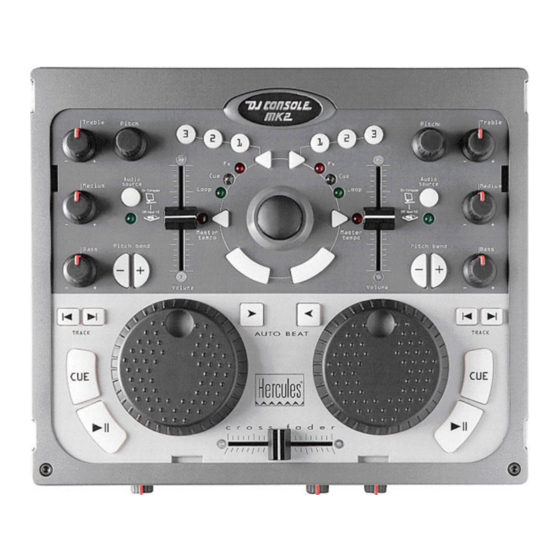

The Hercules DJ Console MK2 -

http://www.hercules.com/uk/DJ-Music/

- is a small but full-featured DJ controller

and 4-channel input / 4-channel output sound card. It includes 2 sets of controls, which can be used to control

CD Players 1 and 2 in DJ-1800. They can even be used to control DJ-1800 when it is in the background. The

Console also features an amplified headphone output and a microphone 'talkover' input.

To use a Hercules DJ Console MK2 – or "HDJC" - with DJ-1800 v3.0 or later under OS X, first install the "Mac OS X

driver package for DJ Console MK2". This documentation has been written using v3.0 of the driver package

(released 2006-12-05), which is available from the Hercules support web site:

http://ts.hercules.com/eng/index.php?pg=view_files&gid=2&fid=28&pid=200&cid=1

Once the drivers are installed, plug the HDJC into your Mac, and then launch DJ-1800. The lights on the HDJC

will flash on and off to indicate that the console has been recognized by DJ-1800.

Note: This documentation describes the set up process for the "Hercules DJ Console MK2". If you are using the

original "Hercules DJ Console (Mac Edition)", or the "Hercules DJ Control MP3", please see the appropriate

documentation for those controllers, which can be downloaded from

http://www.dj1800.com/controlhardware.php.

1 of 4

Page

Need help?

Do you have a question about the DJ Console MK2 DJ-1800 and is the answer not in the manual?

Page 1 Console also features an amplified headphone output and a microphone ‘talkover’ input. To use a Hercules DJ Console MK2 – or “HDJC” - with DJ-1800 v3.0 or later under OS X, first install the “Mac OS X driver package for DJ Console MK2”. This documentation has been written using v3.0 of the driver package (released 2006-12-05), which is available from the Hercules support web site: http://ts.hercules.com/eng/index.php?pg=view_files&gid=2&fid=28&pid=200&cid=1...
Page 2 Using a Hercules DJ Console MK2 with DJ-1800 Hercules DJ Console MK2 controls for DJ-1800 Name on Equivalent to layout above Track |< Clicking on “Prev Track” button on the CD player Track >| Clicking on “Next Track” button on the CD player Pitch Bend - Clicking on the “Pitch Bend –“...
Page 3 Using two devices with DJ-1800 If you have two Hercules DJ Control MP3 or Hercules DJ Console MK2 devices, or one of each device, then you can use the two devices to control all four of DJ-1800’s on-screen CD Players. Simply plug both devices into your Mac and launch DJ-1800.
Page 4 To use this device for audio output, select channels 3+4 for Master output, and channels 1+2 for Cue output, in DJ-1800’s “Dual + Mixer” mode. This is shown in the picture below. Be sure to select the output device named “Hercules DJ Console Mk2”, and not the device named “Hercules DJ Console Mk2 Aggregate”.
