Lincoln Electric LN-23P Technical Specifications

LN-23P Wire Feeder
The LN-23P semiautomatic wire feeder is able to handle the
toughest work sites and is an excellent choice for field erection
and pipe welding applications. It is portable, easy to set-up, and
ideal for reaching difficult locations. The LN-23P utilizes special
lightweight 14 lb. (6.35kg) Innershield (FCAW-S) coils, making it
extremely easy to carry around the job site, and has a built-in
dual wire feed speed switch for out-of-position welding.
Technical Specifications
Product Product
Name Number
Input
Power Rated Current / Duty Cycle
SEMIAUTOMATIC WIRE FEEDERS
• 25 ft. (7.6m) Control Cable
• 25 ft. (7.6m) 1/0 Electrode Cable
• 3/32" Drive Rolls and Guide Tubes
LN-23P Adapter Kit (K350 or K350-1)
Magnum Self-Shielded Gun (K355-10 or K345-10)
CV-300, CV-400, CV-655, DC-400, DC-600, DC-655,
Ranger 250, Ranger 305, Commander 300, Commander 500
The Following Require Wire Feed Module (K632-1):
Pipeliner 200, SA-250, Classic II, Classic 300
The Following Require CV Adapter (K385-1):
SAE-400, SAE-400 Weld 'N Air
K316L-1 LN-23P
Wire Feed Speed Wire Size
Range Range
ipm (m/min) in. (mm)

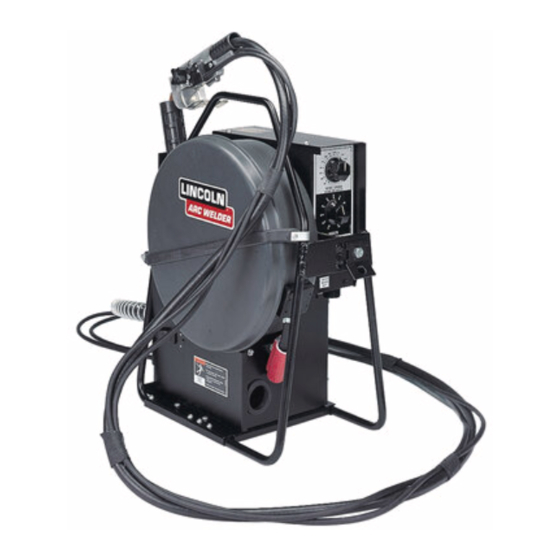

Shown with required option -
Magnum self-shielded gun.
Dimensions Net
H x W x D Weight
in. (mm) lbs. (kg)
www.lincolnelectric.com
E8.90 12/02
