Summary of Contents for Bush BAS520BT
-
Page 1: User Manual

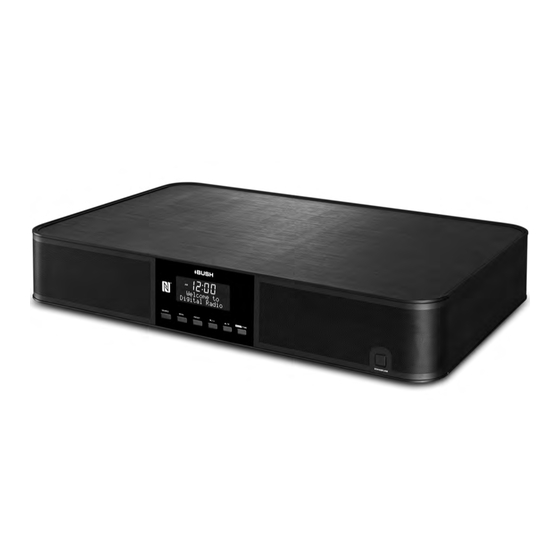

TV SOUND BASE WITH DAB+ RADIO AND BLUETOOTH STREAMING BAS520BT USER MANUAL... -
Page 2: Important Safety Instructions
BAS520BT Important Safety Instructions 1. Read these instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use the speaker near water. 6. Clean only with dry cloth. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE. -
Page 3: Fcc Information
BAS520BT FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Table Of Contents
BAS520BT Contents Important Safety Instructions ....................2 FCC Information ........................3 Contents ..........................4 Getting Started ........................5 Front View ......................... 6 Back View ......................... 6 Remote Control ......................... 7 DAB+ Mode ........................... 8 Station List ........................8 Full Scan ........................... 8 Storing Preset Stations ...................... -
Page 5: Getting Started
BAS520BT Getting Started Carefully remove your Sound Base from the box. You may want to store the packaging for future use. What you can find inside the package Main unit x1 AC power cord x1 DAB+/FM antenna x1 Remote control x1 + AAA alkaline battery x 2... -
Page 6: Front View
BAS520BT Front View Left speaker grill button NFC for Bluetooth connection Press to upwards browse options in SOURCE button menu screen. Press to switch among DAB+, FM, Press to decrease volume level when a Bluetooth, AUX IN1 Input, AUX IN 2 program/track is playing. -
Page 7: Remote Control
BAS520BT Remote Control button Press to switch unit on or standby. SELECT button Press to confirm your selection. buttons Press to browse options. VOL +/- buttons Press to adjust volume. INFO button Press to view station information. MENU button Press to display menu options. -
Page 8: Dab+ Mode
BAS520BT DAB+ Mode When the first time you turn on the unit it will automatically search and store all the available stations. You should conduct an additional Full Scan to ensure all stations are picked up and stored. It is also recommended every few months to run a new scan to pick up any new DAB+ that may have begun broadcasting after purchasing your unit. -
Page 9: Recalling Preset Stations
BAS520BT Press button to select among preset numbers 1-10. Press SELECT button to confirm, the LCD display shows ‘Preset # stored’. Recalling Preset Stations Note: This is the same for DAB+ and FM stations. Press SOURCE button to select the mode (DAB+ or FM) you want to play. -
Page 10: Fm Mode
BAS520BT FM Mode Selecting FM Mode 1. Press SOURCE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Or it will play the last FM station you were listening to. -
Page 11: Bluetooth Mode
BAS520BT Bluetooth Mode The unit has a Bluetooth function that can receive a signal approx. within 10 meters. Pair the unit with a Bluetooth device to listen to music: Press SOURCE button repeatedly to select Bluetooth mode. The LCD display will show ‘BT Ready’. -
Page 12: Aux In Input
BAS520BT Aux In Input This feature enables the unit playing sound from your audio device. Before connecting to the mains socket, connect the Red(L) and Black(R) plugs at the end of the RCA cable (not supplied) to the AUX IN 1 socket which is located on the back of this unit. -
Page 13: General Operations
BAS520BT General Operations Setting Sleep This function enables the unit to switch to standby mode by itself after a set sleep time. 1. Press MENU button and then press button to select Sleep, press SELECT button to confirm. 2. Press button to view options Sleep off, 15, 30, 45, 60 and 90 minutes, and then press SELECT button to confirm. -
Page 14: Setting Equaliser
BAS520BT Setting Equaliser This feature enables you to choose a sound equalization profile. Each of the equalization setting will change the tone of the sound from your unit when selected. Press MENU button and then press button to select Equaliser, press SELECT button to confirm. -
Page 15: Factory Reset
BAS520BT Factory Reset Doing a factory reset resets all user settings to default values, so time/date, alarm settings and presets are lost. Press MENU button and then press button to select Factory Reset, press SELECT button to confirm. Press button to select 'Yes', and then press SELECT button to confirm. -
Page 16: Specification
BAS520BT Specification ITEMS SPECIFICATIONS SOUND BASE WITH DAB+ RADIO AND BUILT-IN Description: SUBWOOFER DAB+: 174.928 – 239.200MHz Frequency Ranges: FM: 87.5-108MHz Power Supply: AC Input: 100-240Vac, 50-60Hz Audio Output Power: 20W rms x 4 + 40W rms subwoofer Power Consumption:... -
Page 17: Your Warranty
For more information and support visit: www.bushaustralia.com.au YOUR WARRANTY For any Warranty Enquires, please call: 1300 055 518 Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
