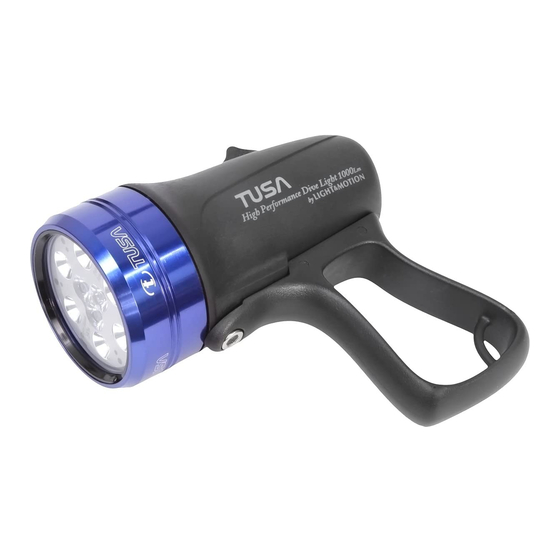

Tusa TUL-1000 Owner's Manual

• Please note: opening your TUL-1000 bezel will void your warranty. Your TUL-1000 is factory sealed and does not require you to service the o-ring.

Standard Warranty

TUSA provides a limited warranty to the original purchaser of its products against all defects in original workmanship and material, under normal use and service, for
one year from the date of purchase with the following exceptions:
• All warranties void if bezel opened • Batteries are warranted for 90 days • Cosmetic discoloration of surfaces
TUSA will not be liable for any further loss, damages, or expenses, including incidental or consequential damages directly or indirectly arising from the sale or use of
this product. Products not manufactured by TUSA are not covered under the TUSA warranty. These products are covered by the Terms and Conditions set forth by their
respective manufacturers.
Important Information:
• Always store your light fully charged • Always lock the control switch of the light when traveling or in storage • Never leave your equipment in the rinse bucket. It
may be damaged by other equipment • Rinse equipment in fresh water after every dive

Dashboard

Charge Status
Green = 100%
Blink Green = 75% - 99%
Blink Yellow = 50% - 75%
Blink Red = 0% - 50%

Battery Status:

• Battery status is most accurate after full discharge and full charge cycle.
Green = 100% - 75%
Yellow = 75% - 50%
Red =
50% - 25%
Blink Red = < 25%
Universal charger 110v - 240v
Charge time 75% in 60 min, 100% in 150 min
• Align guide pin to connect charger.

Brightness Indicator:

Full Brightness
65 min. Flood
70 min. Spot
1/2 Brightness
130 min. Flood
140 min. Spot
1/4 Brightness
260 min. Flood
280 min. Spot
