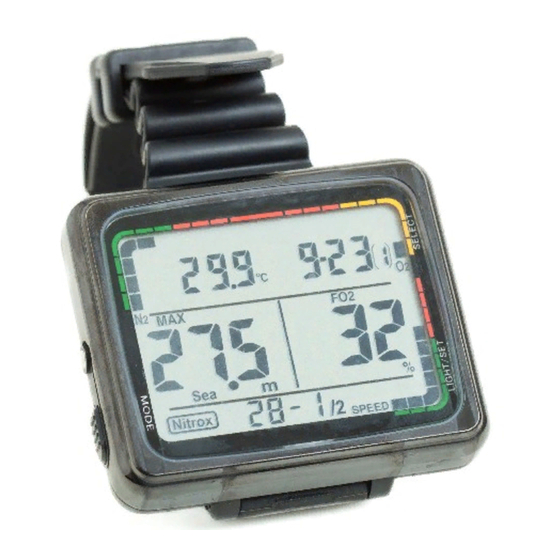

Tusa IQ-800 Manual
  1. Manuals
  2. Brands
  3. Tusa Manuals
  4. Diving Instrument
  5. IQ-800
  6. Manual

Tusa IQ-800 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
3
4
4
4
7
8
10
12
14
20
22
23
24
35
37
37
38
38
39
43
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ-800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tusa IQ-800

Summary of Contents for Tusa IQ-800

  • Page 1: Table Of Contents

    Contents IQ-800 Flow Chart 1. Introduction 2. Key Features 3. Common Sense Warnings 4. Accessing Display Modes 5. Time Mode 6. Dive Set Mode 7. Dive Plan Mode 8. Dive Log Mode 10. Dive Profile Mode 11. PC Transfer Mode 12.
  • Page 2 DC-Sapience Selected display features Decompression stop violation Ascent rate indicator Decompression time Ascent rate warning Decompression depth Low battery warning Date, safety stop time Altitude setting Residual nitrogen bar graph Set, backlight button (C) Don’t fly icon , NDL time, dive time Current time icon Total dive time, current depth...

  • Page 3: Iq-800 Flow Chart

    IQ-800 Flow Chart rev.7改 2004.2.27 TIME MODE Actual Size ‑ Select key ‑ B Key hold E Switch B Key release B Key or C Key：       EL on 5s Non Residual Nitrogen Residual Nitrogen B+C Key：Alarm audition ‑ Mode key ‑ ‑ Set key ‑ A Key LOG MODE DIVE SET MODE PLAN MODE B Key：Select C Key：Set B Key：Select     A Key A Key C Key：Set C Key Hold: B+C Key 5〜6sec：    Set(Fast Scrolling)        FT/m change FO2→USF→SOUND/VIBE→Sea/Fresh→ SURF.T→DEPTH RANK→ B Key C Key PC TRANSFER MODE HISTORY MODE PROFILE MODE...

  • Page 4: Introduction

    1. Introduction Congratulations on your choice of the TUSA IQ-800 Dive Computer. The IQ-800 is a compact and sophisticated dive instrument that will give you reliable, trouble free performance, dive after dive. The information in this manual has been developed for your safety.
  • Page 5 It is not intended for use by persons who lack the qualifications, and thus may not be able to identify, assess, and manage the risks scuba diving entails. Use of the IQ-800 in conjunction with Enriched Air Nitrox (EANx) further requires that the diver be trained and certified for Nitrox diving.
  • Page 6 WARNINGS The IQ-800 is designed to be used by only one diver at a time. Divers should not share a single IQ-800, or any dive computer, on the same dive. Additionally, no diver should lend his or her IQ-800 to anyone else until it calculates that no measurable residual nitrogen remains after previous dives, and displays neither the “Desaturation Time”...

  • Page 7: Accessing Display Modes

    Time Mode. To access other modes, you may need to push one of the three large buttons on the sides of the IQ-800. These are the A, B, and C buttons. (Fig. 1) You will find these buttons easy to use. In some instances, you may need to press a button once and release it to achieve the desired result.

  • Page 8: Time Mode

    5. Time Mode Time mode is the IQ-800’s default mode. In this mode the screen displays a minimum of the current date and time of day. Within 24 hours of surfacing from a dive, the IQ-800 will display additional information while in Time Mode. A description of the screens is shown below.
  • Page 9 Operation of buttons during Time mode Prior to a dive The letters correspond to the buttons of the IQ-800 shown in figure 1. • A button: Press this button to move to dive set mode. • A button held for 2-3 seconds: Moves to time mode.

  • Page 10: Dive Set Mode

    6. Dive Set Mode To enter Dive Set mode from Time mode, press the A button until "D- SET" is shown on the display. Note: If the surface interval is less than 10 minutes the computer will not enter this mode. The computer will switch to dive plan mode. Dive Set Mode Warning Operation User Safety Factor...
  • Page 11 Operation of buttons during Dive Set mode. • Β: Press the B button to select the function you would like to modify. • C: Use this button to change the value of the selection. If held down during the FO selection the value will scroll rapidly in one percent increments.

  • Page 12: Dive Plan Mode

    7. Dive Plan Mode To enter Dive plan mode from Time mode, press the A button until "PLAN" is shown. Note: This mode cannot be entered if the computer is in an out of measurement range lock or a decompression stop violation lock. In both instances the computer will skip to the dive log mode.
  • Page 13 Surface Time Setting NDL (no decompression limit time) Figure 5 Mode Depth Setting NDL (no decompression limit time) Depth rank Figure 6 Mode Operation of buttons during dive plan mode • A: Use this button to move to dive plan mode. If the button is held down for 2 to 3 seconds the computer will return to time mode.

  • Page 14: Dive Log Mode

    8. Dive Log Mode To enter Dive log mode from Time mode, press the A button until “LOG” is shown. Description of the Dive Log functions The Dive log mode records various data during a dive when the dive depth is at least 5 feet (1.5m) and the dive time is at least 3 minutes. Data is recorded during each successive dive, and the log data storage capacity is about 30 hours of dive time, or up to 60 log data entries.
  • Page 15 • Average depth: This is the average water depth during the dive. If the depth is over 328 ft (99.9m), the display is ‘---’. • Maximum depth: This is the maximum depth recorded during a dive. If the depth is over 328 ft (99m) the display is ‘---’. •...
  • Page 16 Warning Displays: These are warnings that can occur during a dive. For further description of these warnings see the "dive mode" section. Alarm Displays Ιf the following warnings occur during dive mode they are stored in memory and displayed. Ascent rate warning: If the ascent rate warning is activated it is recorded in the log.
  • Page 17 warning: The PO icon blinks if the warning was active during the dive. (Fig. 12) Icon Blinks Figure 12 OLI warning: If the OLI reaches 8 bars, the warning is stored in memory and displayed in log mode. (Fig. 13) OLI Bar Icon Blinks Figure 13 Decompression dive warning: If the dive enters decompression,...
  • Page 18 Out of Measurement Range warning: If the computer entered out of range during the dive, then the event is recorded in memory and the entire display will blink during the log mode. (Fig. 15) All Segments Blink Figure 15 Operation of buttons during Log mode •...
  • Page 19 9. Dive History Mode The IQ-800 records the total number of dives, maximum depth, and total accumulated dive time in HISTORY mode. (Fig. 16,17) To enter HISTORY mode from Time mode, press the A button until the display says “HIST”.

  • Page 20: Dive Profile Mode

    10. Dive Profile Mode Log Date Number of Dives on that Date Maximum Depth of Profile Dive Time Figure 18 Description of the Dive Profile mode. Dive profile mode provides functions for recording various data during a dive when the dive depth is at least 5 feet (1.5m) and the dive time is at least 3 minutes.
  • Page 21 Operation of buttons during Profile mode. From TIME mode press the A button until "PROFILE" is displayed. • Auto count up dive time: The display automatically increases the dive time. • A: Press and hold this button to stop the auto rank increment function for profile data.

  • Page 22: Pc Transfer Mode

    11. PC Transfer Mode If surface time is less than 10 minutes after a dive, and there is no log and profile data, the computer will move to Time mode. (Fig 19,20) Normal No Data Figure 19 Figure 20 Description of display during PC transfer mode •...

  • Page 23: Time Set Mode

    12. Time Set Mode Note: If surface interval time is less than 10 minutes after a dive, the computer will not enter this mode. (Fig. 21) Description of display during Date and Time set mode • Current time: This is the current time of day. •...

  • Page 24: Dive Mode

    The IQ-800 will switch automatically to TIME mode after 48 hours have elapsed. This information is recorded in the dive log. The IQ-800 can only switch to log, profile, or PC transfer mode while the calculations have stopped. (Fig. 23)
  • Page 25 NDL display appears again. The timer is reset if the depth becomes equal to or more than 33 feet (10 m). (Fig. 24) If the diver doesn’t follow the safety stop information, the IQ-800 doesn’t impose any penalty. Safety Stop...
  • Page 26 B button When the user pushes and holds button B during a dive, it displays an on demand data screen that shows the temperature, the maximum water depth, the FO and PO . (Fig. 25) On Demand Display Water temperature Figure 25 Maximum Water Depth Out of measurement range condition...
  • Page 27 Display description during Dive mode • NDL (No Decompression Limit): This is the diving time possible for a non-decompression dive at the current depth. • Current depth: This indicates the current water depth. The water depth is measured every 1 second. If depth is over 328 feet (99.9m) the display is ‘---’.
  • Page 28 Do not use your IQ-800 without confirming that its FO2 setting accurately matches that of your breathing media. Failure to do so may mean that your IQ-800 will be unable to accurately monitor your exposure to nitrogen and oxygen, and lead to decompression illness (DCI) or CNS Oxygen Toxicity, conditions that can cause serious person injury or death.
  • Page 29 4-5 seconds. • C: Turns the back light on from 4-5 seconds. Ιn less than 5 feet (1.5 m) of water the IQ-800 moves to time mode. Decompression • A: The back light is on from 4-5 seconds.
  • Page 30 Warning Screens The following warning screens may appear during a dive. If a warning appears the diver should take immediate action to correct the warning. Ascent Rate warning: If the ascent rate is exceeded, the SLOW icon, current depth, ascent rate bar graph, and SLOW mode icon will blink.
  • Page 31 • Decompression stop violation warning: When current depth is shallower than the indicated decompression stop depth, the IQ-800 will alert the diver with the display and the alarm. If the diver returns to the indicated water depth, the warning display stops blinking. This information is recorded in the dive log.
  • Page 32 • Oxygen Limit Indicator warning: When the OLI graph reaches 7 or 8 bars, the IQ-800 responds with a flashing display and the alarm. There are two types of warnings, as described below. (Fig. 31) 7 bars displayed: The OLI bar graph will blink for 15 seconds.
  • Page 33 The warning is recorded in the log. (Fig. 33) Figure 33 WARNING An IQ-800 displaying an “Out of Range” warning is incapable of displaying other critical information such as depth, time, ascent rate, , OLI, and deco stop violations, and required decompression stops.
  • Page 34 Safety Stop warning: There are two types of safety stop warnings. The diver is alerted to the start of the safety stop by a blinking stop icon and SAFE indicator. If the safety stop has started and the depth becomes less than 5 feet (1.4m), the remaining stop time will also blink.

  • Page 35: Altitude Setting

    Time Mode and Plan Mode (In Dive Log mode the rank of the dive is displayed.) Warning The IQ-800 is not intended for use at altitudes above 19680 ft (6000 m). Diving at high altitudes carries an increased risk of decompression sickness.
  • Page 36 Below are the Altitude Setting Icons for the rank of 0,1,2,3. If the altitude exceeds 19680 feet, the icon will blink and the Err icon will be displayed. (Fig. 36) altitude rank Figure 36 If the Altitude exceeds 19680 feet (6000 meters), the display shown below will appear.

  • Page 37: Battery Level Icon

    16. Battery Replacement The IQ-800 uses one CR2032 3v battery. In order to replace the battery, remove the clear cover with a coin by unscrewing it in the “open” direction indicated by an arrow on the cover.

  • Page 38: Units Of Measurement

    LCD life. Other than for battery replacement, following the procedures outlined in this manual, the IQ-800 is not to be disassembled by anyone other than TUSA or its authorized dealers. Unauthorized disassembly will violate the warranty.

  • Page 39: Warranty

    (2) years from date of original purchase. Under this limited warranty, TUSA will either repair or replace, at its sole option, any original equipment or parts that fail to perform as intended. When this limited warranty is in force, it covers the cost of necessary replacement parts.
  • Page 40 Tusa expressly limits any and all dive computer warranties, expressed or implied, to the two year term as set forth above. All remedies are waived unless claim is made within the applicable twenty-four (24) month period.
  • Page 41 20. Alarm Table Alarm Cause Warning Ascent Rate Violation The ascent rate bar Sound: Warning graph is 7 or more. sounds for 3 seconds Vibration: active for 3 seconds Transition to deco Exceeding the NDL Warning sounds twice dive limits for three seconds Vibration is active Transition to deco...
  • Page 42 Alarm Cause Warning Ft/m Selection When changing the Confirmation sound unit of measure History Clear When clearing the Confirmation sound history Dive Mode prohibition When the E button Constant warning alarm is active during the sound. The alarm following conditions: will continue until the 1.

  • Page 43: Technical Specifications

    22. Technical Specifications (1) Accuracy • Time: average monthly variance ±30 seconds • Depth: ±3%+2ft (±3%+0.5m) • Temperature : ±4°F (±2.0℃) (2) Measurement range • Depth: 0.0-328ft (0.0-99.9m) • Dive time: 0-599 minutes • Altitude: 0-19680ft (0-6000m) Altitude measurement interval of 10 minutes (It excludes dive mode, time set mode, PC transfer mode.) •...
  • Page 44 Owners Information Date Purchased: IQ-800 Serial Number: Dealer: Address: City: State: Zip Code:...
