Summary of Contents for My Weigh HD150

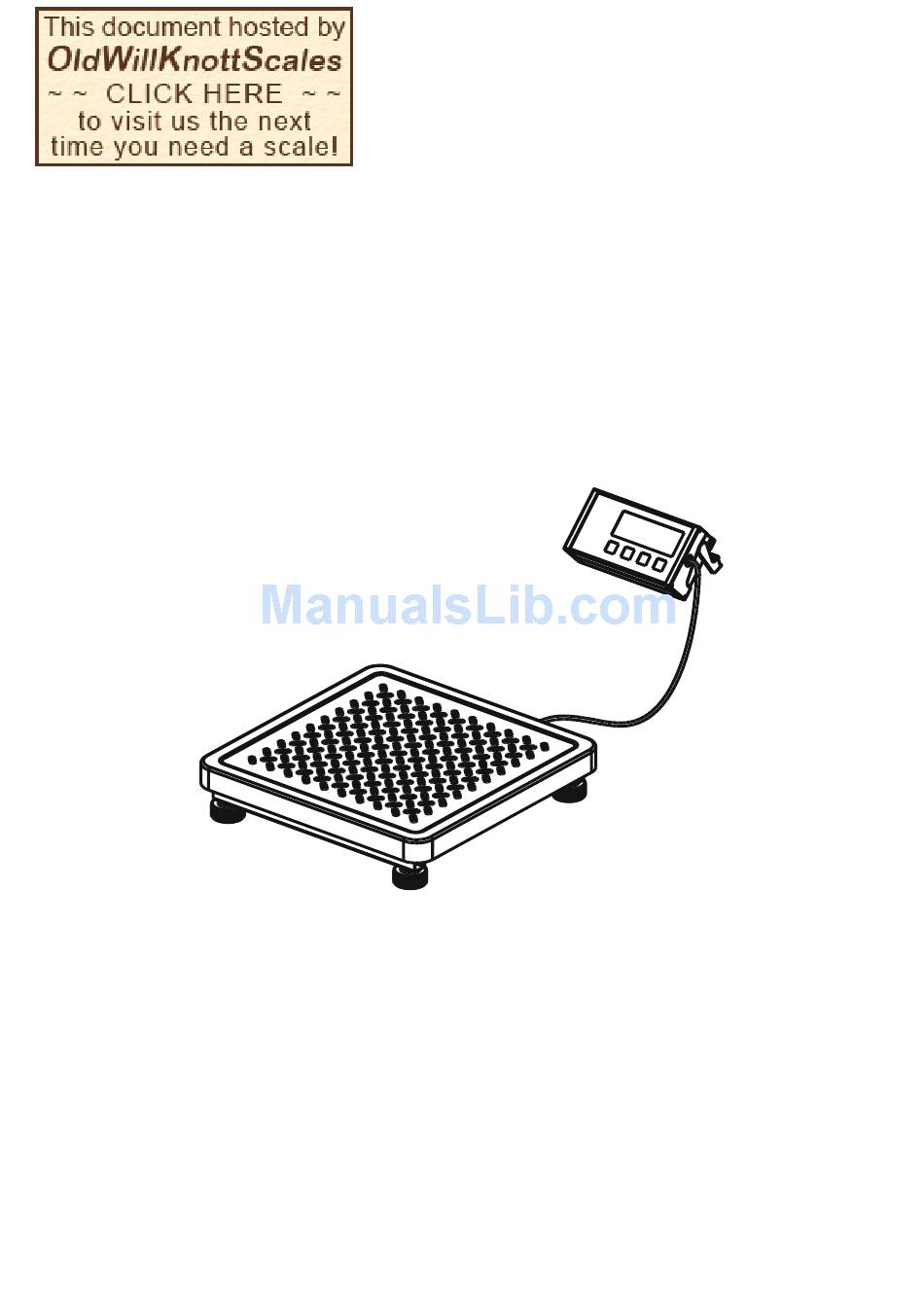

- Page 1 My Weigh HD Series Scales Manual...
- Page 2 My Weigh HD Series Scales Manual Thank you for purchasing the My Weigh HD Series parcel scale. This scale is designed to provide years of accurate weighing. Please read this entire manual before use. If you have any questions about your scale or have troubleshooting concerns, please visit our website at www.MyWeigh.com.
- Page 3 (3) Press the “T” key to TARE or Zero the scale (4) Press the “D” key to transmit the data through the RS-232 port Definition of display symbols: (1) 150.00: the scales maximum capacity is 150.00lbs, the scale is attempting to locate the proper zero position for accurate weighing.
- Page 4 Data bits : 8 bits Stop bit : 1 bit Parity : none When work mode “SCI.3” is selected and the scales “DATA” key is pressed or the carriage return (0d hex) is received, the HD shipping scale will transmit the appropriate weight, unit, stability, over/down or low voltage message through computers serial port continuously.
- Page 5 “T” key, the “F” in “CAL-F” will flash (6) After the readings (60.00 for HD150 or 120.00 for HD300) are stable, the indicator will display “CAL-0”; remove the weight(s) from the platform, press the “T” key; the “0” in “CAL-0” will flash, and then the display will reset after 2-3 seconds Calibration is now complete.
- Page 6 State Code State Code Alabama Mississippi Birmingham & North Kosciusko & North South of Birmingham South of Kosciusko Alaska Missouri North of Fairbanks North of Springfield Between Anchorage & Fairbanks Springfield & South South of Anchorage Montana Arizona Helena & North Phoenix &...
- Page 7 Salem & North Idaho Between Oakridge & Salem North of Salmon River Mtns South of Oakridge South of Salmon River Mtns Pennsylvania Illinois Rhode Island Bloomington & North South Carolina South of Bloomington South Dakota Indiana Tennessee North of Indianapolis Texas Indianapolis &...
- Page 8 Country Code Country Code Albania # Latvia # Andorra # Liechtenstein #...
- Page 9 Austria # Lithuania # Luxembourg # Belarous Belgium # Macedonia Bosnia and Herzegovina # 8 Malta # Bulgaria # Moldova Croatia # Monaco # Czech Republic # Netherlands # Denmark # Norway # Estonia # Poland # Faroe Islands # Portugal # Finland # Romania #...
- Page 10 - Canada geographic location code: : > : < State Code State Code Alberta Prince Edward Island North of Edmonton Quebec Edmonton & South North of Schefferville British Columbia Between Schefferville & Sept-Iles North of Prince George Sept-Iles & South Prince George &...
- Page 11 - Bottom view of the scale# Load cell adjustable in it Load feet 4 over load Battery protection compartment screws and it’s cover Fig1 Bottom view of the scale - Indicator’s outline and placement positioning BCDE 9:;<;-%=*'+4)1' #,-).)/*'+-$012'* > > 3'4*-$%.' 8)12-$%.' @<A...
