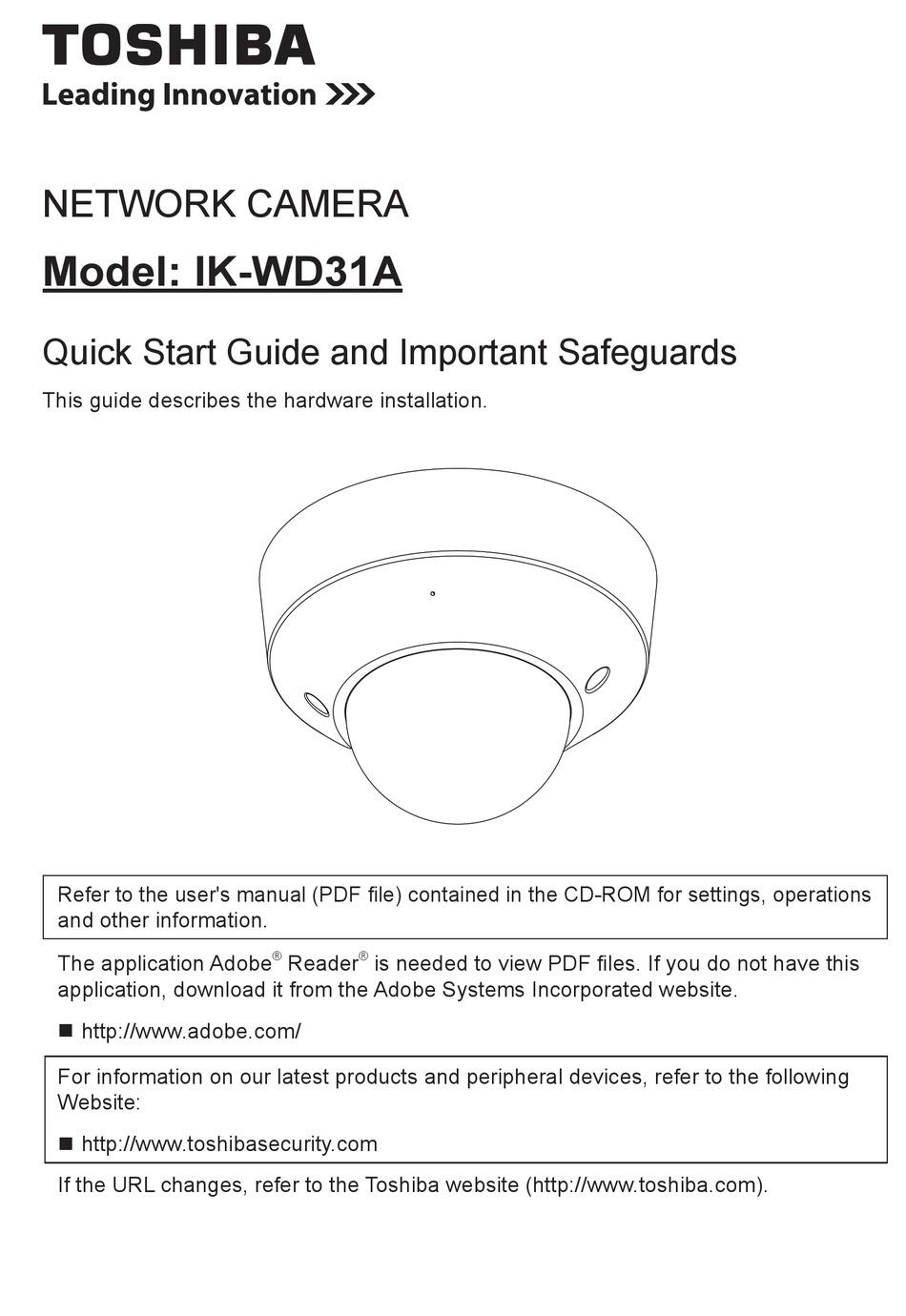

NETWORK CAMERA
Model: IK-WD31A
Quick Start Guide and Important Safeguards
This guide describes the hardware installation.
Refer to the user's manual (PDF file) contained in the CD-ROM for settings, operations
and other information.
The application Adobe
application, download it from the Adobe Systems Incorporated website.
n http://www.adobe.com/
For information on our latest products and peripheral devices, refer to the following
Website:
n http://www.toshibasecurity.com
If the URL changes, refer to the Toshiba website (http://www.toshiba.com).
®
®
Reader
is needed to view PDF files. If you do not have this
Advertisement
Table of Contents
Related Manuals for Toshiba IK-WD31A
Summary of Contents for Toshiba IK-WD31A
-
Page 1: Network Camera
PDF files. If you do not have this application, download it from the Adobe Systems Incorporated website. n http://www.adobe.com/ For information on our latest products and peripheral devices, refer to the following Website: n http://www.toshibasecurity.com If the URL changes, refer to the Toshiba website (http://www.toshiba.com). -
Page 2: Introduction
Introduction FCC (USA)-INFORMATION NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Terms
Thank you for purchasing the IK-WD31A Network Camera. Before using the camera, read this quick start guide carefully to ensure correct usage. After reading this quick start guide, save it for future reference. The design, specifications, software, and quick start guide contents are subject to change without prior notice. -
Page 4: Table Of Contents
Table of Contents Introduction FCC (USA)-INFORMATION ..................2 Terms .........................3 Table of Contents....................4 Important Safeguards ..................5 Important Safeguards (Cont.) ................7 Notes on Use and Installation................8 Setting the Network Camera Environment ............9 Items needed for network camera monitoring ............9 Contents ...................... -
Page 5: Important Safeguards
Important Safeguards 1. Read Instructions Read all the safety and operating instructions before operating the product. 2. Retain Instructions Retain the safety instructions and user's manual for future reference. 3. Warnings Comply with all warnings on the product and in the user's manual. 4. - Page 6 13. Lightning For additional protection on this camera during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the power supply and cable system. This will prevent damage to the camera due to lightning and power-line surges.
-
Page 7: Important Safeguards (Cont.)
Important Safeguards (Cont.) CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 8: Notes On Use And Installation
Notes on Use and Installation l Do not aim the camera at the sun Never aim the camera at the sun even with the camera power off. l Do not shoot intense light Intense light such as a spotlight may cause a bloom or smear. A vertical stripe may appear on the screen. -
Page 9: Setting The Network Camera Environment
Setting the Network Camera Environment Items needed for network camera monitoring l Administrator's personal computer The personal computer that allows setting, operating, monitoring and other functions with the network camera is called the "administrator's personal computer" in this guide. * The personal computer for viewing monitored images is called the "user's personal computer"... -
Page 10: Contents
Adobe Systems Incorporated website. n http://www.adobe.com/ For information on our latest products and peripheral devices, refer to the following Website: n http://www.toshibasecurity.com If the URL changes, refer to the Toshiba website (http://www.toshiba.com). l Torx driver l Screws and Anchors... -
Page 11: Physical Description
Physical Description Dome cover Internal microphone Cover screws Clear cover Knock out Tilt adjustment screws Lens cover Mounting holes 11 11... - Page 12 CAMERA MAIN UNIT l Front View IR LEDs Lens Light Sensor Focus Button Built-in Microphone Status LED l Rear View General IO Terminal Block Micro SD/ 1. GND SDHC/SDXC 2. Power input (12V DC) Card Slot 3. Do not use 4.
-
Page 13: Hardware Installation
Hardware Installation First, use the supplied driver to detach the dome cover from the camera base. Then, follow the steps below to install the camera; either to a ceiling or to a wall. Bottom of the Camera Dome Cover... - Page 14 Alignment sticker Notes: Alignment sticker l The included screws and anchors are used to install the camera to a solid surface. (e.g. concrete) If installing on loose or thin material surfaces , use the appropriate anchors (not included) with the screws. l Generally the camera turns a built-in microphone in the direction of object.
-
Page 15: Network Deployment
Network Deployment Power over Ethernet (PoE) When using a PoE-enabled switch The camera is PoE-compliant, allowing transmission of power and data via single LAN cable. See the following illustration to connect the camera to a PoE switch via LAN cable. Client PC (not supplied) PoE switch... - Page 16 General Connection (without PoE) 1. Connect the camera to an Ethernet switch via LAN cable. 2. Connect the power cable from a power unit (not supplied) to the appropriate port of the general I/O terminal. (See page 12). 3. Connect the PC to an Ethernet switch via Ethernet cable. Ethernet switch (not supplied) Client PC...
-
Page 17: Assigning Ip Address
4. After searching, the main installer window will pop up. Double click on the MAC address of the appropriate device to connect to the Network Camera. 00-02-D1-71-42-70 169.254.0.99 IK-WD31A 0002D1714270 NOTE l If "Installation Wizard" does not find the camera during the search, try turning off the wireless LAN of a PC. -
Page 18: Retrieving Images
Retrieving Images 1. Access the Network Camera from the network. ® 2. Retrieve live video through Internet Explorer For more information on camera configuration, please refer to user's manual on the CD-ROM. -
Page 19: Adjusting The Lens
Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens by performing the following: To adjust the viewing angle 1. Turn the lens module left and right. 2. Loosen the tilt adjustment screws on both side of the camera and then turn the lens module up and down. -
Page 20: Dome Cover
Dome cover 1. Attach the dome cover to the camera. NOTE l Don't touch the lens and clear cover when installing. Clean the clear cover if you touch it. After attaching the dome cover, make sure not to cover the light sensor with dome cover. -
Page 21: Adjusting The Zoom And Focus
Adjusting the Zoom and Focus Access to the Network Camera from the network, and click the configuration button on the main page. Then click the following: Audio and Video Image Zoom and Focus To adjust the zoom factor and focus range 1. -
Page 22: Trademarks
Trademarks l Microsoft, Windows, Windows Vista and Intemet Explorer are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries. l Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. - Page 23 TOSHIBA AMERICA INFORMATION SYSTEMS, INC. Surveillance & IP Video Products 9740 Irvine Boulevard, Irvine, CA 92618-1697 Phone Number: (877) 855-1349 625026700G...
