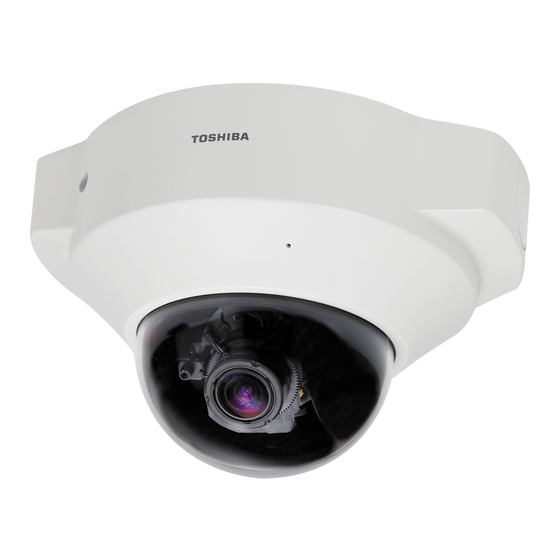

NETWORK CAMERA

Model: IK-WD12A
Quick Start Guide and Important Safeguards
This guide describes the hardware installation.
Refer to the user's manual (PDF file) contained in the CD-ROM for settings, operations
and other information.
The application Adobe Reader is needed to view PDF files. If you do not have this
application, download it from the Adobe Systems Incorporated website.
n http://www.adobe.com/
For information on our latest products and peripheral devices, refer to the following
Website:
n http://www.toshibasecurity.com
If the URL changes, refer to the Toshiba website (http://www.toshiba.com).

Advertisement

Table of Contents
loading

Related Manuals for Toshiba IK-WD12A

Summary of Contents for Toshiba IK-WD12A

  • Page 1: Network Camera

    The application Adobe Reader is needed to view PDF files. If you do not have this application, download it from the Adobe Systems Incorporated website. n http://www.adobe.com/ For information on our latest products and peripheral devices, refer to the following Website: n http://www.toshibasecurity.com If the URL changes, refer to the Toshiba website (http://www.toshiba.com).

  • Page 2: Introduction

    Introduction FCC (USA)-INFORMATION NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Terms And Trademarks

    Thank you for purchasing the IK-WD12A Network Camera. Before you start using the camera, read this quick start guide carefully to ensure correct usage. Once you have finished reading this quick start guide, keep it in a convenient place for future reference.

  • Page 4: Table Of Contents

    Table of Contents Introduction FCC (USA)-INFORMATION ..................2 Terms and Trademarks ....................3 Table of Contents....................4 Important Safeguards ..................5 Notes on Use and Installation................8 Setting the Network Camera Environment ............9 Items needed for network camera monitoring ............9 Contents ......................10 Physical Description ..................11 Hardware Installation ..................

  • Page 5: Important Safeguards

    Important Safeguards 1. Read Instructions Read all the safety and operating instructions before operating the product. 2. Retain Instructions Retain the safety instructions and user's manual for future reference. 3. Warnings Comply with all warnings on the product and in the user's manual. 4.
  • Page 6 13. Lightning For additional protection on this camera during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the power supply and cable system. This will prevent damage to the camera due to lightning and power-line surges.
  • Page 7 Important Safeguards (Cont.) CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 8: Notes On Use And Installation

    Notes on Use and Installation l Do not aim the camera at the sun Never aim the camera at the sun even with the camera power off. l Do not shoot intense light Intense light such as a spotlight may cause a bloom or smear. A vertical stripe may appear on the screen.

  • Page 9: Setting The Network Camera Environment

    Setting the Network Camera Environment Items needed for network camera monitoring l Administrator's personal computer The personal computer that allows setting, operating, monitoring and other functions with the network camera is called the "administrator's personal computer" in this guide. * The personal computer for viewing monitored images is called the "user's personal computer"...

  • Page 10: Contents

    Contents l IK-WD12A l AC Adapter l CD-ROM l Alignment Sticker IK-WD12A Ver. WD12-01 l Warranty Card l Quick Start Guide and Important Safeguards l Torx driver Screws and I/O Connector...

  • Page 11: Physical Description

    Physical Description Light Sensor Lens SD/SDHC Card Slot Tilt Adjustment Screw Built-in Microphone Status LED Power Cord Socket Ethernet 10/100 RJ45 Recessed Reset Button Socket Focus Controller Zoom Controller Rotation Adjustment Screw Pan Adjustment Screw External/Internal INT. NC I / O General I/O Microphone Switch EXT NC...

  • Page 12: Hardware Installation

    Hardware Installation First, use the supplied driver to detach the dome cover from the camera base. Then, follow the steps below to install the camera; either to a ceiling or to a wall. Alignment sticker Notes: l The attached screws and anchors are used to install the Alignment sticker camera to a solid surface.

  • Page 13: Network Deployment

    Network Deployment General Connection (without PoE) 1. Connect the camera to an Ethernet switch via LAN cable. 2. Connect the supplied power cable from the camera to a power outlet. 3. Connect the PC to an Ethernet switch via Ethermet cable. Ethernet switch (not supplied) Client PC...
  • Page 14 Power over Ethernet (PoE) When using a PoE-enabled switch The camera is PoE-compliant, allowing transmission of power and data via single LAN cable. See the following illustration to connect the camera to a PoE switch via LAN cable. Client PC (not supplied) PoE switch (not supplied)

  • Page 15: Assigning Ip Address

    4. After searching, the main installer window will pop up. Click on the MAC that matches the one you just noted from the product label of your device to connect to the Network Camera. MODEL No. IK-WD12A DC INPUT : 12V 0.6A 00-02-D1-71-42-70 169.254.0.99...

  • Page 16: Retrieving Images

    Retrieving Images 1. Access to the Network Camera from the network. ® 2. Retrieve live video through Internet Explorer 2010/09/01 16:34:42 For more information on camera configuration, please refer to user's manual on the CD-ROM.

  • Page 17: Adjusting The Lens

    Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens by doing the following: To adjust the viewing angle 1. Loosen the pan adjustment screw and then turn the lens module left and right. Upon completion, tighten the screw.

  • Page 18: To Adjust The Zoom Factor And Focus Range

    To adjust the zoom factor and focus range 1. Loosen the zoom controller to adjust the zoom factor. Upon completion, tighten the zoom controller. 2. Loosen the focus controller to adjust the focus range. Upon completion, tighten the focus controller. AUDIO Loosen INT.

  • Page 19: Completion

    Completion 1. Rotate the black cover inside the dome cover to fit the lens shooting direction. 2. Attach the dome cover to camera. 3. Secure the two dome screws with a screwdriver. Finally, make sure all parts of the camera are securely installed. The supplied screwdriver is exclusively designed to match the dome screws.
  • Page 20 TOSHIBA AMERICA INFORMATION SYSTEMS, INC. Surveillance & IP Video Products 9740 Irvine Boulevard, Irvine, CA 92618-1697 Phone Number: (877) 855-1349 625012800G...
