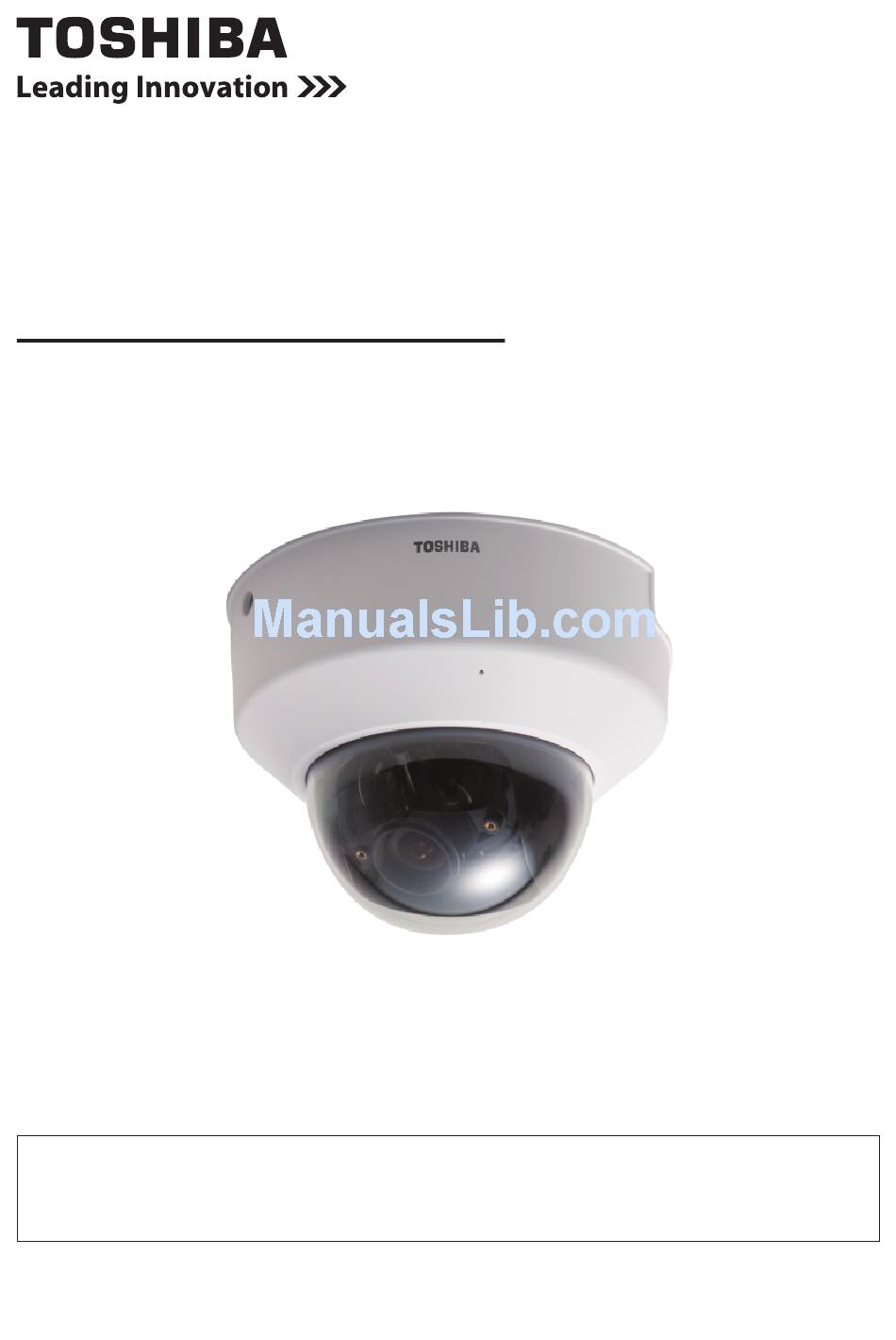

NETWORK CAMERA

Model:
User's Manual
For information on our latest products and peripheral devices, refer to the
following web page:
■ http://www.toshibasecurity.com
The above URL is subject to change without prior notice.
If the URL changes, refer to the Toshiba website (http://www.toshiba.com).
IK-WD01A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IK-WD01A and is the answer not in the manual?

Questions and answers

Related Manuals for Toshiba IK-WD01A

Summary of Contents for Toshiba IK-WD01A

  • Page 1: Network Camera

    Model: User's Manual For information on our latest products and peripheral devices, refer to the following web page: ■ http://www.toshibasecurity.com The above URL is subject to change without prior notice. If the URL changes, refer to the Toshiba website (http://www.toshiba.com).

  • Page 2: Introduction

    Introduction FCC (USA)-INFORMATION NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Terms And Trademarks

    Thank you for purchasing the IK-WD01A Network Camera. Before you start using the camera, read this User's Manual carefully to ensure correct usage. Once you have fi nished reading this User's Manual, keep it in a convenient place for future reference.

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions The safety instructions and user's manual should be retained for future reference. 3. Warnings Comply with all warnings on the product and in the user's manual.
  • Page 5 CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. T h e l i g h t n i n g f l a s h w i t h a r r o w head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated...

  • Page 6: Notes On Use And Installation

    NOTES ON USE AND INSTALLATION • This camera is for indoor use. • Do not aim the camera at the sun Never aim the camera at the sun even with the camera power off . • Do not shoot intense light Intense light such as a spotlight may cause a bloom or smear.

  • Page 7: Precautions For Use

    Accordingly, [Toshiba/TAIS] disclaims any and all liability arising out of the use of the product in any critical applications.

  • Page 8: Ac Adapter

    AC adapter Be sure to use only the supplied AC adapter. Using a different AC adapter may cause the camera to malfunction, heat up, or catch fire. Before using the AC adapter, carefully read and observe the Important Safety Instructions ( → page 4) and the notes below.
  • Page 9 Specifi cations AC adapter (AH1812-B) Power source Rated output Ambient temperature guaranteed for performance Storage temperature Maximum external dimensions : 34.5 x 75 x 46.5 mm (1.358 x 2.953 x 1.831 inches) Cord length : 100-240 VAC 50/60 Hz 18 W : 12 VDC, 1.5 A : 0 C to 40 C (32 F to 104 F) : -25 C to 85 C (-13 F to 185 F)

  • Page 10: Table Of Contents

    Table of Contents ● Introduction ...2 ● IMPORTANT SAFEGUARDS ...4 ● NOTES ON USE AND INSTALLATION ...6 ● Precautions for Use ...7 ● AC adapter ...8 ● Table of Contents ...10 ● Contents ...12 ● Installation ...13 • Hardware installation ...13 •...
  • Page 11 Defi nitions in Confi guration ● Defi nitions in Confi guration ...30 ● System parameters ...31 ● Security settings ...32 ● Network settings ...33 • Network type ...34 • HTTP ...35 • Two way audio ...35 • FTP ...35 • RTSP Streaming ...36 ●...

  • Page 12: Contents

    Contents ● IK-WD01A ● CD-ROM ● Warranty ● Torx driver ● AC Adapter ● Alignment Sticker ● Quick Start Guide and Important Safeguards ● Screws and I/O Connector...

  • Page 13: Installation

    Installation In this user's manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can confi gure the Network Camera and grant user access to the camera. Hardware installation Connect the power adapter jack to the Network Camera before plugging in to the power socket.

  • Page 14: Software Installation

    Installation (Cont.) General I/O terminal block This Network Camera provides a general I/O terminal block with one digital input and one digital output device control. The pin defi nition is as below. 1: Power 2: Digital output 3: Digital input 4: Ground The connection defi...

  • Page 15: Initial Access To The Network Camera

    Initial Access to the Network Camera Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS.

  • Page 16: Authentication

    How to Use A PC with the Windows operating system can use Internet Explorer (IE) to connect to the Network Camera. A plug-in will be installed into IE when it is connected for the fi rst time. Authentication After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password.

  • Page 17: Installing Plug-In

    Installing plug-in During initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera. Permission request depends on the Internet security settings of the user's PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt.

  • Page 18: User's Features

    User's features Main Screen with Camera View The main page layout has two sections: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees. Click on the configuration link to the left of the image window to enter the confi...

  • Page 19: Digital Zoom

    Digital Zoom Clicking on the magnifi er icon, under the camera view, the digital zoom control panel will appear. Uncheck "Disable digital zoom" and use the slider control to change the zoom factors. Use the Area Of Interest windows to zoom in on a specifi c area.

  • Page 20: Mp4 Recording

    User's features (Cont.) MP4 Recording Click on the red circle button the related options in the client setting page. Snapshot There are diff erent frame sizes for stream 1 and stream 2. The snapshot image will be of the larger frame size of the two. Click on "Snapshot", web browser will pop up a new window to show the snapshot.

  • Page 21: Client Settings

    Client settings There are four settings for the client side in IE. 1. The "Stream Options" is to select which one of the dual-streaming channels to monitor. 2. The "MPEG-4 Media Options" determines which media type to stream using the MPEG-4 mode.
  • Page 22 User's features (Cont.) 3. The "MPEG-4 Protocol Options" allows choices of the connection protocol between client and server. The four protocol choices to optimize your usage are UDP unicast, UDP multicast, TCP and HTTP. • The UDP Unicast protocol allows for more real-time audio and video streams.

  • Page 23: Digital Output

    Digital output Select "ON" to activate triggering of the digital output or "OFF" to return the digital output to the normal state.

  • Page 24: Audio Communication

    User's features (Cont.) Audio communication The camera supports two-way audio communication in the MPEG-4 mode so that operators can transmit and receive audio simultaneously. By using the camera's microphone input and an external speaker, you can communicate and give instructions to people at the camera's location. Note: Audio communication does not work with JPEG because JPEG only transmits a series of images to the client.

  • Page 25: Administrator's Features

    Administrator's features Fine-tuning for Best Performance Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The three factors, "Maximum frame rate", "Constant bit rate", and "Fixed quality" for MPEG-4 mode and "Maximum frame rate"...
  • Page 26 Administrator's features (Cont.) For Best Real-time Video Images To achieve good real-time visual effect, the network bandwidth should be large enough to allow a transmission rate of greater than 20 image frames per second. If the broadband network is over 1 Mbps, set the "Constant bit rate" to 1000Kbps or 1200Kbps, or set "Fixed quality"...

  • Page 27: Opening Accounts For New Users

    Opening accounts for new users Protect Network Camera by passwords The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the confi guration as long as the IP address is known. It is necessary to assign a password if the Network Camera is intended not to be accessed by others.

  • Page 28: Build A Security Application

    Administrator's features (Cont.) Build a security application The Administrator can use the built-in motion detection to monitor any movement to perform many useful security applications. To upload the snapshots, users can choose either email, FTP, HTTP or Network storage according to user's needs. All server settings are in the Server section on the Application page.

  • Page 29: Software Revision Upgrade

    Software revision upgrade Obtain up-to-date software from the Toshiba web site (http://www.toshibasecurity. com). An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is available to only the Administrator. To upgrade the system, follow the procedures below.

  • Page 30: Defi Nitions In Confi Guration

    Defi nitions in Confi guration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the feature sets on the Option pages. The Administrator may type the URL below the fi gure to directly enter the confi...

  • Page 31: System Parameters

    System parameters "Camera name" The text displays the title at the top of the main page. "Turn off the LED indicator" Select this option to shut off the LED. "Time zone" Adjust the time with that of the time-servers for local settings. "Keep current date and time"...

  • Page 32: Security Settings

    Security settings <url> http://<Network Camera>/setup/security.html <Network Camera> is the domain name or original IP address of the Network Camera. “Root password” Change the Administrator's password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes.

  • Page 33: Network Settings

    Network settings <url> http://<Network Camera>/setup/network.html <Network Camera> is the domain name or original IP address of the Network Camera. Any changes made on the Network Type section will restart the system in order to save the changes. Make sure every fi eld is entered correctly before clicking on...

  • Page 34: Network Type

    Network settings (Cont.) Network type “LAN” & “PPPoE” The default type is LAN. Select PPPoE if using ADSL. "Get IP address automatically" & "Use fi xed IP address" The default status is "Get IP address automatically". This can be tedious having to perform software installation whenever the Network Camera starts.

  • Page 35: Http

    HTTP “Authentication” Supports basic and digest modes. “HTTP port” This can be other than the default Port 80. Once the port is changed, the users must be notified the change for the connection to be successful. For instance, when the Administrator changes the HTTP port of the Network Camera whose IP address is 192.168.0.100 from 80 to 8888, the users must type in the web browser "http://192.168.0.100:8888"...

  • Page 36: Rtsp Streaming

    Network settings (Cont.) RTSP Streaming “Authentication” It supports disable, basic and digest modes. “Access name for stream 1” Access URL of stream 1 for making connection from the client software when using the MPEG-4 codec. “Access name for stream 2” Access URL of stream 2 for making connection from the client software when using the MPEG-4 codec.

  • Page 37: Ddns

    Please connect to the service provider's web site to review the service charges and sign-up for the service if you want to use DDNS. ChangeIP.com http://www.changeip.com/toshiba/ No-IP.com http://www.no-ip.com/ext/toshiba.php “Camera Name” If the User wants to use a DDNS service, enter the camera name that is registered at the DDNS server.

  • Page 38: Access List

    Access List <url> http://<Network Camera>/setup/accesslist.html <Network Camera> is the domain name or original IP address of the Network Camera. The access lists are to control the client's status by checking the client's IP address. The two lists for permission control are the Allowed list and Denied list. The two lists for permission control are the Allowed list and Denied list.

  • Page 39: Audio And Video

    Audio and Video <url> http://<Network Camera>/setup/audiovideo.htm <Network Camera> is the domain name or original IP address of the Network Camera. This product supports dual-stream. It provides two setting for video streams, but only one setting for audio.

  • Page 40: Video Settings

    Audio and Video (Cont.) Video Settings “Video title” The text string can be displayed on video. “Color” Selects either color or monochrome video display. “Power line frequency” Fluorescent lights flash according to the power line frequency. Change the frequency setting to eliminate uncomfortable fl ash images when the light source is only fl...

  • Page 41: Audio Settings

    Audio Settings “Mute” Turn off audio. “Internal microphone input gain” Modify the gain of the internal microphone input. “External microphone input” There are two gain options, 0db and 20db. “Audio type” Select audio codec “AAC” or “GSM-AMR” and the bit rate.

  • Page 42: Image Settings

    Audio and Video (Cont.) Image Settings Click on this button to pop up another window to tune "Brightness", "Contrast", "White Balance", "Saturation" and "Sharpness" for video compensation. Each fi eld has eleven levels ranging from -5 to +5 except "White Balance"...

  • Page 43: Privacy Mask

    Privacy Mask Click on the button to pop open another window to set the privacy mask window. Users can not view the blocked area or areas as set in privacy mask window. “Enable privacy mask” Check this option to turn on privacy mask. Click on this button to add a new window.
  • Page 44 Audio and Video (Cont.) "Window Name" The text will show at the top of the window. The following fi gure shows the screen when is clicked and the privacy mask is enabled.

  • Page 45: Motion Detection

    Motion detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold, and drag the window frame to resize or to move the title bar.

  • Page 46: Application

    Application <url> http://<Network Camera>/setup/application.htm <Network Camera> is the domain name or original IP address of the Network Camera. There are three sections in application page. They are event, server and media. Click to pop a window to add a new item of event, server or media. Click delete the selected item from event, server or media.

  • Page 47: Event

    Event A maximum of three events can be registered. “Event name” Unique name for the event. “Enable this event” Check to enable this event. “Priority” The event with highest priority will be executed fi rst. “Delay second(s) before detecting next event” Delay, in seconds, to check the next event setting.

  • Page 48: Server

    Application (Cont.) Server A maximum of fi ve servers can be registered. “Server name” The unique server name. The four kinds of servers supported are email server, FTP server, HTTP server and network storage. Email Server Settings. “Sender email address” Email address of the sender. “Recipient email address”...

  • Page 50: Media

    Application (Cont.) Media A maximum of fi ve medias can be registered. “Media name” The unique name for media. There are three kinds of media. They are snapshot, video clip and system log. Snapshot Settings. “Source” Select the source of the stream; stream1 or stream2. “Send pre-event images”...

  • Page 51: Recording

    Recording The Network camera supports recording on network storage. Setting up editing recording is the same as in application page. Recording name, status, weekly and time schedule, stream source and destination of recording must be entered. There can be at most two recording entries. To record on network storage, add the network storage server in application page fi...
  • Page 52 Recording (Cont.)

  • Page 53: System Log

    System log The Network camera support logs the system messages on a remote server. The protocol is compliant to RFC 3164. If using an external Linux server with syslogd service, use "-r" option to turn on the facility for receiving the log from remote machine.

  • Page 54: Maintenance

    Maintenance Five actions can be selected. “Reboot” Click the reboot button to restart the device. “Restore” Click it to restore all setting to factory default except setting in "Network type" in network page. “Factory default” Click on Factory default button on the configuration page to restore the factory default settings.

  • Page 55: Troubleshooting

    A. Troubleshooting Status LED The following table lists the LED patterns in general. Condition Loading system after power on During booting procedure Detecting and setting network After network is setup (system up) During the upgrade fi rmware process Reset and restore The reset button is located on the back of the Network Camera.

  • Page 56: Glossary (Index)

    B. Glossary (Index) Accessories ... 12 Access list ... 38 Administrator ... 32 Alarm setting ... 45, 46 Audio output ... 41, Quick Start Guide: 12 Audio setting ... 41 Browser ... 3 Software to browse Web screens. ® Microsoft Corporation Internet Explorer only.
  • Page 57 JPEG ... 40 (Joint Photographic Experts Group) S t a n d a r d g a u g e f o r c o m p r e s s i o n o f colored still image by ITU-TS (International Telecommunication Union: ex-CCITT) and ISO (International Organization for Standardization).

  • Page 58: Specifi Cations

    C. Specifi cations Power supply Power consumption Image pickup device Effective picture element Scanning system Minimum object illuminance White balance Tilt Horizontal adjustment Picture angle Brightness adjustment I/O terminal Image size Image compression system Image quality setting Maximum frame rate at M-JPEG Maximum frame rate at MPEG 4 Number of simultaneous deliveries for image or audio...

  • Page 59: Appearance Diagram

    D. Appearance Diagram 143 (5.63) 67 (2.64) 80 (3.15) Dimensions: mm (inch)

  • Page 60: Technology License Notice

    Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT REGARD TO PC SOFTWARE, YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM. MPEG-4 Visual Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING...
  • Page 61 The original text (English) of end-user license agreement on free software components used in the TOSHIBA Network Camera GNU GENERAL PUBLIC LICENSE Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 62 You may charge a fee for the physical act of transferring a copy, and you may at your option off er warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modifi...
  • Page 63 and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.
  • Page 64 PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO...
  • Page 65 TOSHIBA AMERICA INFORMATION SYSTEMS, INC. Security & Network Video Products 9740 Irvine Boulevard, Irvine California 92618-1697 Phone Number: (877) 855-1349...
