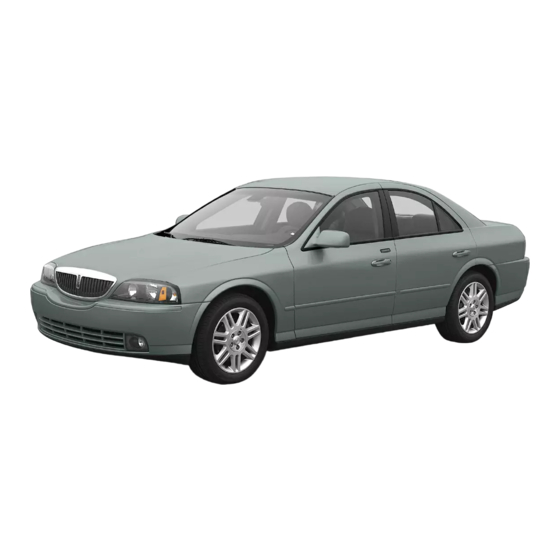

Lincoln 2004 LS Quick Reference Manual

21600 LS 04 QRG 10/1/03 2:21 PM Page 1
ESSENTIAL INFORMATION
FUEL TANK CAPACITY/FUEL RECOMMENDATIONS: Your fuel tank can accommodate 18.0
gallons of gasoline. Your vehicle is designed to use "Premium" unleaded gasoline with an
(R+M)/2 octane rating of 91 or higher for optimum performance. The use of gasolines with
lower octane ratings may degrade performance.
FUSES: If electrical components in your vehicle stop working, a fuse may have blown. (You'll
notice a broken wire within the fuse.) For information on changing fuses, please consult
your Owner's Guide.
TIRE PRESSURE: Improperly inflated tires can affect vehicle handling and can fail suddenly,
possibly resulting in loss of vehicle control. Check your tires for proper air pressure monthly;
Ford Motor Company Customer Relationship Center
check the air pressure in your spare tire every six months. Always use an accurate tire
P.O. Box 6248, Dearborn,
pressure gauge. Check the tire pressure when tires are cold, after the vehicle has been
MI 48121
parked for at least 3 hours or has been driven less than 3 miles. (As you drive, the
1-800-392-3673 (FORD)
temperature in the tire warms up, increasing the tire pressure.) Adjust the tire pressure to the
(TDD for the hearing impaired: 1-800-232-5952)
recommended specifications found on the tire inflation placard.
This Quick Reference Guide is not intended to replace your vehicle Owner's Guide which contains more
CHANGING THE TIRES: Your spare tire, jack and lug nut wrench are located under your
detailed information concerning the features of your vehicle, as well as important safety warnings
trunk cargo cover. (On V8 Sport models, the lug nut wrench is attached to the jack assembly.
designed to help reduce the risk of injury to you and your passengers. Please read your entire Owner's
Guide carefully as you begin learning about your new vehicle and refer to the appropriate sections when To use the wrench, remove it from the jack and extend the shaft.) Your vehicle may have a
questions arise. temporary or full-size spare tire. The temporary spare tire for your vehicle is labeled as such.
It is smaller than a regular tire and is designed for emergency use only. Drive cautiously and
replace the temporary spare tire as soon as possible.
If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decrease
your speed. Hold the steering wheel firmly and slowly move to a safe place on the side of
the road.
ROADSIDE EMERGENCIES: To fully assist you if you should have a vehicle concern, Lincoln
offers a complimentary roadside assistance program.This program is separate from the New
Vehicle Limited Warranty. The service is available 24 hours a day, seven days a week for the
Basic Warranty Period (Canada), or New Vehicle Limited Warranty period (U.S.) of four years
or 80,000 km (50,000 miles).
Roadside assistance will cover:
• Changing a flat tire
*F4W4J19G217AB*
• Lockout assistance
• Jump-starts
4W4J-19G217-AB
• Towing of your vehicle
• Limited fuel delivery
September 2003
Second Printing Lincoln LS
For complete details on any roadside assistance concern, please consult the Roadside
Quick Reference Guide Litho in U.S.A.
Emergencies or Customer Assistance chapters of your Owner's Guide.
AUDIO SYSTEMS
A
M
B L
C
E G
D
F H
PREMIUM AM/FM STEREO/CASSETTE SINGLE CD
A POWER/VOLUME: Press the control to turn G RDS/MUTE: The Radio Data System allows your
audio system to receive station identification or
the system on or off; turn the control to raise or
lower the volume. program type from RDS-equipped FM radio stations.
Please consult your Owner' s Guide for details. Press
AM/FM/CD: In radio mode, press this control
B MUTE to silence the playing media; press again to
to switch between AM, FM1 or FM2 modes. In return to normal levels.
tape or CD mode, press this control to stop
REWIND/FF: Press REW to reverse in tape or
play and begin radio play. If you're returning H
from tape or radio play and have a CD in place, CD mode; press FF to fast-forward in tape or
press CD to begin play of the first CD track.The CD mode.
CD will begin play where it stopped last.
I COMPRESSION/SHUFFLE: To adjust the soft
and loud passages of a CD for a more
TUNE: In radio mode, press the left arrow to
C
consistent listening level, press COMP; press
move to the next frequency down the
again to deactivate. Press SHUF to play all
band; hold the arrow to move quickly through
the frequencies. Press the right arrow to CD tracks in random order; press again
to deactivate.
move to the next frequency up the band;
hold the arrow to move quickly through
BALANCE/FADE: Press BAL and the left SEL
J
the frequencies.
arrow to shift sound to the left speakers; press
the right arrow to shift sound to the right
D SEEK: In radio mode, press the left arrow to
speakers. Press FADE and the right arrow of SEL
find the next listenable station down the
to shift the sound to the front; press the left
frequency band; press the right arrow to find
arrow to adjust the sound to the rear.
the next listenable station up the frequency
band. In tape or CD mode, press the left arrow
BASS/TREBLE: Press BASS, then use the SEL
K
to listen to the previous selection; press the
Country: Phone Number:
control left arrow to decrease or the right
right arrow to listen to the next selection.
arrow to increase the audio system's bass
United States (800) 521-4140
component. Press TREB, then use the SEL
Canada (800) 665-2006 E SCAN: In radio mode, press SCAN to hear a
control left arrow to decrease or the right
brief sampling of all listenable stations; press
arrow to increase the audio system's treble
again to stop scan mode. In tape or CD mode,
component.
press SCAN to hear a brief sampling of all
selections. To stop on a particular selection,
L TAPE: If a tape is already loaded into the
press the control again.
system, press TAPE to begin tape play.
AUTO SET: Auto Set allows you to set strong
F M CLOCK: Press the RDS control until SELECT
radio stations without losing your original HOUR or SELECT MINS is displayed. Use the left
manually set preset stations. Please consult
arrow of the SEL control to decrease
your Owner's Guide for details. hours/minutes, or the right arrow of the SEL
control to increase hours/minutes.
CAUTION: DO NOT USE CD WITH ADHESIVE LABEL*
B I H G F
J
E D
K
J
A
I C
K
AUDIOPHILE SATELLITE READY AM/FM STEREO IN-DASH SIX CD RADIO
AM/FM: In radio mode, press this control to TUNE: In radio mode, press the left arrow to
A H
switch between AM, FM1 or FM2 memory preset move to the next frequency down the band;
stations. In CD mode, press this control to stop CD hold the arrow to move quickly through the
play and begin radio play. frequencies.Press the right arrow to move to the
next frequency up the band; hold the arrow to
B CD/AUX: Press to access CD or AUX mode.
move quickly through the frequencies. In
CD mode, press the left arrow to listen to the
RADIO MEMORY PRESETS: These controls can be
C
previous disc; the right arrow to listen to the
used to select up to six preset AM stations and
next disc.
twelve FM stations (six in FM1 and six in FM2). Use
the AM/FM control to select the frequency band;
SCAN: In radio mode, press SCAN to hear a brief
I
select the station of your choice. Press and hold a
sampling of all listenable stations; press again to
memory preset control until the sound returns,
stop scan mode.In CD mode,press SCAN to hear
indicating the station has been stored.
a brief sampling of all CD selections.To stop on a
particular selection, press the control again.
BALANCE/FADE: Press BAL, then use the SEL
D
control to adjust sound between left and right
CD LOAD: Press the LOAD control and wait for
J
speakers. Press FADE, then use SEL to adjust the
the CD door to open.(Never attempt to force the
sound between the front and rear speakers.
door open manually.) You can choose which slot
you'd like to load by pressing the desired preset
BASS/TREBLE: Press the BASS or TREB control,
E
number. (As an example – to load a CD into slot
then use the SEL control up arrow to increase or
2, press LOAD and then press preset 2.) If you
down arrow to decrease that audio component.
don't specify a location, the system will choose
F CD REWIND/FF: Press and hold the REW control the next available slot. The display will indicate
until the desired selection is reached; release "LOAD CD#" until the CD is loaded and
to disengage rewind. Press and hold FF until
"LOADING CD#" while the CD is loading.
the desired selection is reached; release to
K CLOCK: Press MENU until SELECT HOUR or
disengage fast-forward.
SELECT MINS is displayed. Use the up arrow of
SEEK: In radio mode, press the left arrow to find
G SEL to increase, or the down arrow to decrease
the next listenable station down the frequency the hours and minutes.
band. Press the right arrow to find the next
listenable station up the frequency band. In CD
mode,press the left arrow to move to the previous
track on the current disc; press the right arrow to
move to the next selection on the current disc.
*CDs with adhesive labels and irregularly shaped CDs may get stuck in the CD player. Homemade CDs
should be identified with permanent felt tip marker rather than adhesive labels.
CLIMATE CONTROL SYSTEM
O N
P
A B L
Q M
L I N CO L N L S
F
C D E G H I J K
DUAL AUTOMATIC TEMPERATURE CONTROL (If Equipped)
DRIVER TEMP CONTROL: Press the up arrow COOL PASSENGER SEAT: Press to cool the
A J
for a warmer temperature; the down arrow for a front passenger seat. Press once for full cool,
cooler temperature. (In single zone operation, twice for medium cool and a third time for low
this control manages the temperature of the cool. Press a fourth time to disengage.
entire vehicle. In dual zone, it manages the
HEAT PASSENGER SEAT: Press to heat the
temperature of the driver's side of the vehicle. K
front passenger seat. Press once for full heat,
Use AUTO to change zones.)
twice for medium heat and a third time for low
FAN SPEED: To adjust the fan speed manually, heat. Press a fourth time to disengage.
B
press the up arrow to increase the speed; the
PASSENGER TEMP CONTROL: Press the up
L
down arrow to decrease the speed.To return to
arrow for a warmer temperature; the down
automatic fan operation, press AUTO.
arrow for a cooler temperature.
C COOL DRIVER SEAT: Press to cool the driver's
M REAR WINDOW DEFROST: Press to clear the
seat. Press once for full cool, twice for medium
rear window and side view mirrors of thin ice or
cool and a third time for low cool. Press a fourth
fog. Press again to turn the system off, or allow it
time to disengage.
to turn off automatically after a predetermined
D HEAT DRIVER SEAT: Press to heat the driver's period of time.
seat. Press once for full heat, twice for medium
RECIRCULATED AIR: Press to manually engage
N
heat and a third time for low heat. Press a fourth
or disengage the operation of recirculated air in
time to disengage.
all modes except defrost.
E AUTO (Automatic Temperature Control): Press
O A/C: Press to manually control the air
AUTO and select the temperature you find most
conditioning; press again to disengage. Press
comfortable. The system will either heat or cool
AUTO for automatic operation.
the vehicle based on your temperature
selection. Press and hold AUTO for about two
P DISPLAY OUTSIDE TEMP: Press EXT to display
seconds to toggle between single zone and
the outside temperature. Press EXT again to
dual zone temperature control. return to interior temperature.
MANUAL OVERRIDE CONTROLS: These
F Q °F/°C: Press to switch between Fahrenheit
controls allow you to manually direct airflow. To and Celsius.
return to full automatic control, press AUTO.
The buttons for the rear heated seats are
OFF: Press to disengage Automatic Temperature
G located on each of the rear door armrests. Press
Control.Press AUTO to resume automatic operation. the top of the button for high heat, the bottom
of the button for low heat; push again
AIRFLOW DIRECTION CONTROL: Press to
H
to deactivate.
toggle through various air distribution modes.
I DEFROST: Press to clear ice or fog from the
windshield; the system will distribute outside
air through the windshield defroster ducts and
the demister outlets.
2 0 0 4 Q U I C K R E F E R E N C E G U I D E
