P R O D U C T D A T A S H E E T
BATTERY CHARGER
CH01
Features:
• For charging the batteries of CB08-XA and all
jumbo types, directly connected to the control
box or via the handset HB40A (must not be used
with BA18)
• Mains: 100 - 240 VAC / 50-60 Hz switch mode
power supply
• Charging voltage: 27.6 VDC ± 2%
• Charging current: Max. 500 mA
• Colour: Black
• Cable: 2000mm with straight or angled DC-plug
(5.5 x 2.5)
• Switch mode principle
• Interchangeable with CH08
• Green LED for power on
• Yellow LED for charging function
• Medically approved according to IEC 60601-1 only
when used with straight DC plug

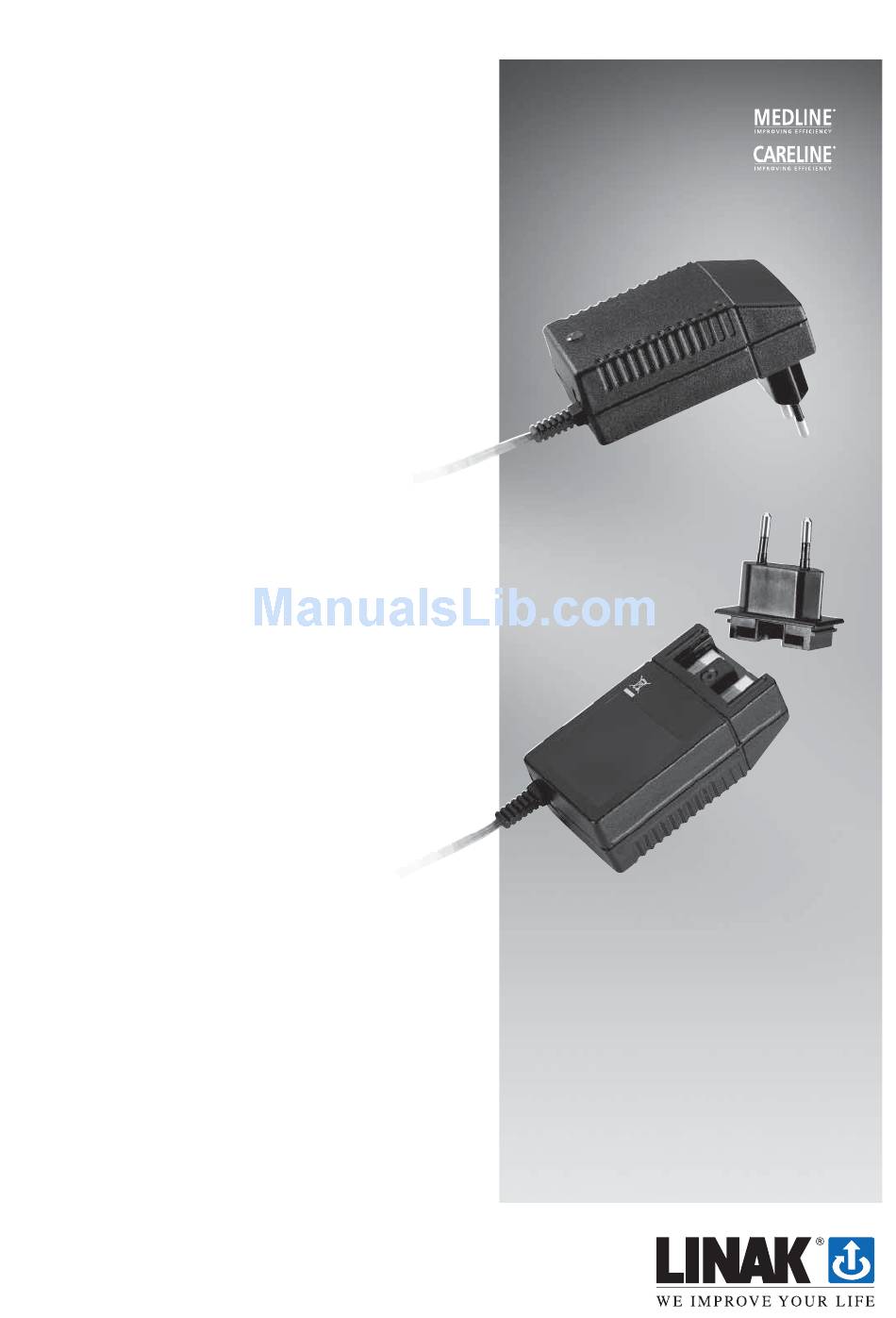

The CH01 Battery Charger gives the possi-
bilty to interchange the plug type with a
simple "slide on" operation.
This gives great versatility and a logistical
advantage reducing stocks and costs.
