- Page 1 Desk2Device USB Charger User manual LINAK.COM/DESKLINE Page 1 of 21...
-
Page 2: Table Of Contents
Mounting on top of the tabletop using screws .................12 Mounting under the tabletop ......................12 Connecting ..........................13 Operation ..........................13 Accessories and repair ......................14 Disposal of LINAK product ...................... 15 Labels ............................16 Drawing appendix ........................17 LINAK application policy ......................19 Addresses ..........................21... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Accessories: Desk2Device USB Charger Control boxes: CBD6S (200 W and 300 W; 300 W must be SW version 1.53 or newer) Cable: CAB0965388 or any standard DESKLINE DC-bus cable Page 4 of 21... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Re-Installation, Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK service centres or ® repairers, as special tools must be used and special gaskets must be fitted. Products under warranty must also be returned to authorised LINAK service centres. -
Page 9: Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK Actuator System for DESKLINE composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) Linear Actuator(s) LA31: 31abcH-defff50S, (Where -a: can be 1, 3, 6 or 7;... -
Page 10: Warranty
If a charger is found to be defective within 12 months from the production of the invidual product as stipulated on the product label, LINAK will at its sole discretion offer cost-free repair or replacement, or credit such products. LINAK will only provide cost-free repair or replacement, or credit in so far as the equipment has been used and maintained correctly and has not been tampered with. -
Page 11: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 12: Mounting The Desk2Device Usb Charger

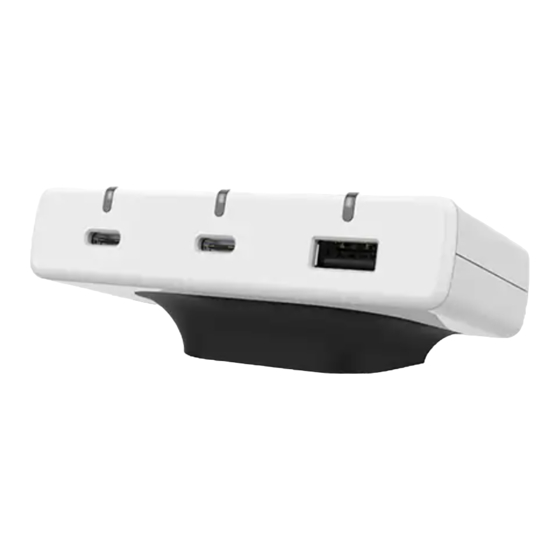

Mounting the Desk2Device USB Charger The Desk2Device USB Charger can be mounted either on top of or under the tabletop using one of the mounts and either the C-clamp or screws. Angled mount: recommended if the charger is mounted on top of the tabletop at the rear end or the side of the desk. This makes it easier to access the outputs. -
Page 13: Mounting On Top Of The Tabletop Using The C-Clamp
1. Mounting on top of the tabletop using the C-clamp: 1.1. Place the rubber pad on the selected mount (angled or flat) to protect the tabletop and to keep the charger in place. 1.2. Insert the C-clamp into the mount. 1.3. -
Page 14: Operation
Operation Simply connect a device to the Desk2Device USB Charger to charge the device. Headset Mobile phone Desk2Device Tablet Laptop USB Charger The charger has an indicator light at each port. Port When lit USB Type-A Indicates a charging current is flowing from the charger to the connected device USB Type-C Indicates an active USB-C device is connected (an active cable, such as a USB Type-C to lightning cable) -
Page 15: Accessories And Repair
Accessories Please contact your nearest LINAK contact, distributor or subsidiary. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 16: Disposal Of Linak Product
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 17: Labels
Label Label for Desk2Device USB Charger Page 17 of 21... -
Page 18: Drawing Appendix
Drawing appendix Desk2Device USB Charger Angled mount Page 18 of 21... - Page 19 Flat mount Dedicated cable Item number Length (L) CAB0965388-1800 1800 mm C-clamp Min. 10 ± 5 mm Max. 35 ± 5 mm Page 19 of 21...
-
Page 20: Linak Application Policy
LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas. - Page 21 The user is responsible for determining the suitabil- Fax: +86 755 8610 6990 Tel: +64 9580 2071 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
