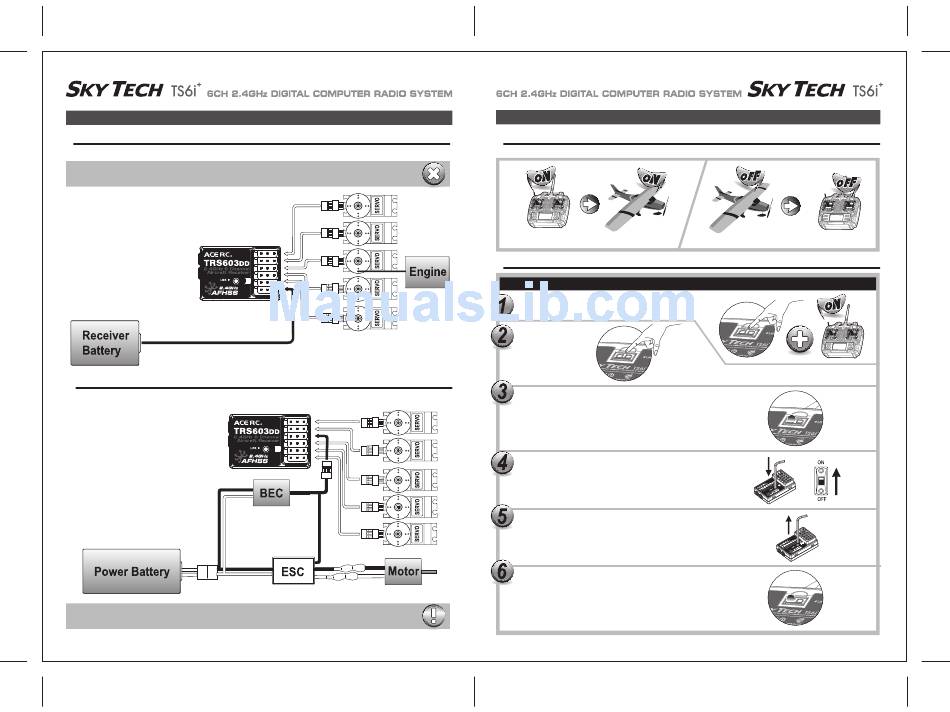

TRS603DD Receiver Connection Diagrams

Glow, Gas, Nitro or Electric-Powered Aircraft Using a Separate Receiver Battery.
Follow this connection diagram when using a dedicated 4.8 to 6.0V NiMH battery pack.
Warning :
KEEP YOUR HANDS AWAY FROM THE PROPELLER OR ROTORS EVEN AFTER ENABLING THE LOCK
FUNCTION-A RADIO GLITCH COULD STILL ACTIVATE THE THROTTLE !
2.4GHz 6 Channel
Aircraft Receiver
Electric-Powered Aircraft with Electronic Speed Control
Use this method on electric planes using ESCs providing power, A.K.A. BEC (Battery Eliminator Circuit), to the receiver and servo functions.
2.4GHz 6 Channel
Aircraft Receiver
Optional BEC shown in diagram. It is recommended to use a large capacity BEC when a number of high torque
servos are used and power requirements exceed that which the ESC provides.
Page 13

ACE RC 2.4GHz Receiver Features and setup

Set-up and Use of the ACE RC 2.4GHz System

To turn the system on and off, use the following sequence at all times
Turning On -Turn on the transmitter, then turn on the receiver.

Bind

RX (TRS603DD)
Press and hold the button on the module, and turn on the transmitter.
Release the link button.
Check if BLUE LED is blinking. If RED LED is blinking,
press the link button for 2 sec., so that LED changes to the BLUE.
Press and hold the link button on Receiver
and turn on the power.
Both RED, BLUE LEDs will blink rapidly to find the transmitter signal.
Release the link button when RED LED on receiver glows steady.
When the link is completed, BLUE LED on the module will blink.
Page 14
Turning Off -Turn off the receiver, then turn off the transmitter.
