ACE RC's AFHSS 2.4GHz Technology

+
The Sky Tech TS6i can be used with most of the ACE RC's existing AFHSS (Adaptive Frequency Hopping Spread Spectrum) 2.4GHz
receivers.
Providing the hobbyists with the latest technology at an affordable price has always been ACE RC's primary goal, a goal that we have now
achieved in 2.4GHz technology.
Adaptive Frequency Hopping Spread Spectrum Technology (AFHSS)
Our 2.4GHz system utilizes the latest AFHSS technology and our exclusive Scan Mode system to ensure a rock solid, interference-free
connection between the transmitter and receiver. When selected, ACE RC's 2.4GHz Scan Mode function scans the 2.4GHz spectrum to find
the cleanest channels in which to operate, providing interference-free operation even in the most crowded environments.

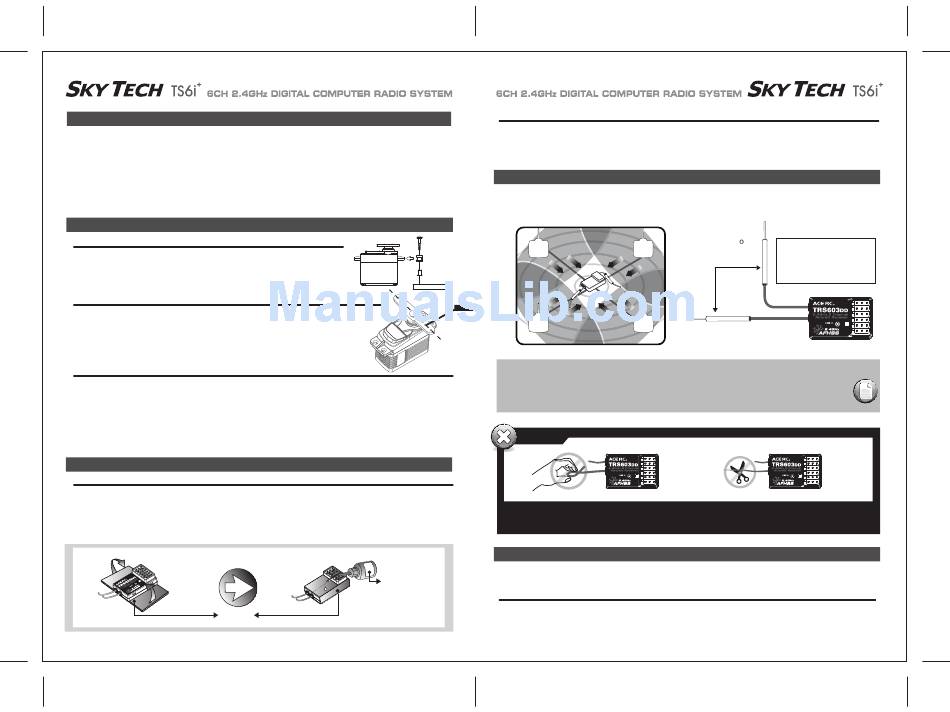

Equipment Mounting

Mounting
When you mount each servo, use the supplied rubber grommets and insert an eyelet up through the
bottom. Be sure not to over tighten the screws.
If any portion of the servo case directly contacts the fuselage or the servo rails, the rubber grommets
will not be able to attenuate vibration, which can lead to mechanical wear and possible servo failure.
Servo Throw
Once you have installed the servos, operate each one over its full travel and check that the pushrod and
output arms do not bind or collide with each other, even at extreme trim settings.
Check to see that each control linkage does not require undue force to move (if you hear a servo buzzing
when there is no transmitter control motion, most likely there is too much friction in the control or pushrod).
Even though the servo will tolerate loads like this, they will drain the battery pack much more rapidly.
Factory Repair Service Information
Please read the warranty card supplied with your system and return it. Before you decide to have your system repaired, if there is no
apparent physical damage, read this instruction manual again and check to be sure that you are operating the system as it was designed to
be operated. If you are still having trouble, pack up your system in its original shipping materials and send it to the nearest authorized ACE
RC R/C Service Center.
Be sure to include a note in your package that describes the trouble in as much detail as possible, including: symptoms of the problem in as
much detail as you can provide, including any unusual mounting conditions or equipment orientation, a list of items you are sending, and what
you want to be repaired. Make sure you also provide your name, address and telephone number.

Vibration and Water (TRS603DD)

Vibration and Water
The receiver contains precision electronic parts. Be sure to avoid vibration, shock, and temperature extremes.
For protection, wrap the receiver in the "Flight Preserver" foam rubber, or use some other vibration-absorbing materials.
If your flying near bodies of water, it's also a good idea to protect the receiver by placing it in a plastic bag and securing the open end of the
bag with a rubber band before wrapping it with foam. If you accidentally get moisture inside the receiver, you may experience intermittent
operationor a crash.
Sponge Pad
Page 3
Switch Harness Installation
When you are ready to install the receiver's switch harness, remove the switch cover and use it as a template to cut screw holes and a
rectangular hole slightly larger than the full stroke of the switch.
Choose a switch location on the opposite side of the fuselage from the engine exhaust, and choose a location where it can't be inadvertently
turned on or off during handling or storage. Install the switch so that it moves without restriction and "snaps" from ON to OFF and vice versa.

Antenna Installation (TRS603DD)

The TRS603DD antenna system is made for high directivity consisting of two antennas. In order to maximize the functions of the TRS603DD,
please install as shown below.
TX
Pushrod
TX
NOTE
*Detailed range check method can be found on page 21. During the range check period, you should be able
to walk away at least 75 feet from the model without losing control or seeing "jitter" in the servos. The range
check should be done with the motor running and the model should be securely restrained in case of loss
of control.
Warnings
Never pinch or bend the antenna, such behavior will cause
serious damage to the antenna.
Changing the length of the antenna reduces range.
Connectors
Be sure the alignment of a servo or battery connector is correct before inserting it into the receiver. To remove a connector from the receiver,
try to pull on the connector's plastic housing rather than pulling on the wires. Pulling the wires can ruin the connector pins and break wires.
Cyanoacrylate
Using Servo Wire Extensions
If any of your servos are located too far away to plug directly into the receiver (like the aileron servo), or you need to unplug the servo each time
you disassemble the model, use a servo extension cord to extend the length of the servo lead. Additional ACE RC extension cords of varying
lengths are available from your hobby dealer.
90
TX
RX
TX
2.4GHz 6 Channel
Aircraft Receiver
Never cut the antenna, such behavior will seriously reduce
the reception range.
Page 4
Recommended installation
method to optimize
receiver performance
2.4GHz 6 Channel
Aircraft Receiver
2.4GHz 6 Channel
Aircraft Receiver
