Sky Tech TS6i Sailplane in-Flight Controls
Trim Switch
SW 3
SW 1
Rudder & Power Switch
Throttle Stick

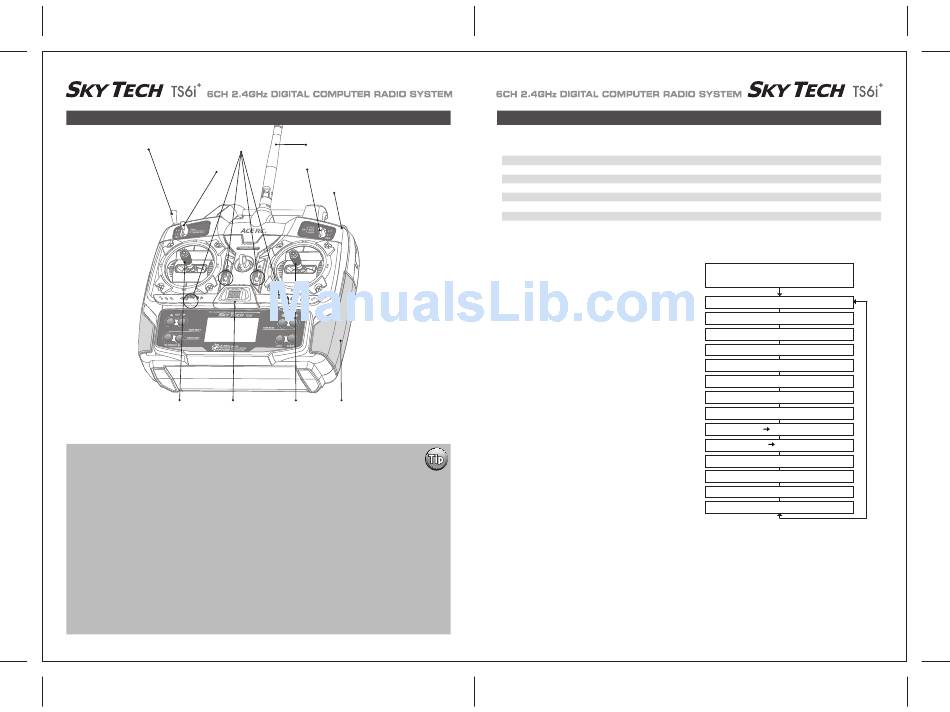

This figure shows the assignments for a Mode 2 system as supplied by the factory.
Note that some of the functions will not operate until activated in the mixing menus.
If this is your first Sailplane...
If this is your first model Sailplane, here are a few tips that will streamline your experience in programming it.
This will make more sense after you read through the manual.
Refer back to this section when you are ready to begin the setup:
1. Start with the correct model type, GLID, in the Initial Setup Menu.
2. Access the main programming menu, then use the REV function, and make sure all the servos are moving in the
proper direction.
3. After centering the servo arms manually as close as you can, use the S.TRM or sub-trim function to center the
servos.
4. Set your servo end points with the EPA function.
5. Program -35% EXPO values for aileron, Ch. 1 and elevator, Ch. 2.
6. After your Sailplane is all ready to fly, put it on a shelf and go get an R/C flight simulator program for your PC.
Spend quality time crashing the virtual plane in the simulator. Using a sim will save you hundreds of dollars
spent on spare parts and countless hours of rebuilding time in the long run.
7. Ready to fly your new Sailplane? If you are lucky you will know someone that is an experienced model pilot
and would be willing to check over your plane and take it up for its first flight. This is HIGHLY RECOMMENDED,
even if you have to drive a hundred miles to get to this person!
If you are on your own, start slow and conservatively.
Page 37
Antenna
SW 2
Trainer/Engine Cut Switch
Aileron & Plastic Side Panel
Elevator Stick

Sailplane Controls and Switch Assignments

To avoid duplication of text within the manual we suggest that if you have not already read the following you refer to this previously shown
information in the front of the manual.
EPA End Point Adjust (Servo travel) 25
EXP Exponential Settings 28
S-REV SERVO Reverse 29
ELVN Elevon Mixing (Tailless models) 31
V-TAL V-tail Mixing 32
E->F Elevator Flap Mixing 33
CAMB Camber (Combined Flaps & Ailerons) 34
+
- Introducing Sky Tech TS6i
- If you are new to Computerized RC Transmitters
- Charging the Batteries
- Flying Safely
- Mode 1 Configuration
- Flying Field Info
- Frequency Control
+
- Sky Tech TS6i Programming Switches and Buttons
- Transmitter Displays and Messages
- Initial Setup Menu Programming
+
The following section covers the Sky Tech TS6i GLID mode programming functions specific to sailplanes.
Please refer to the Initial Setup Menu on pages 24-26 and the ACRO Main Function Menu starting on page 28-40 to reference all other
+
Sky Tech TS6i programming instructions not specific to the GLID menu.
D/R Dual Rates
S-TRM Sub-Trim (Neutral Settings)
P.MIX Programmable Mixer
FLPN Flaperon (Combined Flaps & Ailerons)
A->R Rudder Coupling
CUT Throttle Cut (Engine Shut Off)
FLT.C Flight Condition (NOR, ST1, ST2, ST3)
Voltage/Timer Display
Normal Display Mode
Press both Edit Buttons
End Point Adjust [EPA]
Dual Rate Set [D/R]
Exponential [EXP]
Sub-Trims [S.TRM]
Servo Reversing [REV]
Prog.Mix [P.MIX]
Throttle Control Location
V-Tail [VTAL]
Ail Rud Mix [A-R]
Elev Flap Mix [E-F]
CROW (Proportional Airbrake Function)
Camber [CAMB]
ADIF Aileron Differential
F T L C . i l F h g c t n o i t i d n o
Page 38
27
29
30
31
33
34
35
