Wireless Operation; Wired Operation - Paradigm soundtrack 2 Setup Manual

EN
1
Status LED. Indicates connection status between the subwoofer
and soundbar (e.g. Not Paired, Searching for Connection, Paired).
For additional information refer to the Set-Up Guide included.
2
Line-Level Input (for use in a wired subwoofer connection only)
Allows connection from the wired Sub Out of the soundbar
or Sub/LFE Out of an external A/V receiver, processor or other
suitable low-level source. IMPORTANT: Do not connect a cable
to the Line-Level Input if you have already set-up a wireless
subwoofer connection.
3
Pair. This feature initiates wireless pairing between the subwoofer
and the transmitter inside the soundbar.
4
Subwoofer Level. Balances the subwoofer's output level to that of
your soundbar. See the Set-Up Guide for more info in this area.

WIRELESS OPERATION

Transmitter Range
In a typical listening room, the built-in wireless transmitter in your
soundbar has a maximum range of 50' (15 m). Obstructions such as
walls, large pieces of furniture, room dividers, etc., may reduce that
range. Do not place the soundbar and subwoofer farther apart than
the recommended range.
The soundbar's wireless transmitter features a 2.4 GHz uncompressed
digital self-sensing design that will automatically adjust for the best
wireless connection while monitoring the integrity of the data stream.
For wireless pairing instructions, refer to the Set-Up Guide included.

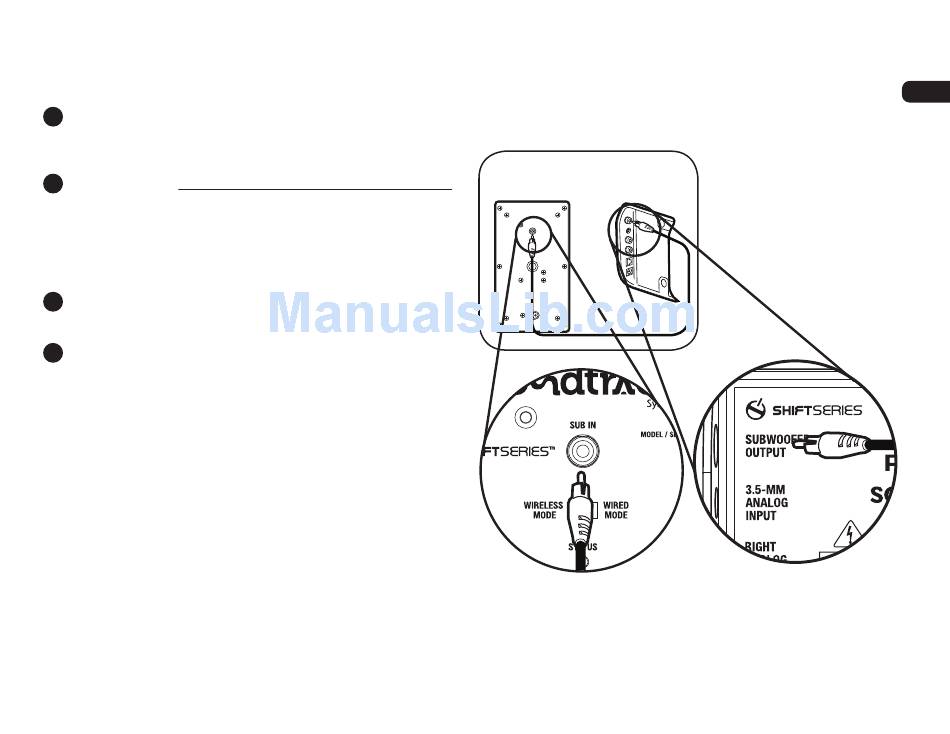

WIRED OPERATION

Subwoofer
Soundbar
Back Panel
Back Panel
Use the Line-Level Input
From Sub/LFE Out on sound
bar. Using an RCA-to-RCA
interconnect cable connect the
subwoofer as shown.
EN – 8
