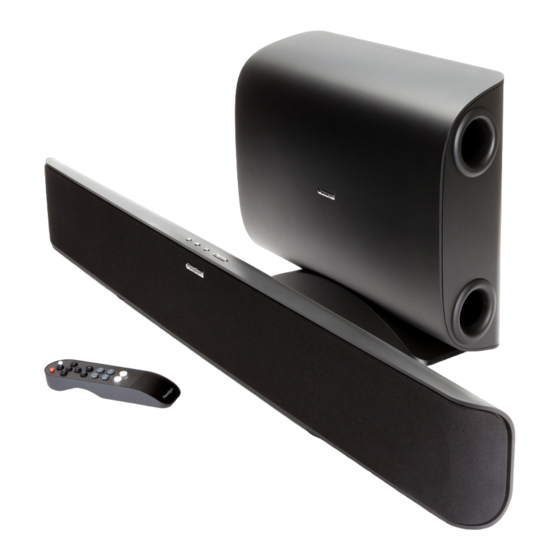

Paradigm Soundtrack 2 Setup Manual

Functions and LED Indication
FUNCTION AND OPERATION LED
System OFF: Press POWER
System ON: Press POWER
Auxiliary 3.5 mm Stereo Source:
x1
Press SOURCE once
Analog RCA Source: Press SOURCE a second time x2
x3
Digital Optical Source: Press SOURCE a third time
rapid
Bluetooth Wireless Connection: Press SOURCE
a fourth time (see Bluetooth connection for details)
Wireless Soundbar / Subwoofer Connection: Press SYNC.
LED flashes and stops flashing once there is a connection
Volume Up/Down: Press UP ARROW or DOWN ARROW
Max Volume: When volume is set to maximum level rapid
the LED brightness increases and flashes rapidly
Min Volume: When volume is set to minimum level
rapid
the LED brightness increases and flashes rapidly
Bluetooth Connection
1. FIRST TIME CONNECTION: To connect a phone/tablet that HAS NEVER
been connected to the Soundtrack 2, press the Enable Bluetooth
button on your remote or press the Source button (multiple times if
necessary) on the top-panel of the soundbar until the soundbar LED
rapidly flashes RED then BLUE ( ). The connection
process will take approximately 1 minute. See Step 2.
PREVIOUSLY CONNECTED: If your phone/tablet HAS previously
been connected to Soundtrack 2, the LED will flash RED then
x1 x1
BLUE ONCE ( ). Select Bluetooth as your playback
option and skip step 2.
2. While the LED on the soundbar alternates between RED and BLUE
( ), enable Bluetooth on your phone/tablet and search for
"Soundtrack 2" on your Bluetooth device list. Select "Soundtrack 2" to
establish a connection. Once a connection is established, the LED
illuminates Solid Blue ( ). Depending on phone/tablet you may
need to change the playback device to "Soundtrack 2" or it may
change automatically.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Paradigm Electronics Inc. is under license.
The "aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX®
mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be
registered in one or more jurisdictions."
For more information visit paradigm.com/shift
110413
The Official Sound of YOU
™
™
Set-Up Guide
