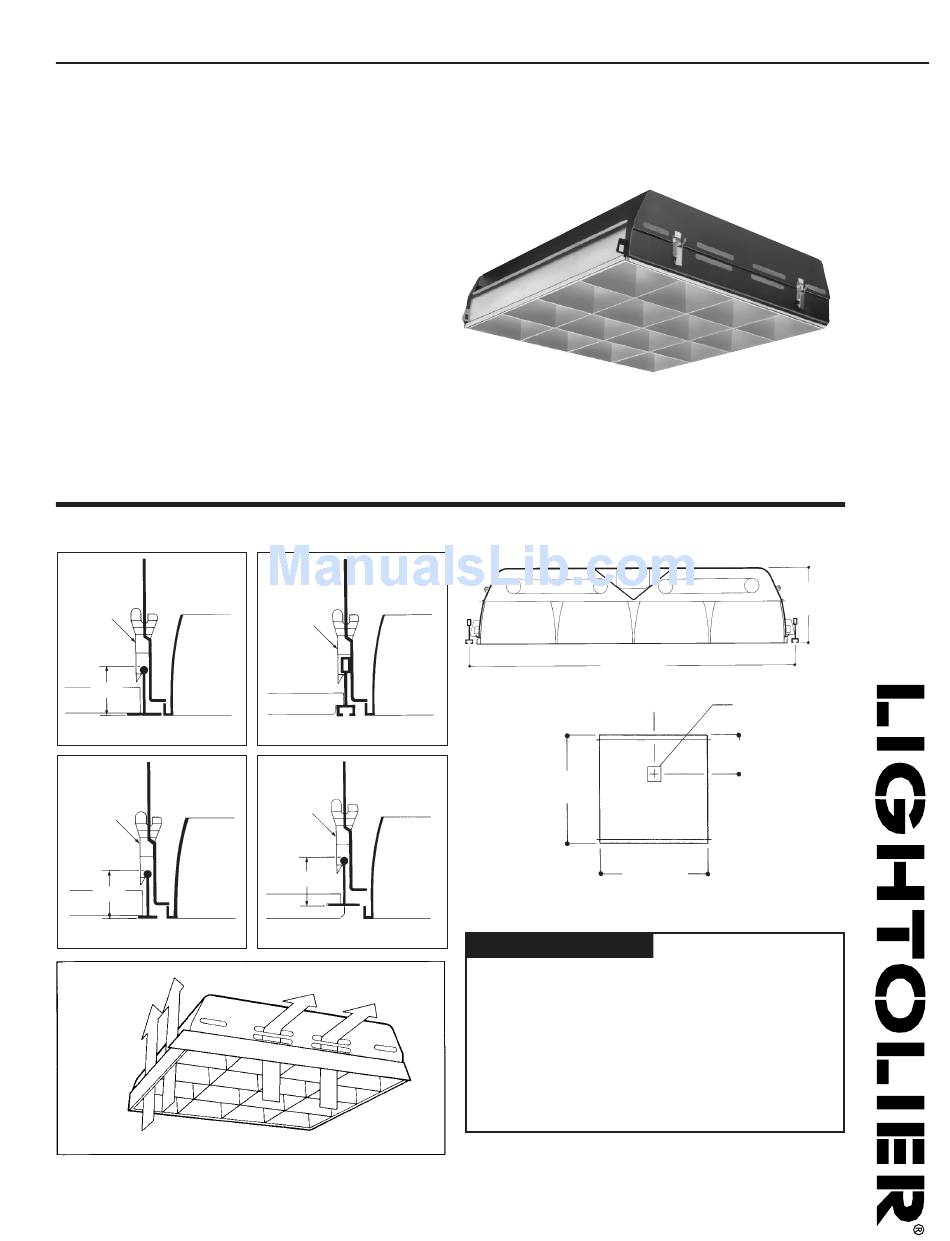

Lightolier Paralyte 2424 PLA2G120SO Installation Manual

Page 1 of 2

Features

• 23" x 23" louver
• Efficiency 59.3%.
• One fixture fits 50 different G type and T type ceiling systems.
• Only 5 1/2" deep housing.
• Automatic engaging adjustable seismic clips.
• Pre-anodized aluminum vertical grain parabolic louver.
• 3 1/8" deep louver.
• Low iridescence semi-specular aluminum, standard.
• Spring-loaded latches.
• Protective film dust guard.
• UL-Listed twin knockout access plate.
• Not for continuous row mounting.

Mounting Methods

Adjustable
seismic
clip
(patented)
*1-1/2"
standard grid
Adjustable
seismic
clip
(patented)
*1-1/2"
narrow grid system
air return
capabilities
exceed
standard
requirements
(see Folio
G50-50)
4/03

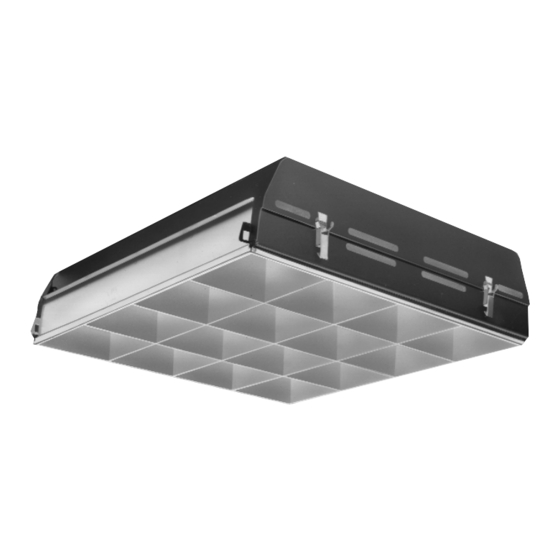

2' x 2' Recessed Fluorescent, 3-1/8" Deep, 16 Cell Parabolic Louver
*If less than 1 1/2", STC spacer is
required, 2 each end.
Adjustable
seismic
clip
(patented)
slot grid
Adjustable
seismic
clip
(patented)
*1-1/2"
two-directional concealed grid
PLA2G16LS26U
Paralyte 2424
Static and Air Return 2 Lamp, T8 or T12
Dimensions
24" (610mm)
24"
(610mm)
24" (610mm)
NOTE: Fixtures may be used for static or air return applications.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division)
A0902
5-1/2"
(140mm)
3" x 3" access
c L
plate with two
K.O.'s (7/8" dia.)
8-7/8"
(225mm)
Type:
www.lightolier.com
Section 2/Folio G50-53 Rev. A
