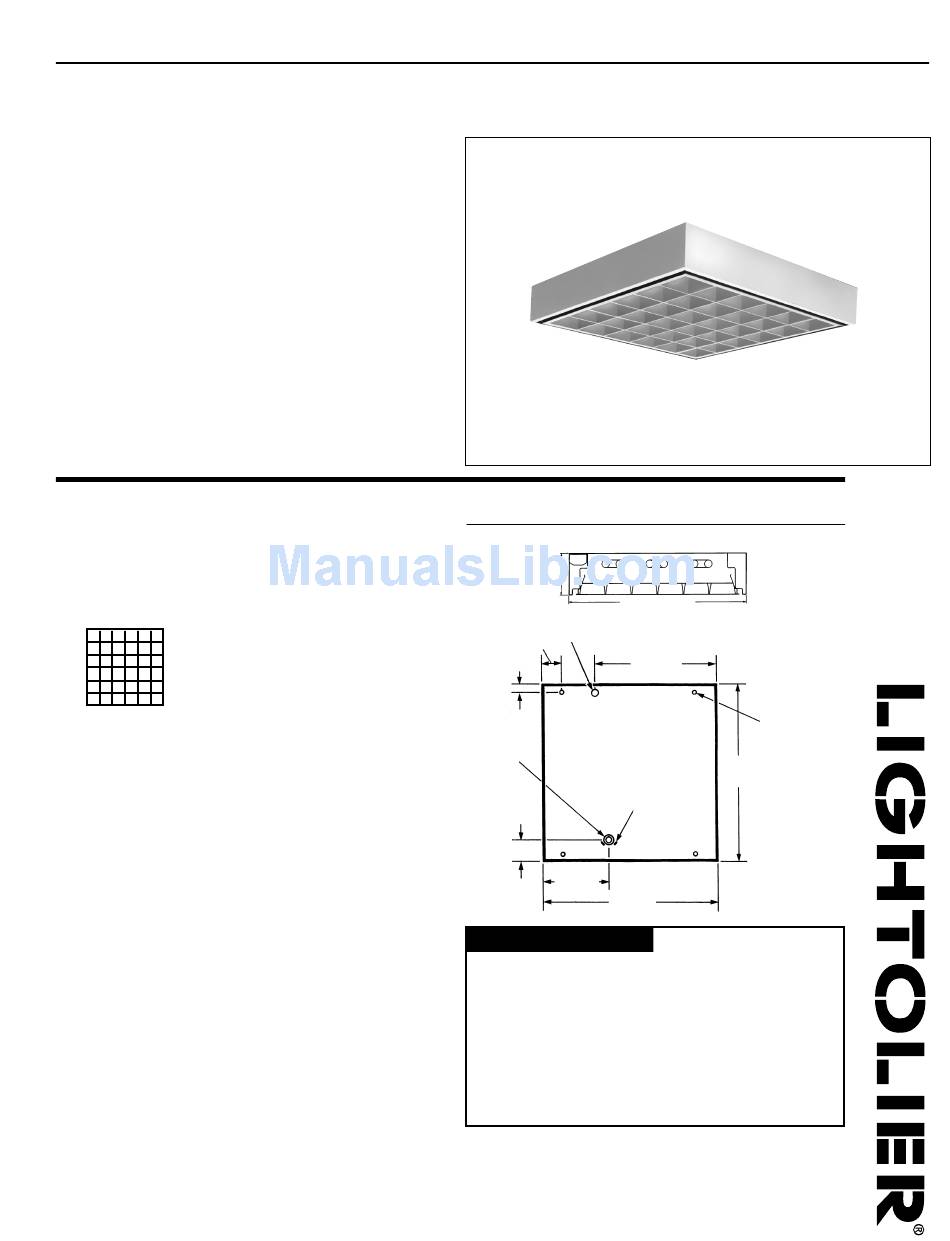

Lightolier PARABAFFLE (MLB) 2U Specifications

Page 1 of 2
FEATURES
• Only 5 1/2" deep.
• 20 gauge steel welded body.
• Efficiency 57.8% (2U T8).
• 1.5 spacing mounting ratio (2 lamp T8).
• Side mounted ballast for cooler operation.
• 45° mitered corners (body and louver).
• 1 1/2" deep, 3 1/2" x 3 1/2" cell aluminum parabolic louver.
• Spring-loaded latches.
• Perfectly uniform four side reveal.
• Low-iridescence, semi-specular aluminum louver, standard.
• Vertical grain on louver eliminates reflected lamp images on cross
baffle.
• Louver has polyethylene dust guard.
• Flush end K.O.s for smooth surface (at end of row or individual).
• Matches parabaffle 2'x2' recessed.
• Meets NYC Code requirements.
• Louver assembly can be replaced with any of 3 standard Lightolier
door frames.
LOUVER CONFIGURATION
36 Cell
PARABAFFLE (MLB)
2'x2' SURFACE BOX FLUORESCENT, 1 1/2" DEEP, 36 CELL PARABOLIC LOUVER
DIMENSIONS
7/8" Dia. K.O.
1-7/8" dia. K.O.
Lightolier
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
MLB SERIES 2U/3U
2-6"U LAMP T8/T12, 3-1.6U LAMP T8 OR TT5
5-1/2"
(140mm)
24" (610mm)
3"
7/8" K.O.
(76mm)
16-1/2"
(419mm)
1-1/4"
(32mm)
within
3/16" x 5/8"
K.O.
2" (51mm)
9-1/2"
(241mm)
24"
(610mm)
