Lightolier Mini-Beam 2' x 4' Recessed Fluorescent MBS2GPW254 Specification Sheet

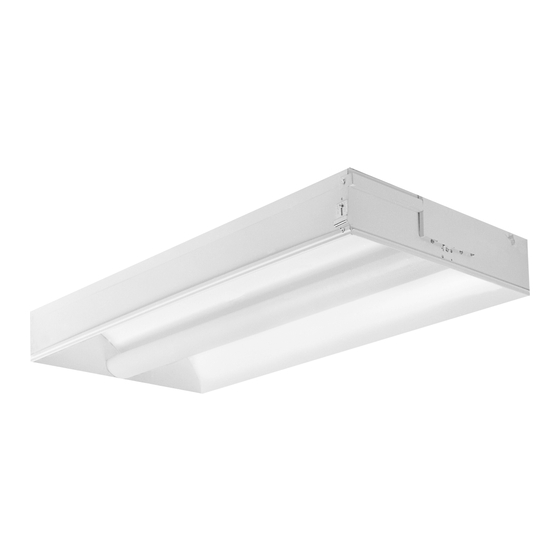

Mini-Beam 2' x 4' Recessed Fluorescent
Page 1 of 2
Features
• Direct/indirect lamp shield appearance with soft contoured
interior.
• Four inch wide perforated mesh lamp shield with white acrylic
overlay.
• 71.3% efficient.
• Only 5-1/2" deep.
• Same fixture fits both G and T ceiling types.
• Fits flush to face of slot grid (T) ceiling types.
• Lamp shield hinges from either side.
• Hinged external ballast housing compartment.
• Can be continuous row mounted.
• Wiring access plate standard.
• 4 hold-down clips standard.
• Housing is 20 gauge steel, meets NYC Code requirements.
• Optional DALI ballast accepts digital dimming commands from
computers, scene controllers and automatic control devices.
Mounting Methods
Exposed T-bar
by others
1-1/2"
max.
Acoustical
material
by others
15/16"
24"
Exposed t-grid ceiling
Features
Hold-down clips
3/04
Direct/Indirect, Static, 2 Lamp, Linear T5, 54 Watt or 28 Watt
Exposed T-bar
by others
1-7/8"
max.
Acoustical
material
by others
9/16"
24"
Exposed slot t-grid ceiling
Hinged external
ballast housing
compartment
Ballast
Hinged external ballast housing
compartment
Dimensions
Hinged external ballast housing compartment
24" (610mm)
2" x 2" access plate
3-1/2"
with two K.O.'s (7/8" dia.)
(89mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2004 Lightolier
MBS2GPW254
5-1/2"
(139mm)
4" (102mm)
48" (1219mm)
Type:
www.lightolier.com
Section 5/Folio M20-22 Rev. A
