Seiler Microlux IV Operation Manual

Hide thumbs

Advertisement

Quick Links

Microlux IV
LED
Operations Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Microlux IV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seiler Microlux IV

Summary of Contents for Seiler Microlux IV

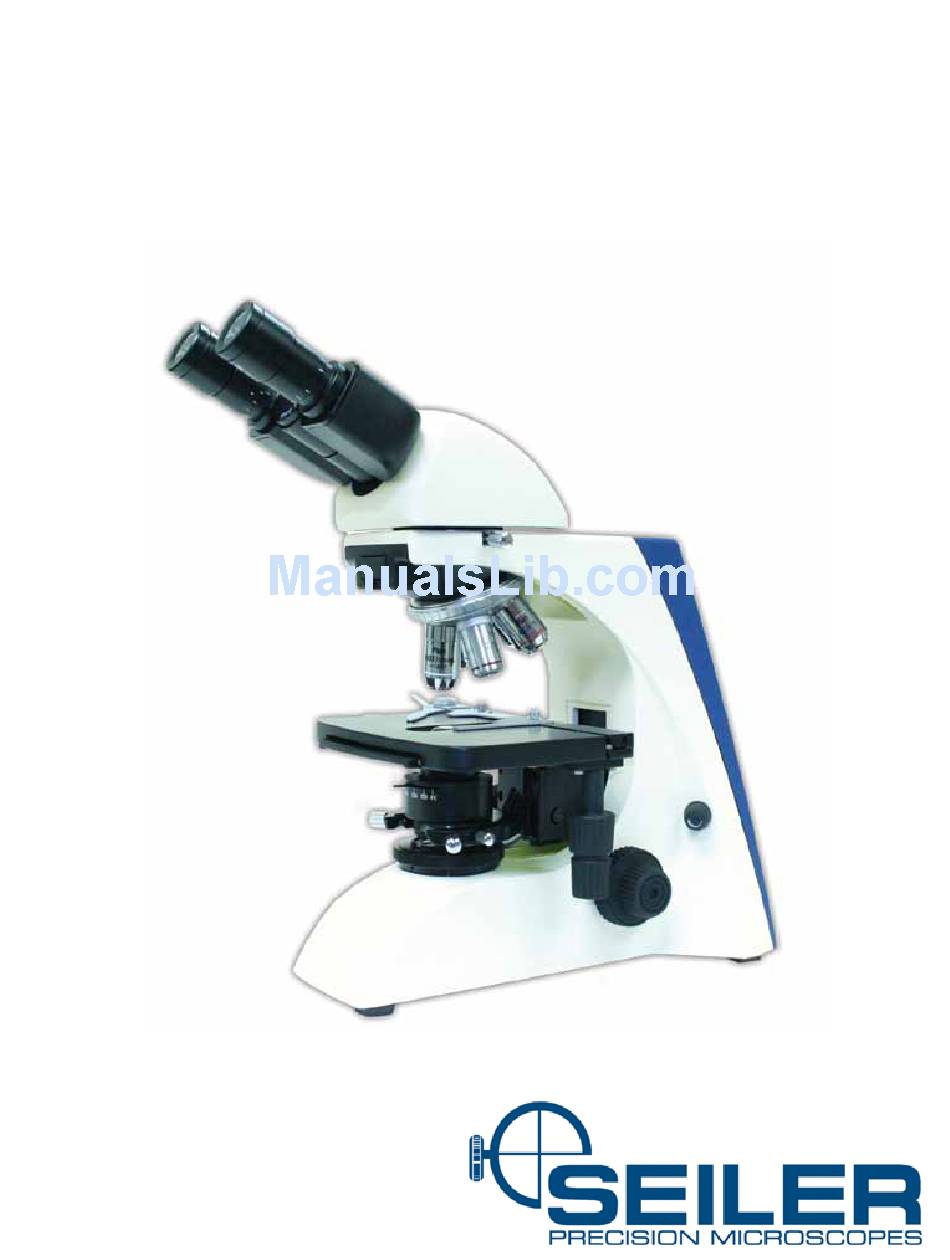

  • Page 1 Microlux IV Operations Manual...
  • Page 2 3433 Tree Court Industrial Blvd. St. Louis, MO 63122 (800) 489-2282 (314) 968-2282 Email: micro@seilerinst.com www.seilerinst.com...

  • Page 3: Table Of Contents

    Contents Parts Name 2. Specification Installation Operation Installation & Operation for Attachments Maintenance Troubleshooting 8. Outfits...

  • Page 4: Parts Name

    1. Parts Name B1. Head thumb screw A3. Eyepiece A3. Eyepiece A4. Nosepiece A1. Body B2. Diopter adjuster A5. Objective A9. Notch for attachment A6. Mechanical stage A7. Clamp A11. Conden set holder B3. Aperture diaphragm cover B4. Condenser Adjusting screw (left &...

  • Page 5: Specification

    A12. Handle B10. Condenser focusing screw A13. Power Input A14. Fuse B11. Power Switch B13. Coarse B14. Fine B12. Tension focusing knobs focusing knobs adjustment ring Fig. 1-2 A1. Body A2. Seidentopf binocular head A3. Eyepiece A4. Nosepiece A5. Objective A6. Mechanical Stage A7.
  • Page 6 2.2 Objectives (with eyepiece 10x) 2.3 The other specification 2.3.1 Mechanical tube length: 160mm 2.3.2 Conjugate distance: Finite 195mm Infinite 2.3.3 Head: Seidentopf binocular (trinocular) 30º Interpupillary adjustable distance is 50-75mm Diopter adjustable range ±5, Anti-fungal systems 2.3.4 Nosepiece: Quadplex or quinplex nosepiece 2.3.5 Mechanical Stage: Size 190mm X 140mm X-Y travel 55mm X 78mm 2.3.6 Focusing systems:...

  • Page 7: Installation

    3. Installation Please install the microscope as follows: 1 X CCD Adaptor Eyepiece Binocular Head Trinocular Head Notch obje Condenser N.A. 1.25 Filter Fig. 2 Installation Process: (see Figure 3 on page 5) Installing Lamp: LED is factory installed. Installing binocular head Loosen B1 binocular head thumb screw, put out A2 head, put it on top of body as in Fig.
  • Page 8 Fig. 3 A15 Lamp plate B15 Lamp plate screw Installing objectives Take out the objective from the packing box, and drive them into the holes of nosepiece orderly and tightly according to times. Installing eyepiece Take out the eyepiece tube cover, then get the eyepiece from the packing bag, and insert into the tubes. Installing condenser a.

  • Page 9: Operation

    4. Operation 4.1 Operation process instructions 1) Turn power switch, adjust light Turn on B11 power switch and turn B9 pentiometer Put the sample on A6 stage (open the clamp, and 2) Place the sample put the sample on it), turn B7, B8 stage knobs to put the sample into light path 3) Put 10X objective into light path and focus the sample...
  • Page 10 2) Sample placing Put the sample (cover is up) on stage A6 and fit it with clamp A7. Turn B7, B8 stage knobs to put the sample into the light path (Fig. 4). Two samples can be placed on the stage together Fig.
  • Page 11 5) Condenser and aperture diaphragm adjustment Fig. 7 a. Condenser up-down Turn the condenser focusing screw B10 to adjust the distance between condenser front and the specimen, and change the equal illumination to obtain the best brightness. b. Aperture diaphragm adjustment Stir the handle of iris aperture of condenser to adjust size of iris aperture for ajusting the contrast of the specimen.

  • Page 12: Maintenance

    After immersion oil is used, the oil of specimen and the microscope surface should cleaned by absorbent cotton, lens paper, gauze or soft cotton cloth with moderate mixture of pure industrial alcohol and ether (proportion 1:4) Standard thickness 0.17mm cover glass should be chosen when high times objective used, and thickness error should be within 0.01mm, otherwise, image definition would be affected.

  • Page 13: Troubleshooting

    Replacement of fuse (shown in Fig. 8) 6.4.1 Cut off power of microscope and pull out th plug. 6.4.2 Unscrew fuse cap in the back of the base. Remove old fuse. 6.4.3 Replace with a new fuse and screw on fuse cap. Troubleshooting In the period of using, if any trouble occurs, please refer to the following chart for some common resolutions.
  • Page 14 Trouble Remedy Cause Lens (objective, eyepiece, condenser,light collector) Clean it has dust Brightness of view field isn’t enough or Position of condenser Higher condenser is uneven is too low Cover glass of specimen Use required thickness cover doesn’t meet the glass (0.17mm) requirement Cover glass of specimen...
  • Page 15 PRECISION MICROSCOPES A Division of Seiler Instrument Company We are here to serve you! If you have any questions regarding Seiler’s products or services, please feel free to contact us. Toll-Free: 800.489.2282 Local: 314.968.2282 Fax: 314.968.3601 www.seilerinst.com • Microscope Division Manager Dane Carlson ext. 365 • dcarlson@seilerinst.com...
