OPERATING MICROSCOPE
OWNERÕ S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution ZOOM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seiler Evolution ZOOM

Summary of Contents for Seiler Evolution ZOOM

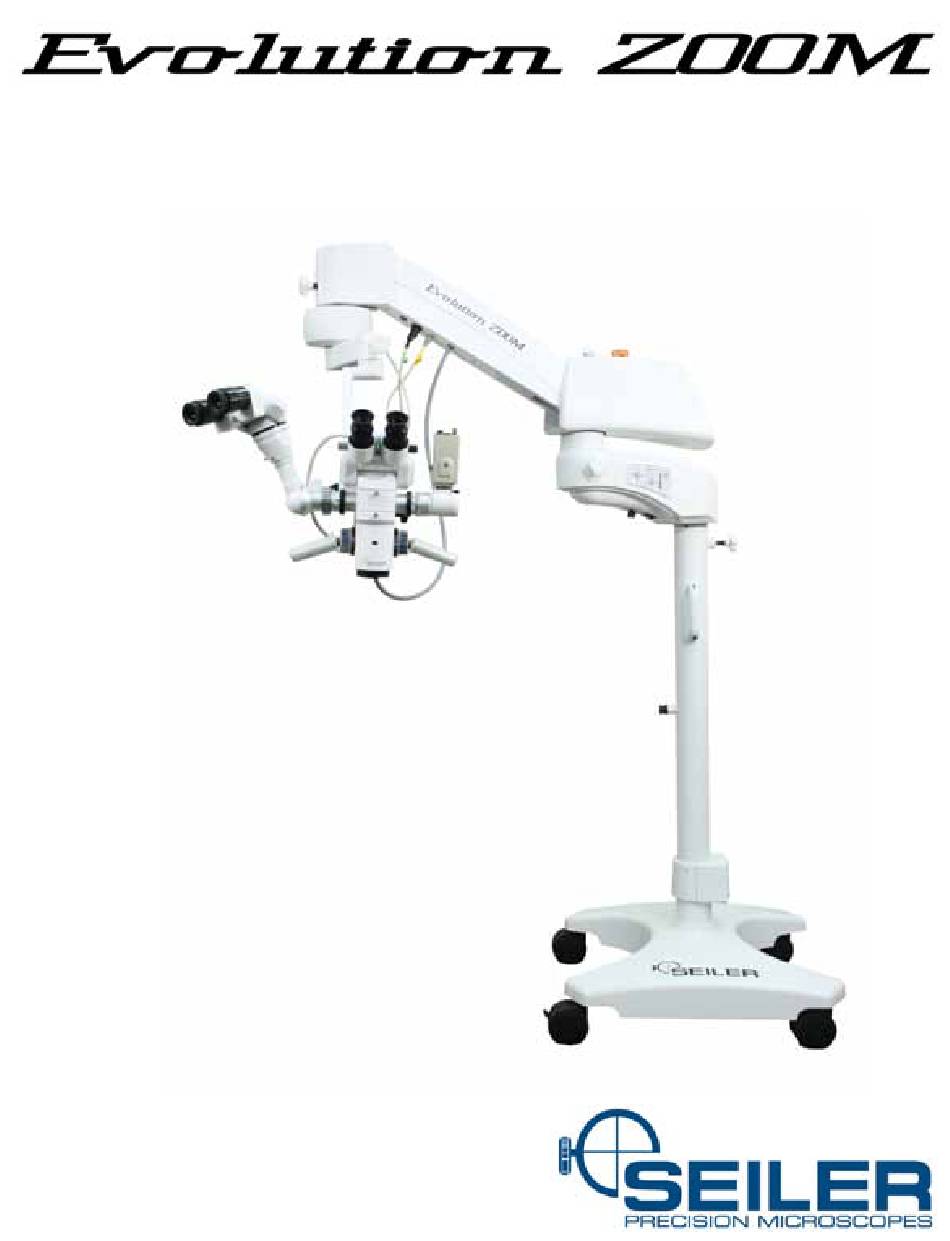

  • Page 1 OPERATING MICROSCOPE OWNERÕ S MANUAL...
  • Page 2 We are here to serve you! If you have any questions regarding Seiler’s products or services, please feel free to contact us. : 800.489.2282 : 314.968.2282 : 314.968.3601 : micro@seilerinst.com : www.seilerinst.com • Division Manager Dane Carlson ext. 365 • dcarlson@seilerinst.com •...

  • Page 3: Table Of Contents

    Contents 1. IntRoDUCtIon Dear customer, thank you for choosing this product. 2. CoMPonents Structural Illumination: Control Optical Module Control Pedal 3. AsseMBLY Unpacking Column, Control Box and Pantographic Arm Optical Module Electrical Connections 4. UsInG tHe MICRosCoPe Moving the Optical Module Switching on the unit Diopter Adjustment.
  • Page 4 Seiler has developed this device in due accordance with global quality requirements, giving priority to safety, electromagnetic compatibility and failure management, thereby establishing the Seiler Microscopes Evolution Zoom as a highly safe, reliable and robust device. The main quality standards employed were based upon the standards set out...

  • Page 5: Introduction

    Introduction DEAR CUSTOMER, THANK YOU FOR CHOOSING THIS PRODUCT. The Seiler Microscopes Evolution Zoom, you have chosen to purchase is a modern, reliable device, which has been designed using the most advanced optical design tools available on the market. In addition to its optical superiority, the design was based around refining image quality and providing a product, which is ergonomic and easily handled by users.

  • Page 6: Components

    2. Components To make it easier to identify the sub-parts of the microscope, the Seiler Microscopes Evolution Zoom is divided into modules, as shown in the figure below: Modules STRUCTURAL The mechanical module, with structural function, consists of Column (I) and Pantographic Arm (IV). ILLUMINATION: Joined to the Pantographic Arm (IV) is the Illumination Box (III), which generates light. The light is supplied to the working area by means of an Optical Fiber Cable to the microscope’s Optical Assembly (VII), which is made up of a...

  • Page 7: Control Pedal

    - 9 - Seiler Microscopes Evolution Zoom – Evolution Zoom CONTROL PEDAL ONTROL EDAL The Control Pedal (VIII) is fundamental to the perfect functioning of the microscope. If it is not connected to the mi- The Control Pedal (VIII) is fundamental to the perfect functioning of the microscope. If it is not croscope, the device will not work.
  • Page 8 Zoom Optical Module with 200º Inclinable Binocular Head (Standard Binocular Head) In this configuration the two knobs on the sides of the Optical Module can be assembled in six different positions, in accordance with user preference. To do this, unscrew the nut that fastens the knob to the body, remove it, change its position and fasten it in place again.
  • Page 9 – 6 –...
  • Page 10 – 7 –...

  • Page 11: Assembly

    The Seiler Microscopes Evolution Zoom is placed in boxes to protect it during transportation. Check the boxes for damage or signs of violation: contact Seiler immediately in the event of any irregularity. The Seiler Microscopes Evolution Zoom should ideally be transported in its original packaging. We recommend that said packag- ing be kept in case it is required in the future.

  • Page 12: Column, Control Box And Pantographic Arm

    Please note: the greatest care should be taken when handling modules II, III and IV, COLUMN, CONTROL BOX AND PANTOGRAPHIC ARM since module III are finished with an outer coating consisting of injected layers which Please note: the greatest care should be taken when handling modules II, III and IV, since module III are finished with have no structural function. Any sharp impact on one of these layers may result in an outer coating consisting of injected layers which have no structural function.

  • Page 13: Optical Module

    Please note: The Optical Module is the most delicate of the Modules. Please take care when assembling, using and transporting the module. This Module is assembled to the OPTICAL MODULE Optical Module Support. Please note: The Optical Module is the most delicate of the Modules. Please take care when assembling, using and transporting the module.

  • Page 14: Electrical Connections

    Please note: Please take care when connecting the cables as the connector pins are ELECTRICAL CONNECTIONS fragile. When it is necessary to use a transformer, it is recommended to use one that is insulated. Please note: Please take care when connecting the cables as the connector pins are fragile. When it is necessary to use a transformer, it is recommended to use one that is insulated.

  • Page 15: Using The Microscope

    Using the Microscope Please note: Users are requested to carefully read this manual and familiarize themselves with the possible movements and settings so as to be able to use the Seiler Microscopes Evolution Zoom properly. This device should only be used by qualified personnel.
  • Page 16 The Optical Module of the Microscopes Evolution Zoom can be turned to left or right. It can be made by loosing the Optical Module Right/Left Rotation System Fixing Knob, positioning the module as desired and tighten again this knob. The Optical Module can also be turned to back and front position by loosing the Optical Module Forward/Back- ward Movement Fixing Knob, adjusting its position and tighten it again. These knobs can be left slightly tightened in order to allow the Optical Module to rotate, but not freely.
  • Page 17 • Please note: there is a spring inside the Pantographic Arm to ensure that it moves smoothly and accurately; the spring’s tension is not preset at the factory, because its tension needs to be slackened during transport. It must therefore be adjusted using the Spring Adjustment Knob. Where new accessories are added to the Optical Module, increasing the weight to be balanced by the Pantographic Arm, the Spring Adjustment Knob should be turned anti-clockwise. Pay attention to any possible involuntary downward movement of the set when increasing the weight by adding accessories. Ideal setting: when moved upwards or downwards, the Pantographic Arm remains in the new position without having to tighten the Locking Knob of the Pantographic Arm Joint.

  • Page 18: Switching On The Unit

    SWITCHING ON THE UNIT • Connect the Power Supply Cable to the Electrical Panel’s AC Cable Connector and to grounded electrical socket; • Press the Main On/Off Switch located on the Control Box; • Adjust the illumination brightness by turning the Illumination Brightness Adjustment Button located on the Control Box; • The Pedal can be used to control the Zoom and Microfocus. Please note: the Pedal electrical circuit is not completely sealed (waterproof); avoid spilling water directly onto it and protect it when cleaning the area where the unit is installed, hanging it by its Transport Handle from the Pedal Handle attached to the Column. –...

  • Page 19: Diopter Adjustment

    IOPTER DJUSTMENT IOPTER DJUSTMENT DIOPTER ADJUSTMENT. The diopter adjustment aims at adapting the microscope to the user’s eyes, reaching The diopter adjustment aims at adapting • The diopter adjustment aims at adapting the microscope to the the maximum efficiency in the image view the microscope to the user’s eyes, reaching user’s eyes, reaching the maximum efficiency in the in the microscope.

  • Page 20: Adjusting The Focus, Diopters And Interpupillary Distance

    ADJUSTING THE FOCUS, DIOPTERS AND INTERPUPILLARY DISTANCE • Center the Microfocus System, press the Microfocus Centering Button; • Loosen the Locking Knob of the Pantographic Arm Joint, then position the microscope Optical Module at a distance from the working area which is roughly the same focal distance from the objective lens in use and retighten it lightly if required; • The fine focus adjustment is made using the microfocus adjustment pedal on the Pedal; • On the Control Panel there are two red indicator lights, which correspond to the microfocus function. These light up during adjustment, indicating the direction of the movement. When the microfocusing end-of-range is reached, a beep is emitted when the pedal is pushed down. When the microfocus is at its end-of-range, the indicator light remains lit up; • For an extra-fine focus adjustment, you may select the maximum possible magnification of the Optical Module and find the best possible focus using the microfocus system. This will mean that, for increases to other controls, the focus will already be at its optimum;...
  • Page 21 – 18 –...

  • Page 22: Using The Xy System (Optional)

    USING THE XY SYSTEM (OPTIONAL) • The XY system can be moved using the Foot Stick. • Just as with the microfocus function, light indicators show the direction of movement and a beep is emitted when the end-of-range is reached; • To center the two shafts at the same time, press the Center button located between the four XY light indicators. – 19 –...

  • Page 23: Using The Inclinable Binocular

    SING THE NCLINABLE INOCULAR USING THE INCLINABLE BINOCULAR - 25 - Seiler Microscopes Evolution Zoom – Evolution Zoom The Inclinable Binocular Head can be moved (inclined) manually; • The Inclinable Binocular Head can be moved (inclined) In order to do this, incline the eyepieces manually; manually to the position desired.

  • Page 24: Maintenance, Handling And Hygiene

    Maintenance, Handling and Hygiene Please note: this manual must be read in order for it to be possible to clean and maintain the Seiler Microscopes Evolution Zoom. This shall only be performed by qualified personnel. The use of corrosive chemical or other chemical products is not advisable. WHEN THE BULB BURNS OUT DURING USE • In order to avoid possible interruptions to work caused by a bulb burning out, the microscope is fitted with an extra bulb ready for use. To switch bulbs, simply turn the Bulb Selection Switch.

  • Page 25: Changing The Bulb

    Check whether the set is hot, if it is hot, wait a few minutes until it has cooled down; CHANGING THE BULB Loosen the four screws holding the Illumination Box Cover in place, and remove it; Release the two Electrical Sockets which supply the Bulbs; • Shift the On / Off switch on the Control Box to the off position and disconnect the device from the mains;...

  • Page 26: Changing The Fuses

    The device comes with two spare fuses. Changing the fuses ENERAL CLEANING It is highly recommended that the Seiler Microscopes Evolution Zoom is not exposed to GENERAL CLEANING dust and other contaminating substances. Always cover the Optical Module with the Protective Cover when the unit is not being used;...

  • Page 27: Control Items Handling And Hygiene

    ANDLING AND YGIENE The Seiler Microscopes Evolution Zoom has been developed so as to enable the control elements used during the pro- cedure to be cleaned easily. The Seiler Microscopes Evolution Zoom has been developed so as to enable the control elements used during the procedure to be cleaned easily.

  • Page 28: Discard

    The discarding of the Seiler Microscopes Evolution Zoom and the used accessories, after its useful life, it’s a user’s responsibility and they must take care with the local and effective legislation in his region.

  • Page 29: Technical Details

    technical Details GENERAL DETAILS Vertical Working Height: minimum 27.5 inches and maximum 56 inches (without XY) (with XY Positioning System, minimum 26 inches and maximum 55 inches) Dimensions [Height x Length x Width]: 73 inches x 73 inches m x 31 inches. Microfocus vertical adjustment limit: 40 mm. Weight: 200 lbs. (not including accessories). Gross weight including packaging: 330 lbs.

  • Page 30: Accessories

    This guarantee shall be automatically cancelled should the device be used in any manner other than that recommended in this User’s Manual. Seiler shall not be liable for any personal injury, harm or damages arising out of the misuse of this device. – 27 –...
  • Page 31 3433 Tree Court Industrial Blvd. St. Louis, MIssouri 63122 (800) 489-2282 (314) 968-2282 Fax: (314) 968-3601 Email: micro@seilerinst.com Web: www.seilermicro.com...
