SUMMIT
VSU-E30AS
VSU-E36AS
Model number:
Serial Number:
AUG12.0401
PLATEAU
CRESCENT
VPL-E30AS
VCR-E30AG
VPL-E36AS
VCR-E36AG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSU-E30AS and is the answer not in the manual?

Questions and answers

Andrew Woofter
March 4, 2025

The lights do not work and blows fuse the **** works

1 comments:
Mr. Anderson
May 14, 2025

The lights not working could be caused by a defective halogen bulb or a loose light bulb. Blowing a fuse could result from improper grounding or electrical connection. The appliance must be connected to a properly grounded 120V 60Hz circuit protected by a 15 or 20 amp circuit breaker or time delay fuse. Ensure no fuse is in the neutral or ground circuit.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Valore VSU-E30AS

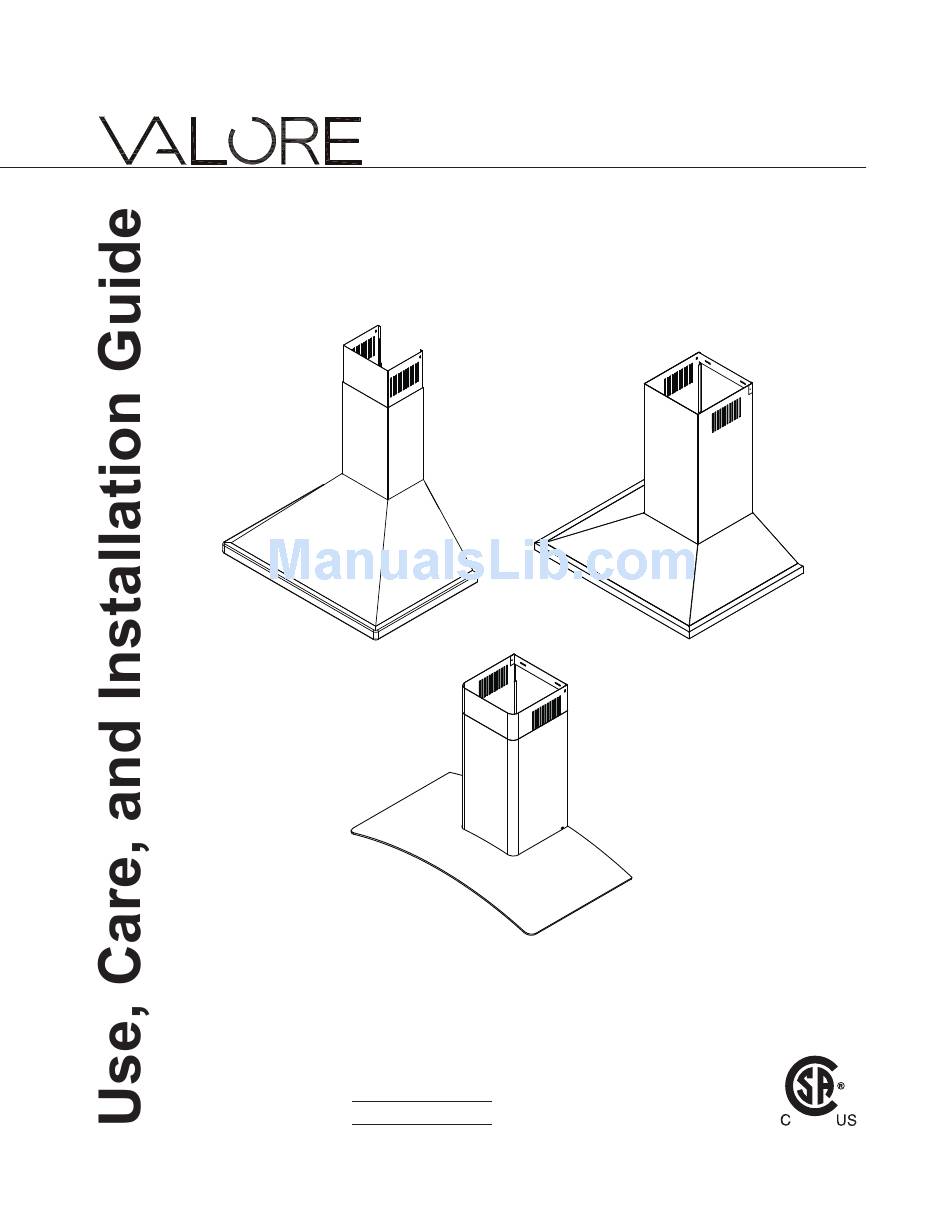

  • Page 1 SUMMIT PLATEAU CRESCENT VSU-E30AS VPL-E30AS VCR-E30AG VSU-E36AS VPL-E36AS VCR-E36AG Model number: Serial Number: AUG12.0401...
  • Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations 8-10 ........... Mounting the Hood VSU .......... Mounting the Hood VPL ......... 12 Mounting the Hood VCR......... 13 Ductless Recirculating ..........
  • Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
  • Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi...
  • Page 6 MODELS: VSU, VPL, VCR PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - Hardware package 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs 2 - Aluminum mesh filters 1 - Canopy, glass (VCR models only) HARDWARE PACKAGE CONTENTS...
  • Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
  • Page 8 Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than * Min. ducted (A) 34”. Min. recirc. (B) Max. It is important to install the hood at the proper mounting height.
  • Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
  • Page 10 Standard Duct Cover Min. ducted 27 ” Min. recirc. 32” Max. ducted 42 ” V1C-00SU Extension Min. ducted 46 ” Min. recirc. ” Max. ducted 80”...
  • Page 11 Standard Duct Cover Min. ducted 27” Min. recirc. 31” Max. ducted 48” V1C-00PL Extension Min. ducted 43 ” Min. recirc. ” Max. ducted 81”...
  • Page 12 Standard Duct Cover Min. ducted 23” Min. recirc. 27” Max. ducted 42” V1C-00CR Extension Min. ducted 41 ” Min. recirc. ” Max. ducted 80”...
  • Page 13 CAUTION: At least two installers are required due to the weight and size of the hood. Duct Cover Bracket 1. Measure from range top to hood bottom and mark line A. (26” minimum from range top) . 2. Plum and mark center line. 3-1/2"...
  • Page 14 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. (26” minimum from range top) . 2. Plum and mark center line. 3.
  • Page 15 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. (26” minimum from range top) . 2. Plum and mark center line. 3.
  • Page 16 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re- circulated back within the home.
  • Page 18 Blower On/Off Lights Bright/Dim/Off Blower Speed Selection Delay Off Timer Blower On/Off Press to turn blower on and off. If lights are on they will also switch off when this button is pressed. Blower Speed Selection Press to cycle through blowers speeds I, II and III Lights Bright/Dim/Off Press to cycle through light levels Bright, Dim and Off...
  • Page 19 SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
  • Page 20 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
  • Page 21 TROUBLESHOOTING PROCEDURES FOR VSU, VPL AND VCR Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
  • Page 22 DESCRIPTION PART# Replacement Parts Light Bulb GU-10 50W (each) Z0B-0020 Optional Accessories Recirculating Kit VRC-00SU (for VSU) VRC-00PL (for VPL) VRC-00CR (for VCR) Replacement Charcoal Filter (each) V0F-C002 Extension Duct Cover V1C-00SU (for VSU) V1C-00PL (for VPL) V1C-00CR (for VCR) Order replacement parts from us by calling 1.888.750.1698 Accessories can be ordered through Costco.com...
  • Page 23 STAPLE YOUR RECEIPT HERE Proof of the original purchase Limited Warranty date is needed to obtain service under warranty TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-750-1698 Venting Services (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you”...

This manual is also suitable for:

Vsu-e36asVpl-e30asVpl-e36asVcr-e30agVcr-e36ag
