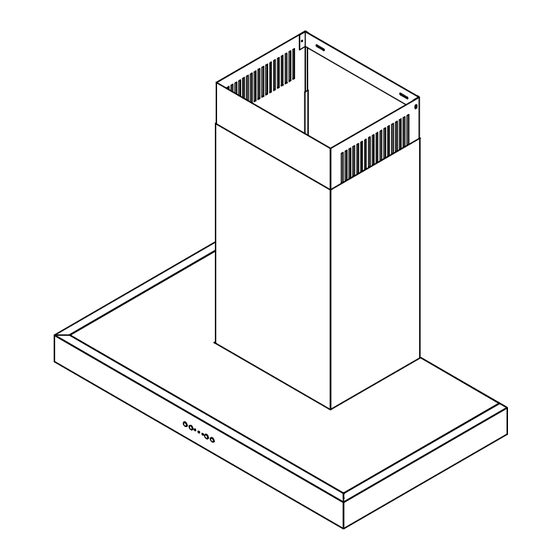

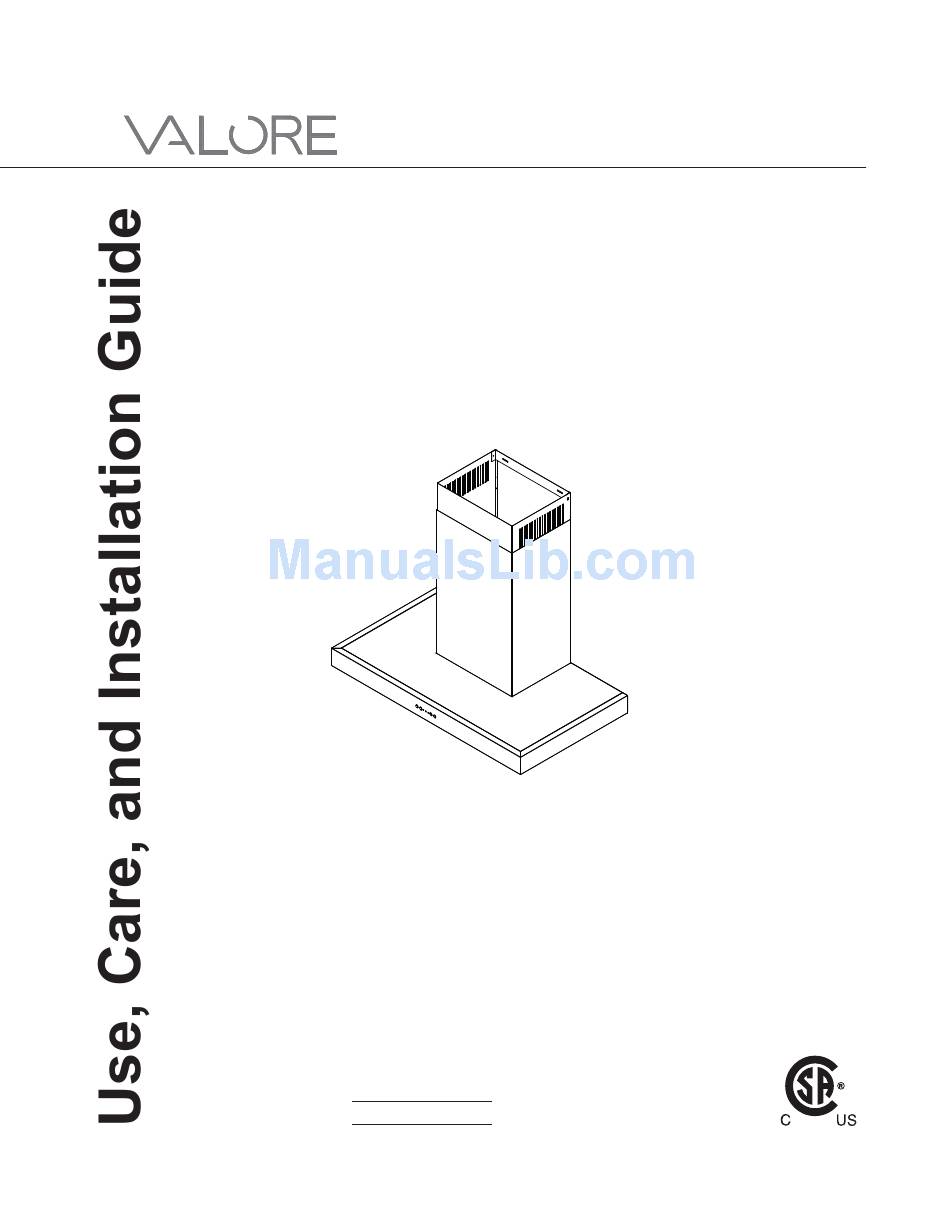

- Page 1 Lateral Wall VLA-E30AS VLA-E36AS Model number: Serial Number: JUN11.0101...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Hood ............. Ductless Recirculating ..........FEATURES & CONTROLS Electronic Controls ............. MAINTENANCE Hood and Filter Cleaning .........
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. VLA-E30AS, VLA-E36AS - 400 Watts, 3.4 Amps...
- Page 6 MODELS: VLA-E30AS, VLA-E36AS PARTS SUPPLIED 1 - Hood with internal blower 1 - Duct cover wall bracket 1 - Duct cover assembly (top and bottom) 1 - Hardware package 1 - 6” round backdraft damper (pre-installed) 2 - 50W GU-10 halogen light bulbs...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6” to 7” or 8”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 11” ” ” 1/16 STANDARD min. ducted - 26” min. recirc. - 31” max. - 53” V1C-00LA EXTENSION min. ducted - 42” min. recirc. - 46” max. - 80” ” 1/16 , 35 ” 15/16” 7/16 FRONT SIDE ” 3/16...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to desired hood bottom location and Duct Cover Bracket mark line A. (26” minimum from range top) . ” 2.
- Page 12 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re- circulated back within the home.
- Page 13 Blower On/Off Lights Bright/Dim/Off Blower Speed Selection Delay Off Timer Blower On/Off Press to turn blower on and off. If lights are on they will also switch off when this button is pressed. Blower Speed Selection Press to cycle through blowers speeds I, II and III Lights Bright/Dim/Off Press to cycle through light levels Bright, Dim and Off...
- Page 14 SURFACE MAINTENANCE: Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
- Page 15 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
- Page 16 TROUBLESHOOTING PROCEDURES FOR VLA Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 18 DESCRIPTION PART# Replacement Parts Light Bulb GU-10 50W (each) Z0B-0020 Optional Accessories Recirculating Kit VRC-00LA Replacement Charcoal Filters (Qty 2) V0F-C002 Extension Duct Cover V1C-00LA Order replacement parts from us by calling 1.888.750.1698 Accessories can be ordered through Costco.com...
- Page 19 1-888-750-1698 Valore (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Valore products (the “Products”) that such Products will be free from defects in materials or workmanship as...
