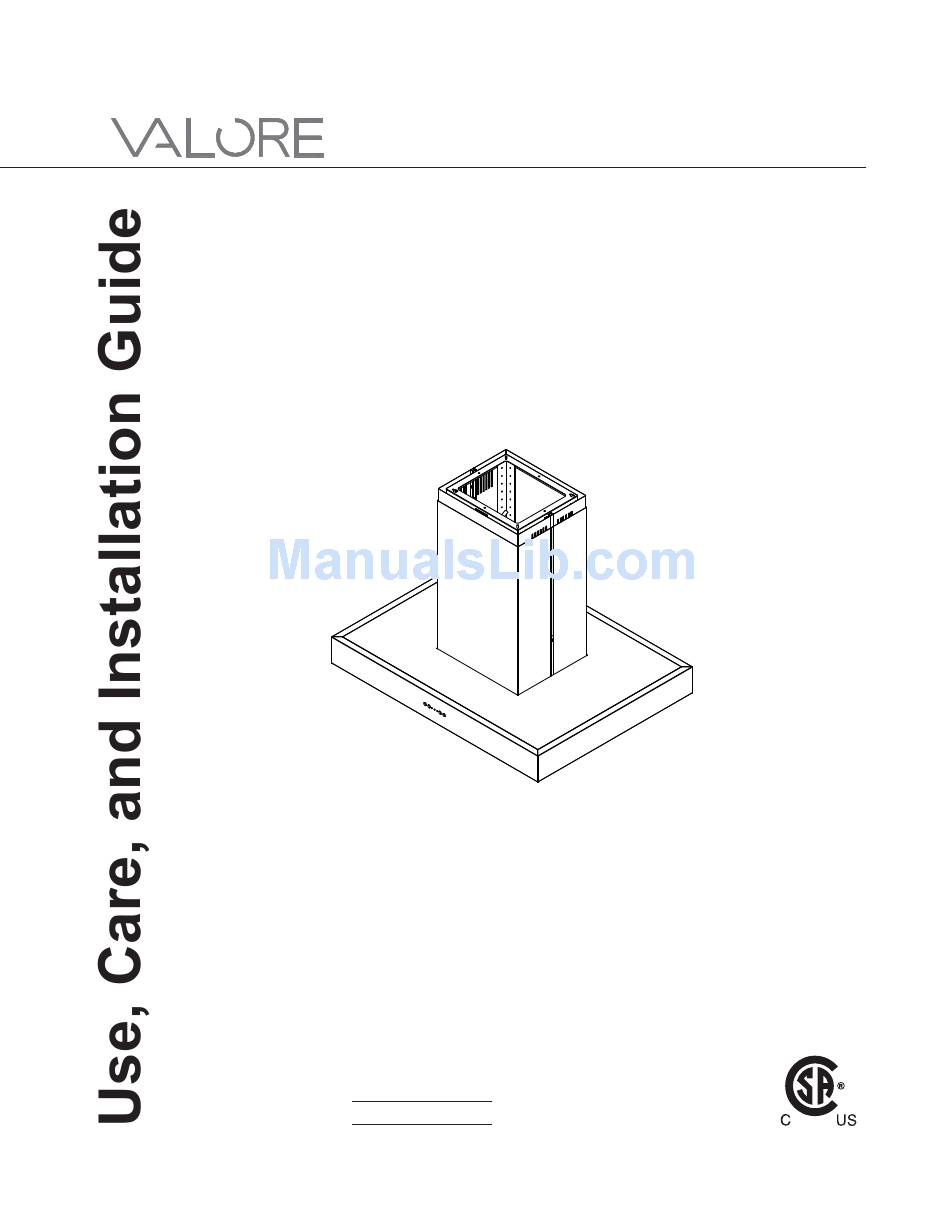

- Page 1 Lateral Island VLT-E36AS VLT-E42AS Model number: Serial Number: JUN11.0101...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Hood 9-10 ............. Ductless Recirculating ..........FEATURES & CONTROLS Electronic Controls ............. MAINTENANCE Hood and Filter Cleaning .........
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. VLT-E36AS, VLT-E42AS - 500 Watts, 4.2 Amps...
- Page 6 MODELS: VLT-E36AS, VLT-E42AS PARTS SUPPLIED (2) Thick Trim Pieces (2) Top Duct Covers (1) Top Support Frame Front of Hood Cut-Out Shaded Area (1) Paper ceiling template (2) Thin Trim Pieces (1) Bottom Support Frame (2) Bottom Duct Covers (1) 6” round damper (pre-installed) (4) 3/16 *1/2”...
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
- Page 8 ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6” to 7” or 8”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.
- Page 9 and installer. WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 Side Front 12” 14” ” 1/16 STANDARD min. ducted - 28” min. recirc. - 30” max. - 41” V1C-00LT EXTENSION min. ducted - 50 1/2” min. recirc. - 54 1/2” max. - 79” , 41 ” 7/8” ” " 3/16...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. Ceiling Joists Wood Blocking Top Support Frame Support Frame Arm FIG. B Bottom Support Frame Top Support Frame Bottom Support Frame (secures to top of blower housing) back Key Holes Blower Housing...
- Page 12 Cable Lock A cable locking connector (not Top Support Frame supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. Top Duct Covers Thick Trim Piece Cable Lock Thin Trim Piece Bottom Duct Covers FIG.
- Page 13 fi lters help to purify fumes exhausted from cooking for recirculation. RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED) Kit includes charcoal fi lters, brackets and air diverter plate. Hood Models Part No. Filters & Brackets in pkg. VLT-E36AS VRC-00LT VLT-E42AS VRC-01LT Air Diverter Plate 1.
- Page 14 Blower On/Off Lights Bright/Dim/Off Blower Speed Selection Delay Off Timer Blower On/Off Press to turn blower on and off. If lights are on they will also switch off when this button is pressed. Blower Speed Selection Press to cycle through blowers speeds I, II and III Lights Bright/Dim/Off Press to cycle through light levels Bright, Dim and Off...
- Page 15 SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain.
- Page 16 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
- Page 17 TROUBLESHOOTING PROCEDURES FOR VLT Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 DESCRIPTION PART# Replacement Parts Light Bulb GU-10 50W (each) Z0B-0020 Optional Accessories Recirculating Kit, VLT-E36AS VRC-00LT Recirculating Kit, VLT-E42AS VRC-01LT Replacement Charcoal Filters (Qty 2) V0F-C002 Extension Duct Cover V1C-00LT Order replacement parts from us by calling 1.888.750.1698 Accessories can be ordered though Costco.com...
- Page 20 1-888-750-1698 Valore (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Valore products (the “Products”) that such Products will be free from defects in materials or workmanship as...
