Wideband Digital Aerial Kit
27880D/01
USER GUIDE
Congratulations on the purchase of your wideband aerial which is designed to receive both analogue and digital terrestrial signals.
This aerial has been manufactured to the standard required to get the best reception of digital terrestrial TV services (such as Freeview™). If the
aerial is to be used for DTT reception check before installation at www.dtg.org.uk/retailer/coverage.html to confi rm that your home is in a coverage
area and to fi nd out where your local transmitter is. For optimum results install the aerial using double screened digital coax cable and screened
coax outlets.

Main Features

Wideband – suitable for all UK TV reception areas, covering UHF channels 21 to 68
Receives both digital and analogue TV signals
Suited for strong signal strength areas only
The aerial requires some assembly - please read these instructions carefully before beginning.

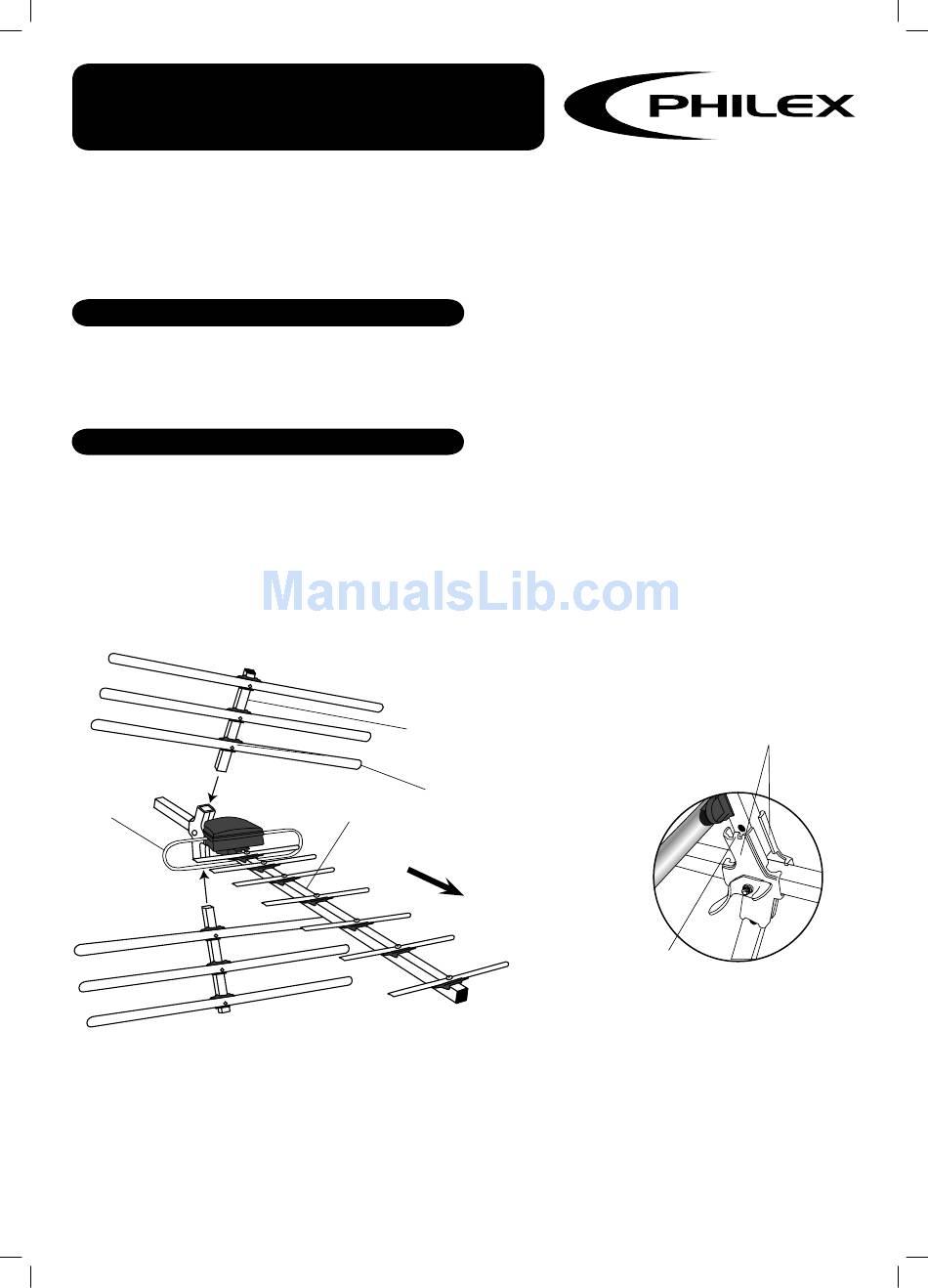

A. Fitting the refl ectors
1. Using the refl ector clamps, screw and large wing nut, fi x
the refl ector assemblies to the main aerial boom as
shown in Fig. 1 & Fig. 2.
2. Check that the refl ector clamp tabs locate in the holes
of the refl ector boom sections and that the wing nut
is tight as shown in Fig. 2.
2. Ensure that the refl ector elements are facing towards the
front of the aerial (convex surface forward).
Fig.1
dipole
Please Note: Coaxial cable, mountings and masts are not supplied with this aerial. You will need to select these from the range
available according to the specifi c requirements of your installation. The quality of the coaxial cable used is as important as
the quality of the aerial and you should make sure that if it is not specifi cally marked as suitable for digital TV it is of the same
quality as that used for digital satellite installations.
refl ector boom
assembly
refl ector
element
central boom
front of aerial
refl ector
clamps
Fig. 2
engage
tab
in hole
