SET-UP GUIDE
28211R
This Free-to-Air Installation Kit, can be fitted by a
competent DIYer, but please note warnings below.
WARNING
and poles/masts you need to take into consideration: a.) The state
and type of surface being mounted to. b.) The weight of the
assembly to be mounted c.) The exposure to and effect of
prevailing winds. Fixings and brackets supplied with this product
may not be suitable for your particular installation. If in doubt please
consult a CAI registered installer.
GENERAL SAFETY
reduced by planning before starting a project. Before starting
installation check structure is sound and check for hidden
electrical wiring or plumbing. • When working on an installation
outside, beware of overhead power lines. • Before making any
connections switch electricity off at the mains. • Always follow
manufacturer's operating and safety instructions when using
tools and equipment. • Only carry out work outdoors at height if
you are competent in the use of ladders and related access
equipment. • Always read and follow the manufacturer's
instruction label affixed to the ladder. • To avoid injury always
route cables or wiring carefully. Ensure cable is correctly
routed before fixing into position, taking care not to over
tighten cable clips . • This product may contain small parts
keep out of reach of children. • After installation make regular
maintenance checks for wear and tear.
1) Identify your South Facing Wall: The dish needs to
be on a South facing wall in order to pick up the
Astra 2A, 2B, 2D and Eurobird1 satellites. Identify your
south facing wall and look to mount your satellite dish
on the outside of the wall, at the nearest point to your
main TV. Tip: Look at your neighbours' houses someone is sure to have Sky, see which
way their dish is facing. If none of your neighbours have Sky, you can use
a compass to determine which wall faces south.
Please note
that the
mounting
bracket can
be mounted
Wall Mount
on either a wall or a flat roof.
2) Check line of sight: Make sure
there are no obstructions (trees/tall
buildings) in line between the dish
and the satellites. The following
website gives bearing/direction by postcode, country:
http://www.dishpointer.com

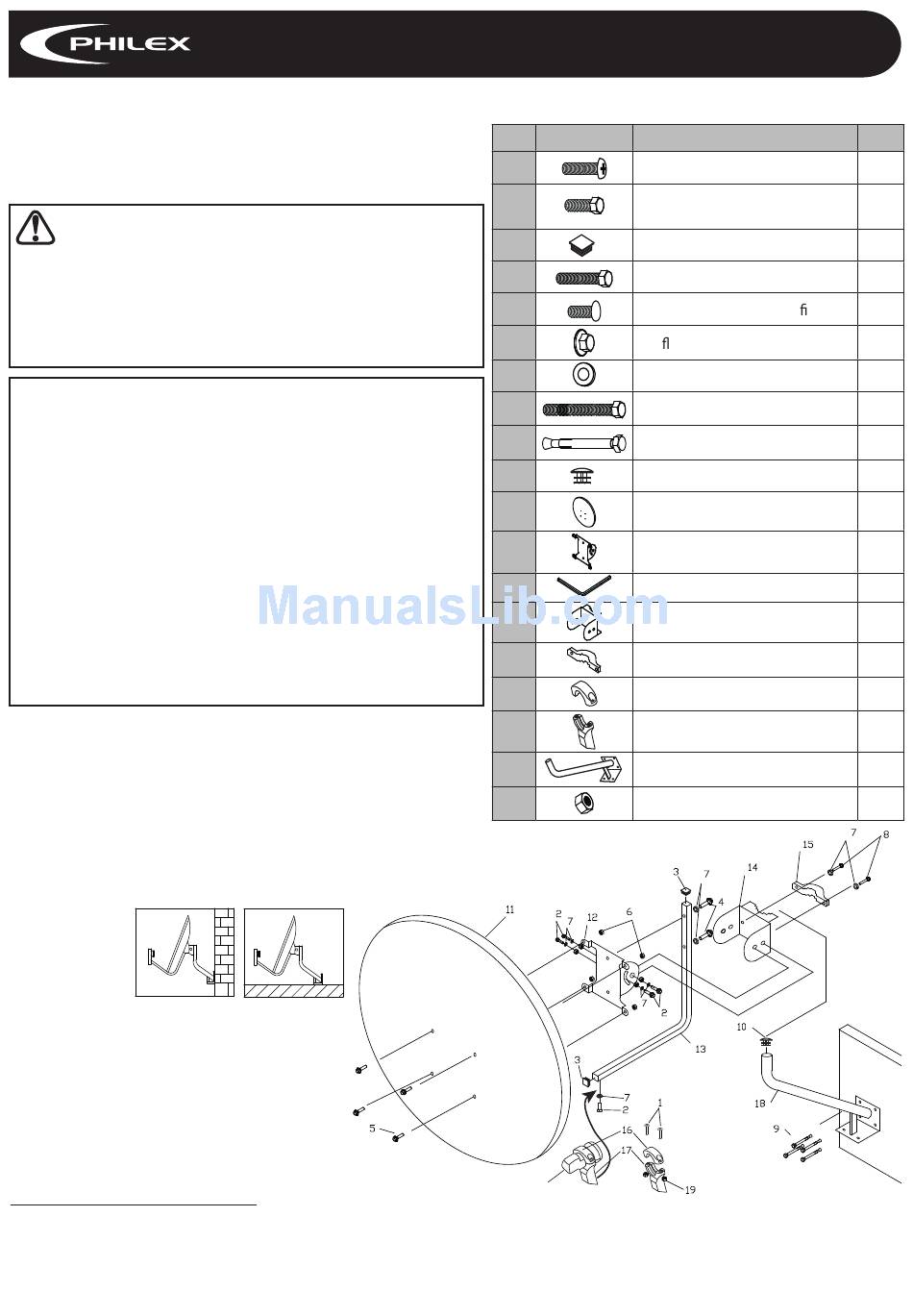

3) Assemble the Dish and Brackets:

Before assembly check that your kit contains all the items listed above. Assemble the dish and brackets
as shown in the diagram but do not yet attach to the wall mount arm (18).
Free-to-Air Digital Satellite Kit
Every satellite dish installation is different
in nature. To fit suitable brackets, fixings
The risk of accidents can be greatly
Roof Mount
List of Dish Assembly Parts -
for the rest of kit contents see page 4
No.
Description
M6 x 20mm bolts for LNB holder
1
M6 x 12mm bolts for swivel
2
bracket/LNB holder
3
PVC LNB arm inserts
M6 x 30mm bolts for LNB arm
4
M6 x 16mm bolts for dish xing
5
6
M6 ange nuts for dish bracket
7
Washers
M6 x 55mm bolts for mast clamp
8
9
M6 x 50mm expansion bolts
10
PVC cap for wall mount arm
11
Satellite dish
12
dish bracket
13
LNB arm
14
Mast bracket
15
Mast clamp
16
Upper part 40mm LNB holder
17
Lower part 40mm LNB holder
18
Wall mount arm Ø32mm
19
M6 nuts for LNB holder
LNB
Qty.
2
5
2
2
4
4
9
2
4
1
1
1
1
1
1
1
1
1
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 28211R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Philex 28211R

  • Page 1 Free-to-Air Digital Satellite Kit SET-UP GUIDE List of Dish Assembly Parts - 28211R for the rest of kit contents see page 4 Image Description Qty. This Free-to-Air Installation Kit, can be fitted by a M6 x 20mm bolts for LNB holder competent DIYer, but please note warnings below.
  • Page 2 4) Mount the Wall Bracket: Mount the wall bracket (18) using the expansion bolts (9). Make sure that the mounting holes are drilled into brick or stone and not into the mortar. Also ensure that the wall mount is horizontal and perfectly level (check using a spirit level). 5) Attach Dish Assembly to Wall Bracket: The complete dish assembly can now be attached to the wall bracket.
  • Page 3 Should you experience any difficulty in setting up your Free-to-Air Digital Satellite Kit, download: technical.philex.com/downloads/Free to Air Satellite Installation Instructions.pdf or call our Customer Careline: 0901 293 0038. Calls are charged at £1 per minute from a BT landline.
  • Page 4 Kit Contents: • Digital satellite receiver – with automatic tuning • Remote Control Unit (RCU) • Digital Low Noise Block (LNB) • 10 Metres of Digital Coaxial Cable • 2x F type connectors • Weather boot • Scart Lead – to connect satellite receiver to TV •...
  • Page 5 Satellite alignment settings for Astra 2A, 2B, 2D and Eurobird 1 28.2 Degrees East for the UK and Eire (English Language Channels) For other satellite settings see www.dishpointer.com Mainland UK Town County Elevation Azimuth Polarization Aberdeen Aberdeenshire 19.76 145.17 -10.55 Abergavenny Gwent 23.96 142.37 -14.66 Aberystwyth Dyfed 23.05 141.46 -14.84 Alnwick Northumberland 21.39 145.06...
  • Page 6 Town County Elevation Azimuth Polarization Folkestone Kent 26.24 146.76 -12.64 Fort William Highland 19.00 141.86 -12.26 Gairloch Highland 18.08 141.56 -11.90 Galway/Gaillimh Galway 20.28 136.52 -16.80 Glasgow Lanarkshire 20.09 142.45 -12.50 Gloucester Gloucestershire 24.24 143.22 -14.20 Great Yarmouth Norfolk 25.04 147.96 -11.29 Grimsby...
  • Page 7 Town County Elevation Azimuth Polarization Plymouth Devon 24.69 140.59 -16.37 Portree Skye 18.13 140.90 -12.37 Reading Berkshire 25.10 144.44 -13.76 Rosslare Wexford 22.20 138.93 -16.21 Scarborough Yorkshire 22.82 146.12 -11.49 Settle Yorkshire 22.35 144.00 -12.68 Sevenoaks Kent 25.70 145.72 -13.13 Sheffield South Yorkshire 23.22...
  • Page 8 Call charges from other networks may vary. Technical Support: http://technical.philex.com Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for recycling advice. © Philex Electronic Ltd. 2009. v1.5...
