Philex 27782R User Manual

27782R

Features Include:

•
High gain and low noise built-in amplifier
•
Separate UHF loop and VHF antenna rods
•
Suitable for Digital TV and FM / DAB radio
in strong signal areas
•
UHF 0-20dB gain / VHF 0-18dB gain
•
Adjustable gain control

Installation Instructions

1. Plug the integrated aerial coax lead (Fig. 1) from
the aerial into the ANT IN (RF) input on
your set-top box, or TV (or FM/DAB tuner).
2. Connect a SCART lead from the SCART
output on your set-top box to your TV.
Alternatively, connect an aerial coax lead
(not supplied) from the RF output
on your set-top box to the aerial input
on your TV (if in doubt check the
instructions for your set-top box).
3. Switch on the variable gain control
and set to maximum amplification
(turn control clockwise as far as it will go).
4. Rotate and tilt the UHF loop antenna to obtain the
best reception. For VHF fully extend telescopic VHF
antenna rods. Then adjust antenna angle and
rotate the whole aerial to obtain the best
VHF/FM/DAB signal.(see Fig. 2 & Fig. 3).
5. Adjust gain control to obtain best picture signal.

Connecting an alternative RF source

The RF IN coaxial socket on the back of the
aerial (See Fig. 1) allows an alternative video
source, such as an outdoor aerial, cable TV,
a video game, or satellite receiver to be
connected to your TV via the aerial.
This saves you having to keep connecting
and disconnecting the coaxial cable running
to your TV and also saves wear and
tear on the TV coaxial socket.
To select the signal from the aerial, switch on the gain control. The power LED on the front of the aerial
will light up, while this LED is lit the signal sent to your TV will be from the indoor aerial.
To switch to an alternative video source connected via the RF IN coaxial socket simply switch off the
gain control (power LED is not lit).
Deluxe Amplified Indoor Aerial
UseR GUIDe
ANT IN
Aerial Coax Lead
(not supplied)
OUT

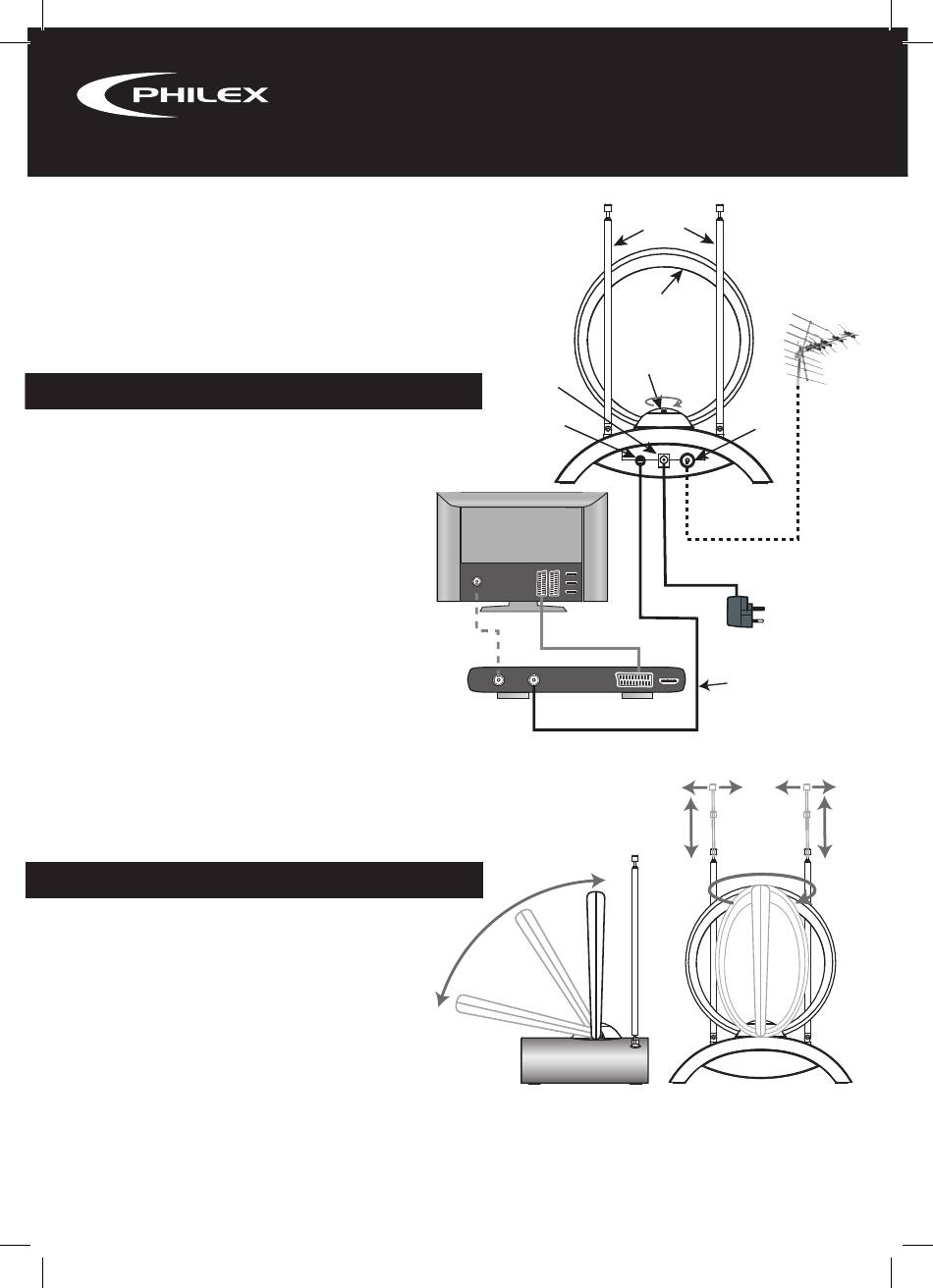

Fig. 1
VHF Antenna
Rods
Aerial
Loop
Variable
Gain Control
DC In
RF Out
TV
- OR -
Scart/HDMI Lead
(not supplied)
RF IN SCART/
HDMI
Set-Top Box
Fig. 3
Fig. 2
External
Aerial
(sold separately)
RF In
External
Aerial
Downlead
YL3 Mains
Adaptor
Integrated
Aerial Coax Lead -
Connects direct to
TV ANT IN if Freeview™
receiver built in
