Philex SLX 28260R Setup Manual

SET-UP GUIDE
28260R
This Free-to Air HD Satellite Kit, can be fitted by a competent DIYer, but please note warnings below.
WARNING!
Every satellite dish installation is different in nature.
To fit suitable brackets, fixings and poles/masts you need to
take into consideration: a.) The state and type of surface being
mounted to. b.) The weight of the assembly to be mounted
c.) The exposure to and effect of prevailing winds.
Fixings and brackets supplied with this product may not be
suitable for your particular installation. If in doubt please
consult a CAI registered installer.
GENERAL SAFETY
The risk of accidents can be greatly reduced by planning
before starting a project. • Before starting installation check
structure is sound and check for hidden wiring or plumbing.
• When working on an installation outside, beware of overhead
power lines. • Observe safe working practices, tread carefully on
roofs and ensure adequate lighting is available if working in loft
or roof space. • Before making any connections switch electricity
off at the mains. • Always follow manufacturer's operating and
safety instructions before using tools and/or equipment.
• Only carry out work outdoors at height if you are competent in
the use of ladders and related access equipment. • Always read
and follow the manufacturer's instruction label affixed to the
ladder. • To avoid injury always route cables or wiring carefully.
Ensure cable is correctly routed before fixing into position, taking
care not to over tighten cable clips. • This product may contain
small parts - keep out of reach of children. • After installation
make regular maintenance checks for wear and tear.
DISH POSITIONING AND ASSEMBLY
1) Identify your South Facing Wall: The dish needs to be on a South facing wall in order to pick up the Astra 2A, 2B,
2D and Eurobird1 satellites. Identify your south facing wall and look to mount your satellite dish on the outside of
the wall, at the nearest point to your main TV. Tip: Look at your neighbours' houses someone is sure to have Sky, see
which way their dish is facing. If none of your neighbours have Sky, you can use a compass to determine which wall
faces south.
Please note that
the mounting
bracket can be
mounted on
either a wall or
Wall Mount
a flat roof.
2) Check line of sight: Make sure there are
no obstructions (trees/tall buildings) in line
between the dish and the satellites.
The following website gives bearing/
direction by postcode, country:
http://www.dishpointer.com

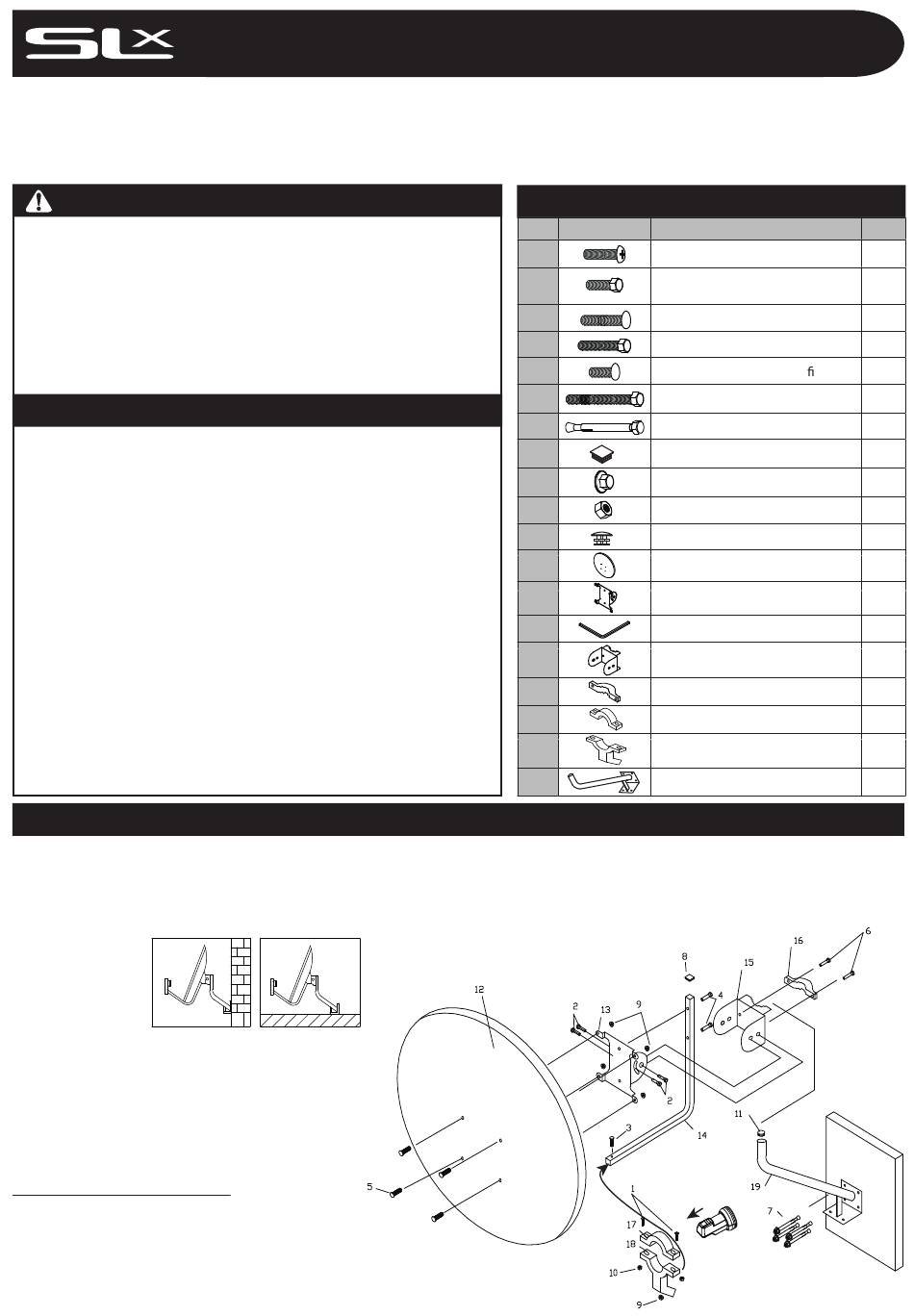

3) Assemble the Dish and Brackets:
Before assembly check that your kit contains all the items
listed above. Assemble the dish and brackets as shown in the
diagram but do not yet attach to the wall mount arm (18).
45cm Free-to-Air HD Satellite Kit
Roof Mount
DISH ASSEMBLY PARTS
DISH ASSEMBLY PARTS
No. Image Description
M4 x 18mm bolt for LNB holder
1
M6 x 12mm bolts for swivel
2
bracket
3
M6 x 25mm bolt for LNB bracket
4 M6 x 25mm bolts for LNB arm
M6 x 12mm bolts for dish xing
5
M6 x 45mm bolts for mast clamp
6
7
M6 x 50mm expansion bolts
PVC LNB arm insert
8
M6 nuts for dish bracket/LNB bracket
9
10
M4 nut for dish and LNB holder
11
PVC cap for wall mount arm
12
45cm Satellite dish
13 Dish bracket
14 LNB arm
Mast bracket
15
16
Mast clamp
Upper part 40mm LNB holder
17
Lower part 40mm LNB holder
18
19 Wall mount arm Ø25mm
Qty.
2
4
1
2
4
2
4
1
5
2
1
1
1
1
1
1
1
1
1
LNB
1
