Home Theater Master MX-1000 Operating Manual

Lcd touch screen preprogrammed and learning remote control
Hide thumbs Also See for MX-1000:
Table of Contents

Advertisement

Quick Links

Download this manual
Home Theater Master
LCD Touch Screen
Preprogrammed and Learning
Remote Control
MX-1000
Operating
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Home Theater Master MX-1000

Summary of Contents for Home Theater Master MX-1000

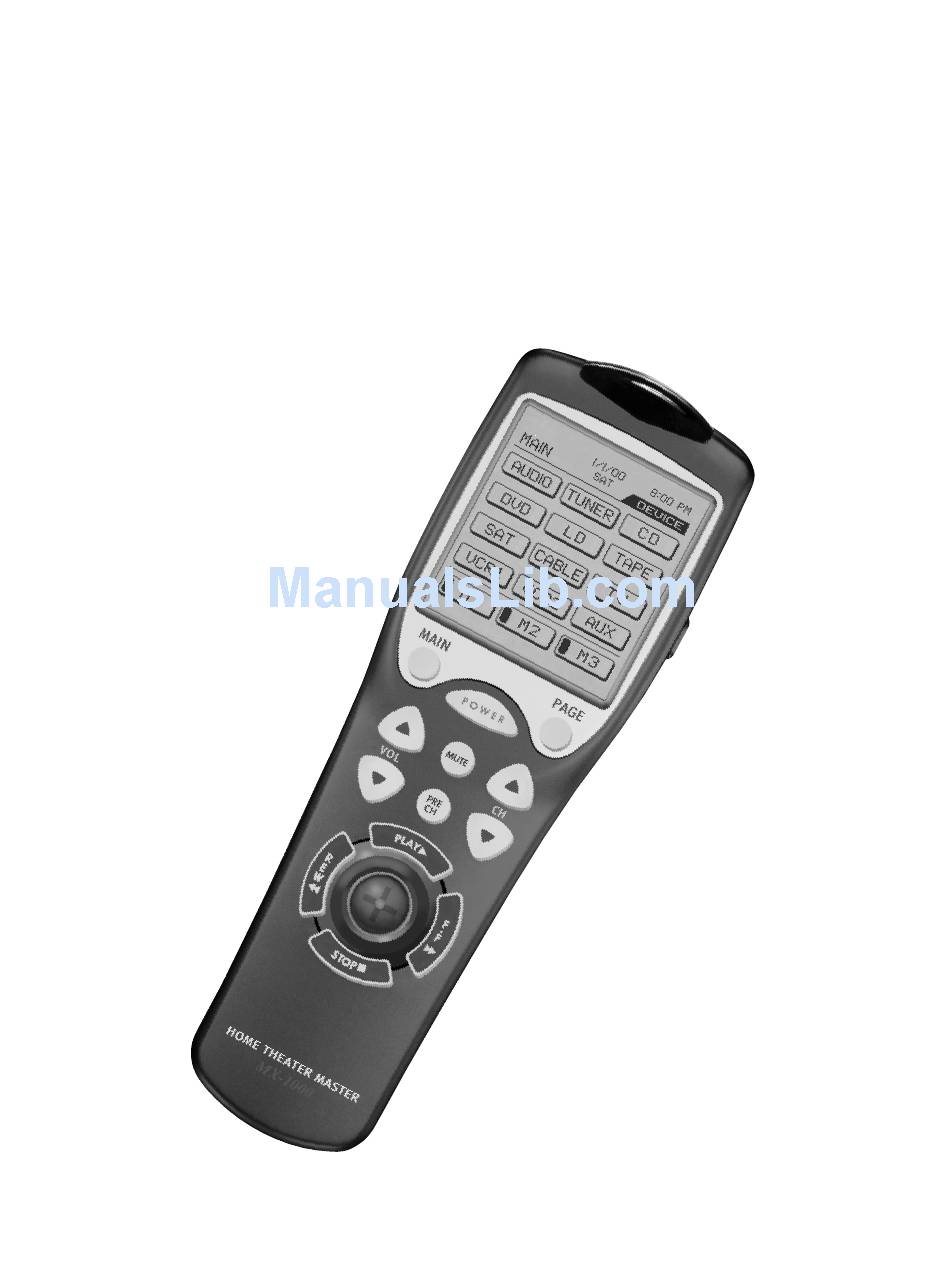

  • Page 1 Home Theater Master LCD Touch Screen Preprogrammed and Learning Remote Control MX-1000 Operating Manual...

  • Page 2: Table Of Contents

    T a b l e o f C o n t e n t 1. Introduction 2. Battery Installation 3. Summary of Operations A. Description of Devices B. Pre-programed codes C. Learning D. Macro Operation E. Punch Through F. Editing the buttons on LCD screen G.

  • Page 3: Introduction

    LCD. You can also make these changes with the aid of your personal computer. Setting up the MX-1000 to work with your components is very easy and simple. Please follow the instructions in the manual and retain the manual for future reference.

  • Page 4: Battery Installation

    2. Battery Installation MX-1000 uses four AA batteries. Please be sure to match the batteries with the (+) and (-) markings inside the battery compartment during installation. The remote control goes through self-testing for three seconds after the batteries are installed and automatically moves to setting mode for your programming.

  • Page 5: Summary Of Operations

    3. Summary of Operations A. Description of Devices: The MX-1000 is designed to operate up to twelve components. They are Audio, CATV, Satellite, TV, DVD, VCR1, VCR2, Laser Disc, Tuner, CD, Tape and AUX. However, the device button name can be changed to meet your exact needs.

  • Page 6: Macro Operation

    3. Summary of Operations D. Macro Operation: The remote control is capable of sending out a series of commands with one button press. There are three types of macro buttons you can use for such macro operations and they are as follows: 1.

  • Page 7: Editing The Buttons On Lcd Screen

    Internet. You can also load programs and data in the remote control to your personal computer and download them to another MX-1000. Please refer to page 26 in the manual for details. H. All other operations: You can set the duration of the back light or the LCD display to stay on as well as low battery warning level and the "beep"...

  • Page 9: Getting Ready With System Setting

    5. Getting Ready with System Setting All the programming is done by first entering the SYSTEM SETTING mode in the remote control. Press both the MAIN and PAGE buttons simultaneously for five seconds to enter the SYSTEM SETTING mode. Move the cursor on the screen with the joystick to your selection in the list.

  • Page 10: Programming The Remote Control

    6. Programming the Remote Control You can program the MX-1000 to make it compatible with all of your components by following either the preprogramming method or teaching it with your original remote controls. A. Preprogramming Method: 1) Using a three-digit code number.
  • Page 11 6. Programming the Remote Control 8. Confirm that you entered the right code number that matches your component by pressing other buttons such as POWER, VOLUME, MUTE and CHANNEL. If any of the buttons do not operate as they should, please repeat from Step 5. 9.
  • Page 12 6. Programming the Remote Control 7. Point the remote control to the component and press the BRAND button. 8. Press the number button on LCD screen that corresponds with the first alphabetical character of your brand name. ( Please press the number button within 20 seconds of programming.) Plcase note that pressing the number button will only show the first alphabet of the brand in that alphabet group.

  • Page 13: Learning Method

    6. Programming the Remote Control NOTE: Confirm that it is the right code number for your component by pressing other buttons such as POWER, VOLUME, MUTE and CHANNEL, etc. If any of the buttons do not operate as they should, please repeat from Step 5. 10.
  • Page 14 2-3 inches apart as shown below. 5. Press either the device button or functional button, whichever you wish to teach in the MX-1000. It is now ready to learn on the button you selected. 6. Press the button on your original remote control that you wish to teach into the MX-1000.

  • Page 15: To Erase The Learned Buttons

    6. Programming the Remote Control C. To Erase the Learned Buttons 1) To erase a single button: 1. Go to the program setting mode by pressing both the MAIN and PAGE buttons simultaneously for five seconds. 2. Move the cursor to 4. Learning with the joystick and then push the joystick down to enter the learning mode.
  • Page 16 6. Programming the Remote Control 3. Press the MUTE button to move the cursor to the DEVICE BUTTON and keep the device button you wish to erase all the learned commands down for five seconds until the LCD shows ERASED. This will erase the function taught in the device button. If you continue to press the device button for another five seconds, it will erase all the functions in the device.

  • Page 17: System And Operations Set Up

    7. System and Operations Set Up Go to the program setting mode by pressing both the MAIN and PAGE buttons simultaneously for five seconds. Move the cursor on the LCD screen to 2. SYSTEM & OPTIONS with the joystick. Enter this mode by pushing the joystick down and the following can be programmed: A.

  • Page 18: B-1. Macro Programming

    7. System and Operations Set Up B-1. Macro Programming: There are three type of macro functions you can program. They are as follows: 1. M1, M2 and M3 in the Main menu: Designed to send out up to twenty eight commands from each of the three buttons.

  • Page 19: B-3. To Erase Macro Functions

    7. System and Operations Set Up 2) For Device Buttons: 1. Press one of the twelve device buttons you wish to store macro functions with the cursor on DEVICE BUTTON. 2. Move the cursor to COMMON BUTTON and select again either the same or another device button whose functional buttons you wish to store in the device macro button you selected first.

  • Page 20: To Program Punch Through Functions

    7. System and Operations Set Up C. To Program Punch Through Functions. You can use audio receiver volume control in a different mode ( eg. Audio receiver Volume Up and Volume Down and Mute in Satellite mode ) using a volume punch through feature. You can also have four VCR ( or DVD ) transport buttons, Play, Stop, Fast Forward and Rewind, operate in another mode such as in Satellite, Cable and Audio modes.

  • Page 21: To Edit The Buttons On Lcd

    8. To Edit the buttons on LCD You can add or delete buttons, change the button size and shape, move the button locations and edit the text on the buttons on LCD screen in the EDITING Mode. 1. Go into setting mode by pressing both the MAIN and PAGE buttons simultaneously for five seconds.

  • Page 22: To Copy Buttons

    8. To Edit the buttons on LCD exit from the main menu by pressing both the MAIN and PAGE buttons, simultaneously. NOTE: You may first relocate or delete the buttons that are currently at the position you plan to locate the new button. However, you can also relocate or delete the buttons after you superimpose the new button above them.

  • Page 23: To Delete Buttons

    8. To Edit the buttons on LCD 5. Repeat Step 2 to Step 4 to copy other device buttons you wish to store to your favorite device page. 6. Once you completed it, exit by pressing both the MAIN and PAGE button simultaneously.

  • Page 24: To Insert Buttons

    8. To Edit the buttons on LCD D. To Insert Buttons This is designed to create new functional buttons in any of the twelve devices. The following choices of button sizes and shapes are available: 1. Select INSERT button in EDITING mode. 2.

  • Page 25: To Change Buttons

    8. To Edit the buttons on LCD E. To Change Buttons This is designed to change the size and shape of any functional buttons and device buttons (in favorite device page) with the steps shown below: The following choices of buttons are available: 1.

  • Page 26: To Edit A Text

    8. To Edit the buttons on LCD F. To Edit a Text This is designed to write a new text on any of the buttons in the LCD screen with the following steps: The following choices of fonts are available in two sizes for text editing: 1.

  • Page 27: Clock Setting

    9. Clock Setting Enter the Setting mode by pressing both the MAIN and PAGE button simultaneously for five seconds. Move the cursor on the LCD screen to 6. SET DATE & CLOCK by using the joystick. Enter this mode by pushing the joystick down. Press the selection you wish to change from the LCD screen and change them using the UP and DOWN buttons.

  • Page 28: Lcd Screen Alignment

    11. LCD Screen Alignment You may need to align the LCD screen after you down load the program to the MX-1000. Enter the Setting mode by pressing both the MAIN and PAGE button simultaneously for five seconds. Move the cursor on the LCD screen to 1.

  • Page 29: Caution On Lcd Screen

    Please note that the LCD screen is a breakable glass. Please use necessary caution in handling LCD screen. 14. Memory Lock The MX-1000 has an internal memory lock system that retains all the programs and learned functions for the extended period. 15. Erasing all the Programs...

  • Page 30: Specifications

    17. Specifications Operating range 40 ft ~ 60ft, depending upon components. Power requirements Four size AA batteries Battery life About 4 months Weight 7.38 Oz (not including batteries) Dimensions 8.9•›x 3.0•›x 1.5•›(W x H x D) Programmed Code Numbers: AUDIO TUNER TAPE CABLE...

  • Page 31: Set Up Function Table

    Set-Up Function Table AUDIO Button Name Audio Functions Button Name Audio Functions Device Name Audio(On) GUIDE Guide POWER On/Off (Off) EXIT Exit CH UP Preset+ CH DOWN Preset - VOL UP Volume Up VOL DOWN Volume Down MUTE Mute PRE. CH Page PLAY STOP...
  • Page 32 Set-Up Function Table SATELLITE Button Name SAT Functions Button Name SAT Functions Device Name SAT(On) Rec. POWER On/Off (Off) FETCH Fetch CH UP Channel Up FAV1 CH DOWN Channel Down FAV2 VOL UP Volume Up VOL DOWN Volume Down FAV3 MUTE Mute FAV4...
  • Page 33 Set-Up Function Table Button Name TV Functions Button Name TV Functions Device Name TV(On) PICTURE Picture POWER On/Off (Off) RESET-STD Reset CH UP Channel Up AUTO. CH Auto CH DOWN Channel Down VOL UP Volume Up DELETE Delete VOL DOWN Volume Down PIP ON Pip On...
  • Page 34 Set-Up Function Table Button Name VCR1,2 Functions Button Name VCR1,2 Functions Device Name VCR(On) INPUT Input POWER On/Off (Off) VCR+ Vcr Plus CH UP Channel Up MENU-PGM Program CH DOWN Channel Down DISPLAY Display VOL UP Volume Up AUDIO MONITOR Audio Monitor VOL DOWN Volume Down...
  • Page 35 Set-Up Function Table CABLE Button Name Cable Functions Button Name Cable Functions Device Name Cable(On) DAY+ Day+ POWER On/Off (Off) HELP */Help CH UP Channel Up P/Delete CH DOWN Channel Down VOL UP Volume Up VOL DOWN Volume Down MUTE Mute PLAY PRE.
  • Page 37 Set-Up Function Table Button Name CD Functions Button Name CD Functions Device Name CD(On) FADER Fader POWER On/Off (Off) EDIT Edit CH UP Track + / Skip + DISC1 Disc1 CH DOWN Track - / Skip - DISC2 Disc2 VOL UP Volume Up DISC3 Disc3...
  • Page 38 Set-Up Function Table LASER DISC Button Name LD Functions Button Name LD Functions Device Name LD(On) FRAME/TIME Frame POWER On/Off (Off) CLEAR Clear CH UP Track + / Skip + AUTO PGM Auto Program CH DOWN Track - / Skip - DISC A Disc A VOL UP...
  • Page 39 Set-Up Function Table TAPE Button Name Tape Functions Button Name Tape Functions Device Name Tape(On) Rec. Mute DECK B-REC MUTE POWER On/Off (Off) CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH <DECK A> Page PLAY Play STOP Stop Deck A CURSOR ENTER...
  • Page 40 Set-Up Function Table Button Name AUX Functions Button Name AUX Functions Device Name AUX(On) On/Off (Off) POWER CH UP Down CH DOWN VOL UP VOL DOWN MUTE PRE. CH Page PLAY STOP CURSOR ENTER CURSOR UP CURSOR DOWN CURSOR LEFT CURSOR RIGHT Page Page...

  • Page 41: Set Up Code Table

    Set-Up Code Table AUDIO Manufacturer/Brand Set-Up Code Number ADCOM 082 092 225 161 269 AIWA 018 104 170 202 203 213 211 188 AKAI 138 189 125 126 127 128 258 281 282 AMEND ANGSTROM ARCAM AUDIO ACCESS AUDIO ALCHEMY AUDIO DESIGN 194 221 011 AUDIO EASE...
  • Page 42 Set-Up Code Table AUDIO Manufacturer/Brand Set-Up Code Number NAKAMICHI 111 244 245 172 183 ONKYO 017 046 064 107 108 187 079 080 090 179 209 270 275 OPTIMUS 026 041 138 PANASONIC 032 195 219 177 PARASOUND 129 130 132 261 PHAST PHILIPS 249 250 251 063...
  • Page 43 Set-Up Code Table Manufacturer/Brand Set-Up Code Number ALPHASTAR AMPLICA BIRDVIEW 129 113 051 126 CAPETRONICS CHANNEL MASTER 013 014 015 018 036 055 CHAPARRAL 008 009 012 077 CITOH CURTIS MATHES DRAKE 005 006 007 010 011 112 116 141 052 DX ANTENNA 024 046 056 076 ECHOSTAR...
  • Page 44 Set-Up Code Table Manufacturer/Brand Set-Up Code Number ADMIRAL 072 081 161 160 AKAI 197 146 AMARK 112 143 AMPRO 073 167 157 183 AMSTRAD ANAM 043 054 056 080 112 131 197 004 112 058 AUDIOVOX BLAUPUNKT CAIRN CANDLE 197 002 003 004 CAPEHART CETRONIC CITIZEN...
  • Page 45 Set-Up Code Table Manufacturer/Brand Set-Up Code Number 015 025 132 130 134 197 040 016 024 056 019 NIKEI ONKING ONWA OPTONICA 019 081 ORION PANASONIC 034 056 080 092 164 PHILCO 197 003 024 056 059 060 063 064 164 004 PHILIPS 197 003 004 005 038 059 093 164 127 PIONEER...
  • Page 46 Set-Up Code Table VCR1 Manufacturer/Brand Set-Up Code Number AIWA 034 161 AKAI 016 043 046 124 125 142 146 AMPRO ANAM AUDIO DYNAMICS 012 023 039 043 BROOKSONIC 035 037 129 CANON 028 031 CAPEHART CRAIG 003 040 135 CURTIS MATHES 031 041 DAEWOO 005 007 010 065 108 110 111 112 116 117 119...
  • Page 47 Set-Up Code Table VCR1 Manufacturer/Brand Set-Up Code Number RUNCO SALORA SAMSUNG 032 040 066 102 104 107 109 112 113 115 120 122 125 SANSUI 022 043 048 135 SANYO 003 007 010 014 134 102 SCOTT 017 037 112 129 131 SEARS 003 008 009 010 013 014 081 101 017 073 112 SHARP...
  • Page 48 Set-Up Code Table CABLE Manufacturer/Brand Set-Up Code Number 103 003 004 039 042 046 053 AMERICAST ANTRONIX ARCHER 005 007 014 BELL SOUTH CENTURION CENTURY CITIZEN COMBANO 080 081 COMSAT COMTRONICS DIGICABLE EAGLE 020 030 040 EASTERN 057 066 ECHOSTAR ELECTRICORD GEMINI 008 054...
  • Page 49 Set-Up Code Table Manufacturer/Brand Set-Up Code Number APEX DIGITAL DENON 007 080 026 027 HARMAN KARDON 091 057 074 MAGNAVOX MARANTZ MITSUBISHI ONKYO 076 035 PANASONIC 021 042 PHILIPS PIONEER 023 092 PROCEED PROSCAN 026 027 026 027 SAMSUNG 056 070 SHARP SONY THETA DIGITAL...
  • Page 50 Set-Up Code Table Manufacturer/Brand Set-Up Code Number ADCOM 062 042 AIWA 059 065 088 089 105 122 170 187 AKAI 085 195 202 231 232 AMEND ARCAM AUDIO ACCESS 119 147 AUDIO EASE AUDIO TECHNICA 037 057 CALIFORNIA AUDIO 103 008 CAPETRONIC CARRERA 057 080...
  • Page 51 Set-Up Code Table Manufacturer/Brand Set-Up Code Number QUASAR 103 008 RADIO SHACK 017 042 150 REALISTIC 042 050 051 102 181 182 187 ROTEL 044 107 161 178 250 044 107 SANSUI 044 069 107 128 171 190 125 SANYO SCOTT 069 102 SHARP...
  • Page 52 Set-Up Code Table Manufacturer/Brand Set-Up Code Number DENON 206 207 FUNAI KENWOOD 152 013 MAGNAVOX 032 121 MARANTZ MITSUBISHI OPTIMUS 049 013 PANASONIC PHILIPS PIONEER 106 117 121 RADIO SHACK REALISTIC RUNCO SANYO SHARP 152 013 SONY 053 110 TECHNICS THETA DIGITAL TOSHIBA 152 106...
  • Page 53 Set-Up Code Table TAPE Manufacturer/Brand Set-Up Code Number AIWA 015 071 100 114 CARVER 006 008 027 024 036 DENON 105 227 229 FISHER GOLDSTAR HARMAN KARDON 106 116 239 240 KENWOOD 005 013 023 026 064 145 146 181 190 LINN LUXMAN 035 137 139...
  • Page 54 Set-Up Code Table Manufacturer/Brand Set-Up Code Number AIWA ARCHER AUTON DRAPER SCREEN DWIN EVERQUEST EXTRON FAROUDJA FUJI JERROLD KENWOOD LITE-TOUCH LUTRON 077 158 159 MAKITA 186 201 MINDPATH NILES 160 187 PIANO DISC PLUS POLKAUDIO REPLAY RUSSOUND SCIENTIFIC ATLANTA 156 163 SIMA SOLO ELECTRONICS SOMFY...
  • Page 55 0EE - 0042A Rev. 1.0...
  • Page 56 Set-Up Code Table Manufacturer/Brand Set-Up Code Number ADMIRAL 072 081 161 160 AKAI 197 146 AMARK 112 143 AMPRO 073 167 157 183 AMSTRAD ANAM 043 054 056 080 112 131 197 004 112 058 AUDIOVOX BLAUPUNKT CAIRN CANDLE 197 002 003 004 CAPEHART CETRONIC CITIZEN...
  • Page 57 Set-Up Code Table Manufacturer/Brand Set-Up Code Number 015 025 132 130 134 197 040 016 024 056 019 NIKEI ONKING ONWA OPTONICA 019 081 ORION PANASONIC 034 056 080 092 164 PHILCO 197 003 024 056 059 060 063 064 164 004 PHILIPS 197 003 004 005 038 059 093 164 127 PIONEER...
  • Page 58 Set-Up Code Table VCR1 Manufacturer/Brand Set-Up Code Number AIWA 034 161 AKAI 016 043 046 124 125 142 146 AMPRO ANAM AUDIO DYNAMICS 012 023 039 043 BROOKSONIC 035 037 129 CANON 028 031 CAPEHART CRAIG 003 040 135 CURTIS MATHES 031 041 DAEWOO 005 007 010 065 108 110 111 112 116 117 119...
  • Page 59 Set-Up Code Table VCR1 Manufacturer/Brand Set-Up Code Number RUNCO SALORA SAMSUNG 032 040 066 102 104 107 109 112 113 115 120 122 125 SANSUI 022 043 048 135 SANYO 003 007 010 014 134 102 SCOTT 017 037 112 129 131 SEARS 003 008 009 010 013 014 081 101 017 073 112 SHARP...
  • Page 60 Set-Up Code Table CABLE Manufacturer/Brand Set-Up Code Number 103 003 004 039 042 046 053 AMERICAST ANTRONIX ARCHER 005 007 014 BELL SOUTH CENTURION CENTURY CITIZEN COMBANO 080 081 COMSAT COMTRONICS DIGICABLE EAGLE 020 030 040 EASTERN 057 066 ECHOSTAR ELECTRICORD GEMINI 008 054...
  • Page 61 Set-Up Code Table Manufacturer/Brand Set-Up Code Number APEX DIGITAL DENON 007 080 026 027 HARMAN KARDON 091 057 074 MAGNAVOX MARANTZ MITSUBISHI ONKYO 076 035 PANASONIC 021 042 PHILIPS PIONEER 023 092 PROCEED PROSCAN 026 027 026 027 SAMSUNG 056 070 SHARP SONY THETA DIGITAL...
  • Page 62 Set-Up Code Table Manufacturer/Brand Set-Up Code Number ADCOM 062 042 AIWA 059 065 088 089 105 122 170 187 AKAI 085 195 202 231 232 AMEND ARCAM AUDIO ACCESS 119 147 AUDIO EASE AUDIO TECHNICA 037 057 CALIFORNIA AUDIO 103 008 CAPETRONIC CARRERA 057 080...
  • Page 63 Set-Up Code Table Manufacturer/Brand Set-Up Code Number QUASAR 103 008 RADIO SHACK 017 042 150 REALISTIC 042 050 051 102 181 182 187 ROTEL 044 107 161 178 250 044 107 SANSUI 044 069 107 128 171 190 125 SANYO SCOTT 069 102 SHARP...
  • Page 64 Set-Up Code Table Manufacturer/Brand Set-Up Code Number DENON 206 207 FUNAI KENWOOD 152 013 MAGNAVOX 032 121 MARANTZ MITSUBISHI OPTIMUS 049 013 PANASONIC PHILIPS PIONEER 106 117 121 RADIO SHACK REALISTIC RUNCO SANYO SHARP 152 013 SONY 053 110 TECHNICS THETA DIGITAL TOSHIBA 152 106...
  • Page 65 Set-Up Code Table TAPE Manufacturer/Brand Set-Up Code Number AIWA 015 071 100 114 CARVER 006 008 027 024 036 DENON 105 227 229 FISHER GOLDSTAR HARMAN KARDON 106 116 239 240 KENWOOD 005 013 023 026 064 145 146 181 190 LINN LUXMAN 035 137 139...
  • Page 66 Set-Up Code Table Manufacturer/Brand Set-Up Code Number AIWA ARCHER AUTON DRAPER SCREEN DWIN EVERQUEST EXTRON FAROUDJA FUJI JERROLD KENWOOD LITE-TOUCH LUTRON 077 158 159 MAKITA 186 201 MINDPATH NILES 160 187 PIANO DISC PLUS POLKAUDIO REPLAY RUSSOUND SCIENTIFIC ATLANTA 156 163 SIMA SOLO ELECTRONICS SOMFY...
  • Page 67 0EE - 0042A Rev. 1.0...
