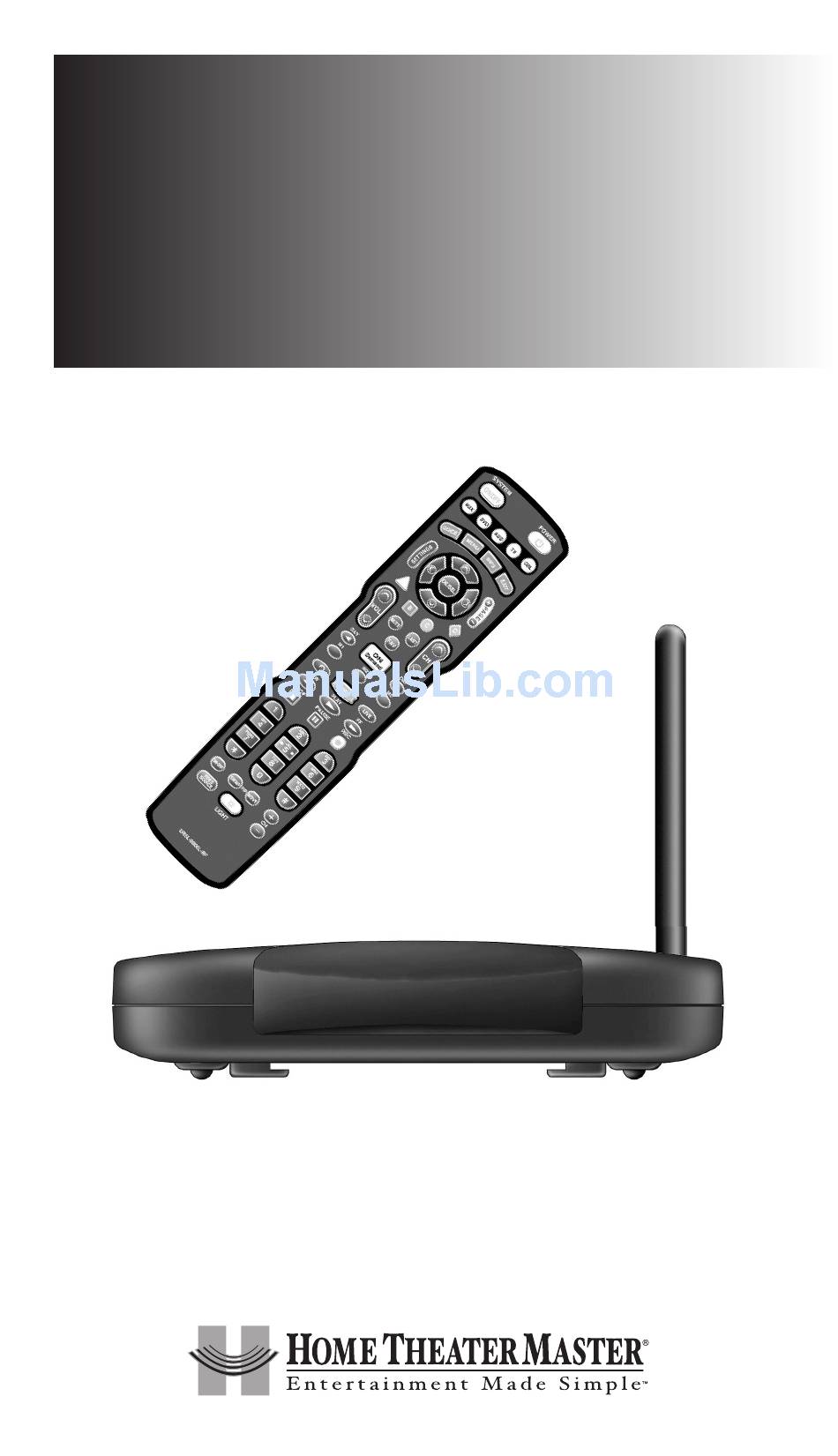

- Page 1 MRF-250C INSTALLATION MANUAL Multi-Room “No-Pointing” RF Control of Cable Box/your Components...
- Page 2 CAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Home Theater Master is a registered trademark of Universal Remote Control, Inc. Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
-
Page 3: Table Of Contents
ABLE ONTENTS Introduction Features and Benefits Parts Guide MFS-250C Details A Standard MRF-250C System Front Blaster Overload RF Setup Method for remote Frequently Asked Questions USA Limited Warranty Statement Specifications Federal Communication Commission Interference Statement... -
Page 4: Introduction
The combination of the UR5L-9000LRF with it’s companion MRF-250C base station will enable you to place your Cable Box/your components out of sight behind closed doors or in another room of your house. The MRF-250C converts commands to infrared signals that control you AV components. This allows the UR5L-9000LRF to send radio signals throughout your house whether you be indoors, outdoors, or even up to 100’... -
Page 5: Features And Benefits
Each UR5L-9000LRF can be programmed to operate equipment in another room, by installing an MRF-250C base station at each location. The MRF-250C is assigned one of 16 unique ID#’s. In operation it is simple: when you select a device located in the den, the UR5L-9000LRF only signals to the MRF-250C in the den. -
Page 6: Mfs-250C Details
LED Lights up when Red P LED Lights up when the TATUS OWER the MRF-250C receives an RF MRF-250C’s power supply is plugged signal from the UR5L-9000LRF. into an active AC outlet. The MRF-250C’s slots enable the Front Blaster sends Infrared commands mounting plate‘s matching guides... - Page 7 250C’s Front Blaster. Six Plug-In Flashers are supplied with 10 foot cables and six extra self-adhesive pads in case a flasher has to be repositioned. Bottom panel Dial sets the Receiver ID# when more than one MRF-250C receiver is used. Page 4...
-
Page 8: A Standard Mrf-250C System
Step 1 - Place the MRF-250C The MRF-250C should be placed so that the Front Blaster will control as many of the system’s AV components as possible. If you are connecting the outboard flashers to the rear Flasher outputs only, the MRF-250C may be concealed and mounted to the rear wall or back of the system cabinet. -
Page 9: Front Blaster Overload
Yes, the flashers are compatible, however flashers from other companies are equipped with a mini plug that is too large to fit the MRF-250C’s flasher jacks. Use Radio Shack part # 274-327 to convert 3.5mm plug Flasher/Emitters to the MRF-250C. -
Page 10: Usa Limited Warranty Statement
MRF-250C B TATION USA Limited Warranty Statement Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workmanship for s period of one (1) year and as set forth below. -
Page 11: Specifications
MRF-250C B TATION LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN TORT (INCLUDING... -
Page 12: Federal Communication Commission Interference Statement
MRF-250C B TATION Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 13 Page 10...
- Page 14 Page 11...
- Page 16 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 OCE-0015J Rev 02...
