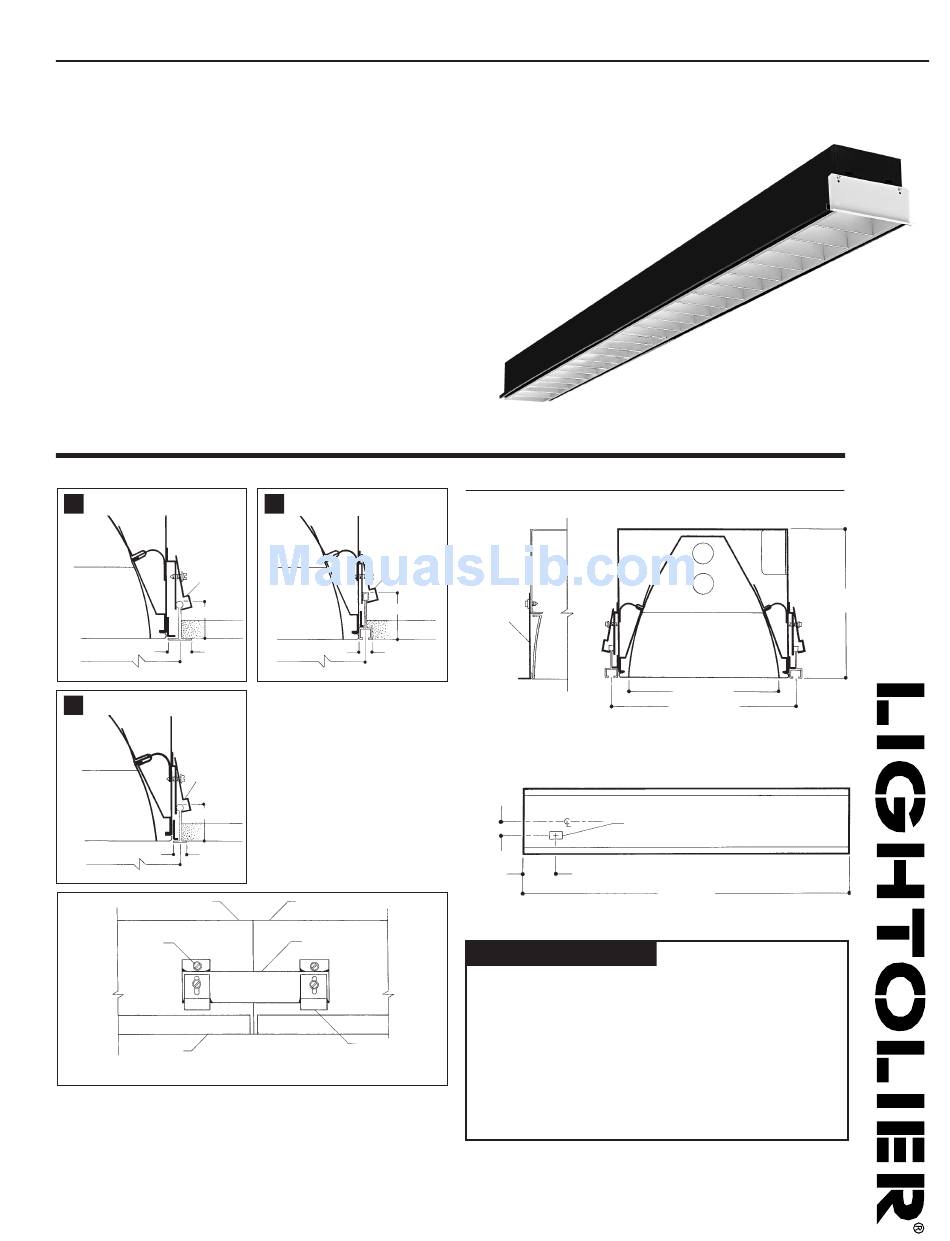

Lightolier Lytecel Recessed Fluorescent LCS8G12PR232 Specifications

Page 1 of 2 For Continuous Row Mounting – 6-1/2" wide, 12 Cell (1 Row) Parabolic Louver,
Features
• 48" long louver gives an uninterrupted louver appearance when
row mounted.
• Meets IES RP1 for lighting VDT areas.
• 61.0% efficient (T8).
• 1.4 spacing mounting ratio.
• Specular, low iridescence, pre-anodized aluminum louver.
• Vertical grain on cross blades eliminates reflected lamp image.
• Spring loaded latches (self centering).
• Reversible louver hinging.
• Louver has protective dust guard.
• Only 6-1/8" deep body.
• Black housing exterior for cooler ballast operating temperature.
• Turned-in edges for safe handling.
• UL-Listed twin knockout access plate.
• Construction to meet NYC Code or Chicago Plenum is available.
• Optional DALI ballast accepts digital dimming commands from
computers, scene controllers and automatic control devices.
exposed T-grid ceiling.
G
Hold-down
Clip
2" max.
15/16"
8-1/2"
exposed T-grid ceiling.
N
Hold-down
Clip
2" max.
9/16"
8"
Fixture
Screw
Side
Rail
continuous row coupler locks fixtures together for a continuous line of light
2/04
Lytecel Recessed Fluorescent
exposed slot T-grid ceiling.
T
Hold-down
Clip
2" max.
9/16"
8"
Fixture
Continuous
Row Coupler
Hold-down
Clip
without cell configuration interruption
LCS8G12PR232
Static, 2 Lamp T8, IES RP1 For VDT Areas
End Plate
for
beginning
and end
of row
2" x 2-1/2" Access Plate
2-5/32"
with (2) 7/8" K.O.s
(55mm)
5" (127mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2004 Lightolier
6-1/8"
(156mm)
6-1/2" (165mm)
T-Type 8" (203mm)
48" (1219mm)
