DH100 SERIES TOUCH SCREEN MONITOR SETUP
The DH100 Series DVRs can be controlled with a touch screen monitor (not included). Touch
screen monitors must be Windows 7® Touch compatible to work with the system.
NOTE: A firmware upgrade may be required to enable touch screen compatibility. Firmware upgrades
are available as a free download from www.digimerge.com.
Step 1 of 3: Connect the Cables

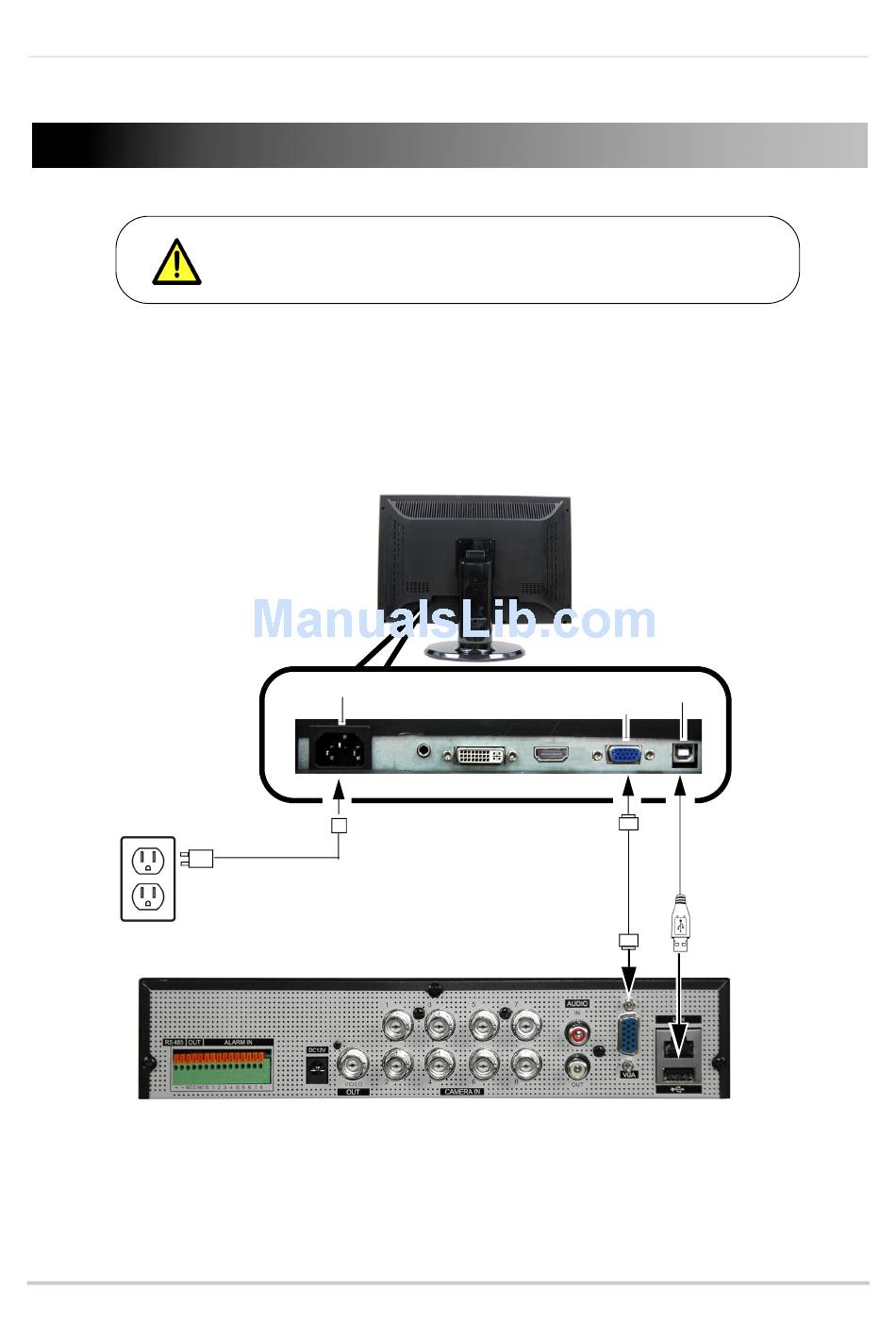

8-channel model shown
USB Cable: Enables the DVR to recognize touch gestures on the monitor.
VGA Cable: Transmits video from the DVR to the touch screen monitor.
AC Power Cord: Provides power to the touch screen monitor.
The USB cable must be connected to the monitor's USB port
and the DVR's USB port to enable the touch screen function.
Power Port
AC power cord
DH100 Series Touch Screen Monitor Setup
USB Port
VGA Port
VGA cable
USB cable
1
