Summary of Contents for Digimerge DM17TQ

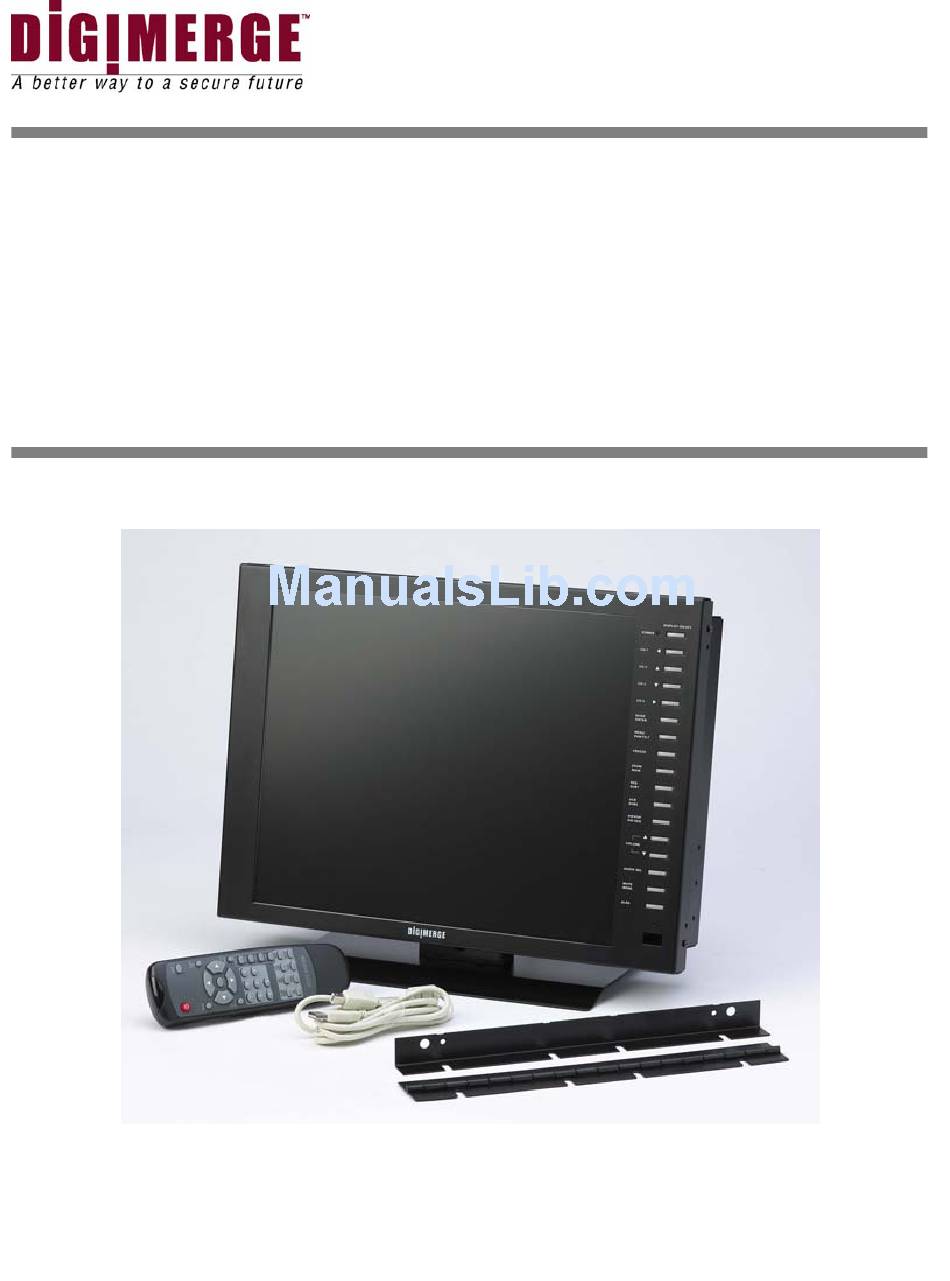

- Page 1 17” TFT LCD Monitor With Integrated Quad Processor Model: DM17TQ Installation / User Manual...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated...
- Page 3 NOTE This equipment has been certified and found to comply with the limits regulated by FCC, EMC and LVD. Therefore, it is designed to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that user follows this manual's guidelines to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard or injury.
-
Page 4: Table Of Contents
CONTENTS: 1. GENERAL PRECAUTIONS --------------------------------------------------------------------- 2. INTRODUCTION----------------- ------------------------------------------------------------------ 3. SYSTEM --------------------------------------------------------------------------------------------- 4. CONNECTING THE TFT STAND ------------------------------------------------------------- 5. MONITOR CONTROLS - FRONT PANEL -------------------------------------------------- 6. MAIN MENU CONTROL ------------------------------------------------------------------------ 7. PAN/TILT ZOOM ----------------------------------------------------------------------------------- 8. MONITOR CONNECTIONS - BACK PANEL----------------------------------------------- 9. SIDE PANEL --------------------------------------------------------------------------------------- 10. -
Page 5: General Precautions
GENERAL PRECAUTIONS: Read Instructions Servicing All of the safety and operating instructions should Do not attempt to service this product yourself as be read and understood before the product is used. opening or removing covers may expose you to Retain Instructions voltage or other hazards. -
Page 6: Introduction
Introduction Monitor Features: • Display a full, flat 17” Viewable area • View up to 4 camera locations in real time • High Resolution Monitor delivers superior image clarity • Ultra high brightness and an excellent contrast ratio for sharp true to life image; •... -
Page 7: System
SYSTEM INCLUDES: •17” TFT COLOR QUAD MONITOR •Remote Control •Desk Stand •Rack Mount Ears •USB Cable •Owners Manual CONNECTING THE TFT STAND: Use the supplied screws to connect the stand for the TFT monitor to the base. Brackets and screws are also included for Rack Mounting applications. Please refer to Appendix F for a diagram illustrating Rack Mounting. -
Page 8: Monitor Controls - Front Panel
CONTROL - FRONT PANEL: 1. Standby Switch - This switch will turn the monitor ON/OFF. DISPLAY ON / OFF POWER A red LED indicator light is ON when the monitor is in Standby mode. Press the button to turn the power ON. Allow ◄... - Page 9 3. Menu / (Pan/Tilt) - This button serves 2 functions: a) Menu – Press this button for 2 seconds to enter the menu option screen. For more information on Menu mode, please refer to page 8. b) Pan/Tilt – This button activates the Pan/Tilt feature. For more information on the Pan/Tilt Zoom feature please refer to page 10.
- Page 10 8. PIP/POP - This button allows you to view the cameras in Picture-In-Picture or Picture-On- Picture setting. PIP allows you to view two locations simultaneously, one being the main channel, the other being viewed as a small image on the screen. Dual PIP can also be selected, which displays two small images on the main screen.
-
Page 11: Main Menu Control
MAIN MENU CONTROL Enter the Menu screen by pressing the Menu button. Scroll through the eight options by pressing the UP and DOWN buttons. To enter a sub-menu, press the Enter button where the highlighted scroll bar is located. To exit the Main Menu, scroll down to the Exit option and press Enter. - Page 12 4. Title Set – This submenu allows you to change the title of each camera location (up to 8 characters), or remove the titles from the on-screen display. DISPLAY: Selecting [Y] will enable the camera titles to appear in the on-screen display. Selecting [N] will remove all titles from appearing in the on-screen display.
- Page 13 7. System Set - This sub-menu allows you to configure various preferences on the system. KEY BUZZER: When set to [Y], the system will make a sound when a key is pressed on the remote control or on the main panel of the monitor. LOSS BUZZER: When set to [Y], the system will make a sound when a camera becomes disconnected.
-
Page 14: Pan/Tilt Zoom
PAN / TILT ZOOM: The TFT monitor is equipped with a built-in Pan/Tilt Zoom feature, which is only available when used in conjunction with a compatible Pan/Tilt Zoom (Zoom optional) Dome camera. The Pan/Tilt Zoom feature supports “Pelco D” protocol, and operates via the RS-485 connection For a compatible camera on Channel 1. -
Page 15: Monitor Connections - Back Panel
MONITOR CONNECTIONS - BACK PANEL: 1. BNC Camera Inputs - Channel 1-4 camera inputs (for cameras with standard Video outputs) 2. RCA Audio inputs - Channel 1-4 Audio inputs.(for cameras with standard RCA Audio output) 3. Monitor Audio/Video Out - Use with A/V cables (not supplied) to connect a slave monitor 4. -
Page 16: Side Panel
CONTROLS - SIDE PANEL: 1. Power - This switch controls power to the entire unit. Depress the side with the ‘I‘ to turn the power ON. Depress the ‘O‘ side to turn the unit OFF. -13-... -
Page 17: Remote Control
REMOTE CONTROL: Features of the Remote Control. For more details on specific remote control features, refer to the Monitor features FUNCTION DESCRIPTION Turns Power to unit On/Off. MODE Toggles to VGA IN viewing MODE MUTE Cuts off the sound from the camera. AUDIO SEL Selects the Audio channel in Quad mode ▲... -
Page 18: Trouble Shooting
TROUBLE SHOOTING: If the system does not function properly, please check the following points. PROBLEM REMEDY MONITOR Too dark or bright picture Readjust the CONTRAST or BRIGHTNESS controls NO POWER Check for AC connection NO POWER Poor picture quality Clean the camera lens. Readjust the CONTRAST or BRIGHTNESS controls Picture but no sound Adjust the VOLUME... -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS: Picture 17” Color TFT Resolution 720 x 480 Camera Capable Up to 4 Quad Speed 30 fps Camera Input 4 BNC Alarm Inputs/Outputs 4 / 2 Input signal Composite 1 V p-p (75 ohm) Contrast ratio 300:1 Brightness ratio 230 cd/㎡... -
Page 20: Appendix A - Connection Examples
APPENDIX - A TYPICAL CONFIGURATION FOR COMPLETE SYSTEM: COMPUTER DVR/VCR AC100-240V 50/60Hz VGA IN MONITOR OUT VCR OUT VCR IN RS-232 SENSOR CAMERA MONITOR -17-... -
Page 21: Optional Accessories
CARE AND MAINTENANCE: Please follow the following instructions to ensure proper care and maintenance of this system Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices. -
Page 22: Limited Warranty
No claims or statements regarding the product, whether written or verbal, by salespeople, retailers, dealers or distributors, that are not contained in this limited warranty or in the owner's manual are authorized by Digimerge and do not modify or expand this warranty. - Page 23 Digimerge Technologies Inc. 300 Alden Road Markham Ontario L3R 4C1 www.digimerge.com...
