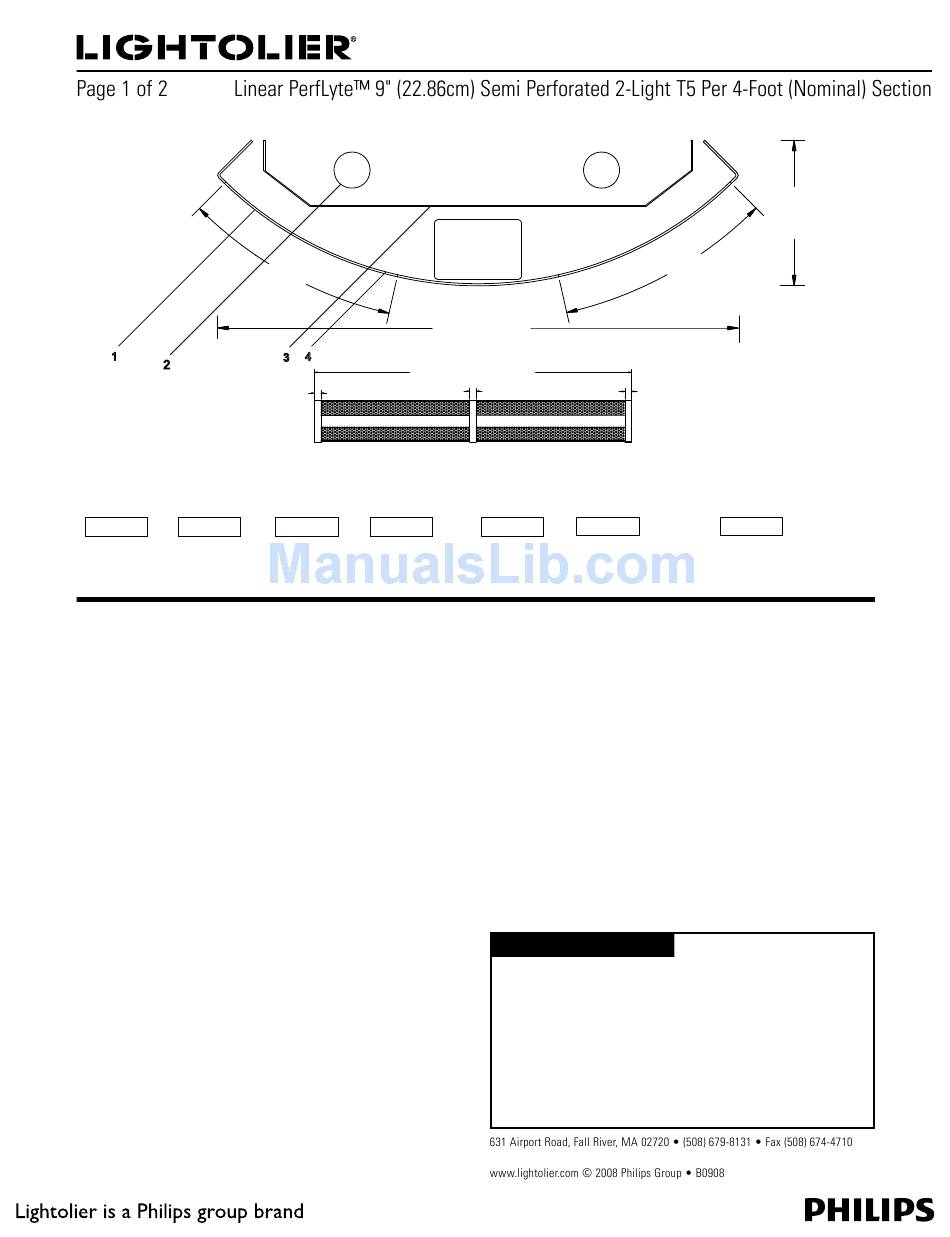

Lightolier Lighting Systems LP-5 Specification Sheet

Lighting systems 9" (22.86cm) semi perforated 2-light t5 per 4-foot (nominal) section

Advertisement

Quick Links

2" (5.08cm)
Module Ordering Information
Style
Series
LP
1
Complete ordering instructions below.
Features
1. Housing:
18 gauge perforated steel with 41% open hole pattern. Holes are
1/16" (0.16cm) diameter on 3/32" (0.24cm) centers. Die-formed steel end cap
with concealed access holes for through wiring. No exposed fasteners or
hardware.
2. Lamping: Two T5 28 or 54 watt (as specified) fluorescent lamps per 4-foot
section. Lamps provided by others.
3. Reflector: Precision die-formed specular aluminum.
4. Diffuser: Opal acrylic diffuser.
Electrical
Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-
ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection
for joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory
installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
Dimming: 120/277 VAC, 4 wire feed required.
Emergency Battery Pack: 28 watt: 520 lumens @ 90 minutes.
54 watt: 700 lumens @ 90 minutes.
Mountings
Cable Suspension (not shown) - 4-1/2" (11.43cm) diameter flat canopy finished
white enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up
to 36" (91.44cm) without cutting. Overlap connector to provided 46" (116.84cm) of
perforated and 2" (5.08cm) solid sections contiguously without the presence of
hairline connections (see Bottom View drawing above).
Options
Dual Switching: Order the DS option for separate row switching. DS option
automatically ships with the X4 option included.
4 Wire: Order X4 modules for remainder of the run when using dimming and/or
switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed
End Sets (LP1EC36X4) when using 4 Wire Modules.
Emergency Circuiting: Special circuiting - consult factory.
Perf
9" (22.86cm)
98" (248.92cm)
Bottom View
Type
Lamps
B
2T5 = 2-F28T5
2HO = 2-F54T5

Lighting Systems

3.4" (8.64cm)
2" (5.08cm)
2" (5.08cm)
Length
Ballast
4 = 4-Foot
U = Universal Voltage
8 = 8-Foot
E = Emergency Pack
12 = 12-Foot
D1 = Dimming 120v
D2 = Dimming 277v
Ordering Information
Individual Fixtures:
1. Order number of MODULES required.
2. Order one POWER FEED END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one POWER FEED END SET per run.
4. Order one CABLE ASSEMBLY per MODULE minus one per run.
5. For runs that exceed amperage limits, order the appropriate number of SINGLE
CABLE & CORD FEEDS.
Finish
Powder coated baked white enamel. Custom colors available, consult factory.
Labels
UL, cUL and I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LP-5
2.5"
(6.35cm)
Options
Blank = No Options
DS = A-B Switch
X4 = 4 Wire for Dimming &
Switched Emergency
Type:
