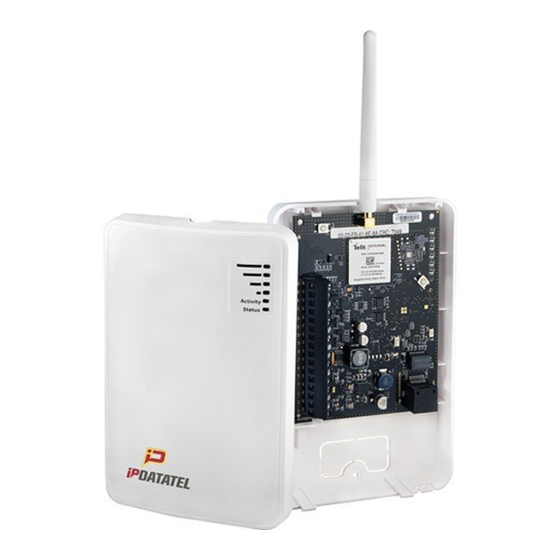

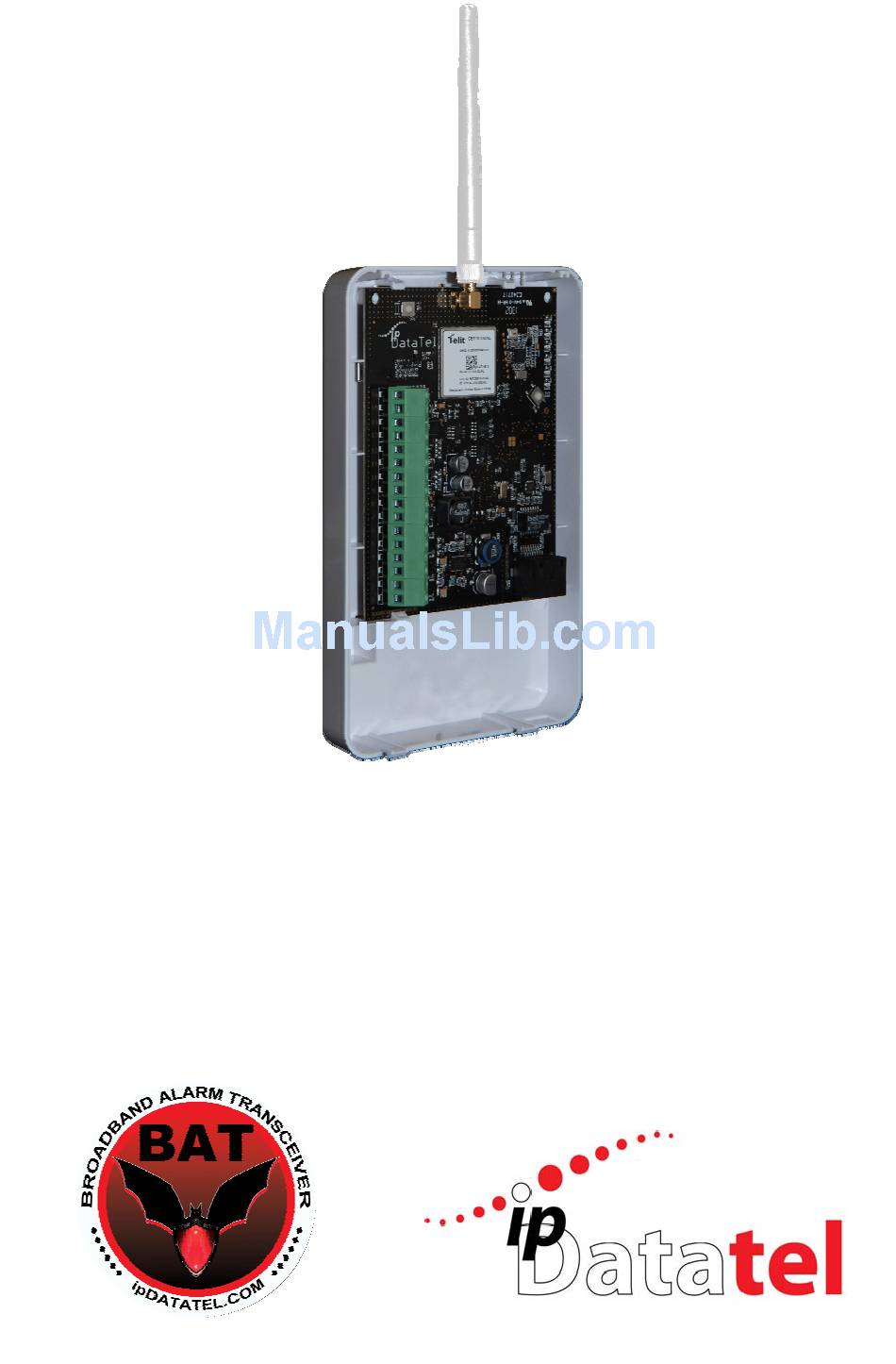

- Page 1 (shown without cover) Cellular Broadband Alarm Transceiver Product Code: BAT-CDMA Installation Manual Rev 2.2 www.ipDatatel.com 866-896-1818...
-
Page 2: Technical Support Information
Technical Support Information For Technical Support, call toll free: 866-896-1818 Email: techsupport@ipdatatel.com Web: www.ipdatatel.com ipDatatel, LLC 13110 Southwest Freeway Sugar Land, TX 77478 Toll Free: 866-896-1818 Revision Notes Revision Notes Date Initial Release 4/29/2013 Included Instructions for both 5/23/2013 Ethernet/CDMA Firmware Upgrade as well as CDMA provisioning. -
Page 3: Quick Reference
QUICK REFERENCE See Supported Panels section page 23 See page 18 for details Programming on GE NetworX: Section Cellular BAT-CDMA as Sole Communicator Device 0 Location 0 Enter the Phone Number Location 1 Enter Account Number Location 2 Enter ‘13’ for Contact ID... -
Page 4: Table Of Contents
Installation Guide ..................... 7 CDMA Service Provisioning ................7 General Considerations ..................8 Pre-Installation ....................8 Locating and Installing the Cellular BAT-CDMA ..........9 Telco - Digital Dialer ................... 9 Virtual Keypad Connection ................9 Power Connection ....................9 Basic Programming ................... 9 Full Virtual Keypad Programming .............. -
Page 5: Introduction
Honeywell, DSC, and GE NetworX alarm panels that are connected to the Cellular BAT-CDMA, Wifi BAT, and BAT products. Key Features Broadband Internet Connectivity ... -
Page 6: Cellular Bat-Cdma Internet Connectivity
Cellular BAT – CDMA Connectivity ipDatatel’s Cellular BAT-CDMA is a multi-path solution, giving you two separate transmission paths to your central station. The alarm panel can be set up to have hard wired Ethernet connectivity, and a “fail-over”... -
Page 7: Computerized Voice Alarm Notifications
Tamper Switch Monitoring The Cellular BAT-CDMA provides a tamper switch that is activated with the plastic enclosure on the device is opened. This allows an event/alarm to be tracked and or reported, based on your company’s policies. -
Page 8: General Considerations
General Considerations Before installation, your Cellular BAT-CDMA must also be setup using the dealer Branded Portal www.alarmdealer.com. The Product should be installed securely in the supplied plastic housing, and be mounted next to your alarm control panel. Where available, proximity to the hard-wired Ethernet Internet connection should be taken into consideration when routing wires. -
Page 9: Locating And Installing The Cellular Bat-Cdma
Telco, virtual keypad bus (if available), and keyswitch connections (optional). The Cellular BAT-CDMA should be connected to the Internet via a hard-wired (RJ45) internet connection located on the lower-right hand side to the circuit board. If a hard-wired Internet connection is not available then the Cellular connection will be used. -
Page 10: Full Virtual Keypad Programming
DSC Panels: No programming required to make the virtual keypad operate. GE Panels: Enter & Exit programming, Cellular BAT-CDMA will enroll as a Keypad (240) in the panel. Honeywell Vista Panels: Enable *193 with (1,0) to turn on Address Troubleshooting Diagnostic Information ... -
Page 11: Dsc Panel Wiring And Programming
DSC Panel Wiring and Programming DSC Control Panel RED BLK RING TIP YEL GRN BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring DSC Keybus & Tip/Ring Wiring Cellular BAT –CDMA Installation Guide Rev. 2.2... - Page 12 DSC PC-Link connection This allows for remote downloader functionality with ipDatatel’s Universal Downloader (uDownloader) software. (Not Required) DSC PC-Link Wiring R Wire = Terminal 11 B Wire = Terminal 12 G & W = Terminal 4 BAT-CDMA PC-Link Z2 out...
- Page 13 Tip & Ring to send Signals then you can wire a PC-Link from the Product to the Panel and perform PC-Link Programming. Otherwise, ALWAYS do TELCO Programming. TELCO Programming: General Concept Programming on DSC (Cellular BAT-CDMA as Sole Communicator): Section As Sole Communicator Code Summarization...
- Page 14 PC-Link Programming: DSC Programming for Communications (GSM Emulation): If GSM is used, it must be in dialer capture mode. Cellular Cellular Cellular Code Summarization BAT as Sole BAT as BAT as Dual Com- Failover w/ Reporting w/ municator Add'l Com- Add'l Com- munication munication...
-
Page 15: Vista Panel Wiring And Programming
Honeywell Vista Panel Wiring and Programming Vista Control Panel Data Data TIP RING BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring Vista Keybus & Tip & Ring Wiring Cellular BAT –CDMA Installation Guide Rev. 2.2... - Page 16 Honeywell Vista Panel Programming See Supported Panels section on page 23. Perform the TELCO Programming if Tip & Ring is being used. If for whatever reason you cannot use Tip & Ring to send Signals then you can perform ECP Bus Programming. Otherwise, ALWAYS do TELCO Programming.
- Page 17 ECP Bus Programming: Vista Programming for Communications - GSM Emulation: Cellular BAT in Cellular BAT use with another For Dual Code as Sole Communication Reporting Summarization Communicator Device for Failover This enables GSM. Enter 1 Enter 1 Enter 1 The BAT Emulates a GSM.
-
Page 18: Ge Panel Wiring And Programming
GE Panel Wiring and Programming GE Control Panel Com Data BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring GE Keybus & Tip & Ring Wiring Cellular BAT –CDMA Installation Guide Rev. 2.2... - Page 19 The Cellular BAT-CDMA must be power-cycled after making this change. To have this enabled so the Cellular BAT-CDMA gets signals from the key bus, you must contact ipDatatel. Otherwise use the TELCO to send signals.
-
Page 20: Generic Alarm Panel Wiring And Programming
Generic Alarm Panel Wiring and Programming Generic Control Panel Telco Side Black TIP RING BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring Generic Keypad Bus Tip & Ring Wiring Generic Alarm Panel Programming ... -
Page 21: Generic Keyswitch Wiring And Programming
Arm/Disarmed State. The Z1 output on the Product will be used as a key switch connecting to a ‘zone’ terminal on the alarm panel. Generic Panel – Keyswitch Wiring BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx... - Page 22 Generic Keyswitch Programming Keyswitch state programming examples for Ademco, Digital Security Controls, and GE NetworX for Keyswitch and panel state program output operations are given below. Most alarm panel manufacturers will have the capability to configure a zone as a keyswitch and generally have at least one on-board programmable output that can be configured to activate on a number of different control state conditions.
-
Page 23: Supported Panels
Supported Panels Ademco / Honeywell Vista Digital Full Panel Revision Dialer Interactive Emulator ✓ ✓ ✓ Vista-10P 2.6+ ✓ ✓ ✓ Vista-10PSIA 4.0+ ✓ ✓ ✓ Vista-128BP 3.0+ ✓ ✓ ✓ Vista-128BPE 1.0+ ✓ ✓ ✓ Vista-128FB 1.0+ ✓ ✓ ✓ Vista-128FBP 2.0+ ✓... -
Page 24: Firmware Upgrade Instructions
DSC (Digital Security Control) Digital Full Panel Revision Dialer Interactive Emulator ✓ ✓ ✗ PC5010 ✓ ✓ ✓ PC1616 4.13+ ✓ ✓ ✓ PC1832 4.13+ ✓ ✓ ✓ PC1864 4.13+ ✓ ✗ ✗ Alexor GE NetworX Digital Full Panel Revision Dialer Interactive Emulator... -
Page 25: Firmware Upgrade Via Cellular
Over-the-Air Firmware upgrades will be successful. Resolution These steps will upgrade the firmware on the Cellular BAT-CDMA while connected to an Ethernet network. Firmware Upgrade Steps Connect the Ethernet port to an Internet router. - Page 26 NOT recommended. Resolution These steps will upgrade the firmware on the Cellular BAT-CDMA while connected to an Ethernet network. Firmware Upgrade Steps Power on the Product with a 12V power source (either through a battery or a control panel).
-
Page 27: Warranty Information
Warranty Information LIMITED WARRANTY ipDatatel, LLC (hereinafter referred to as “Seller”), Located at 13110 Southwest Freeway, Sugar Land Texas 77478, warrants its Product to be in conformance with the Product specification, and to be free from defects in materials and workmanship under normal use and service for a period of twelve (12) months from the date of original purchase. -
Page 28: Fcc And Industry Canada Regulatory Compliance
Consequently, Seller shall have no liability for any personal injury, property damage or any other loss based on a claim that the Product or services there from, failed to give warning. However, if seller is held liable, directly or indirectly, for any loss or damage arising under this Limited Warranty or otherwise regardless of cause or origin, Seller maximum liability shall not in any case exceed the purchase price of the Product, which shall be the... - Page 29 Canada Avertissement de la FCC / IC Déclaration Cet appareil est conforme à la Partie 15 des règlements de la FCC et ICES-003, 4 e édition d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d'interférences nuisibles et (2) Cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent perturber le fonctionnement.
-
Page 30: Circuit Board Details
Cellular BAT-CDMA Circuit Board Details Cellular BAT –CDMA Installation Guide Rev. 2.2... -
Page 31: Specifications
Specifications Radio Frequencies CDMA 1x 800 MHz/1900 MHz Power Externally provided 12v DC Typical Current 130 mA Max Current 180 mA Environmental Temperature Range - 30° to +70° C (- 22° to +158° F) Humidity 0 to 95% non-condensing Physical... - Page 32 Go to www.ipDatatel.com to view on-line installation videos. ipDatatel, LLC 13110 Southwest Freeway Sugar Land, TX 77478 Toll Free: 866-896-1818 www.ipDatatel.com 9/13...
