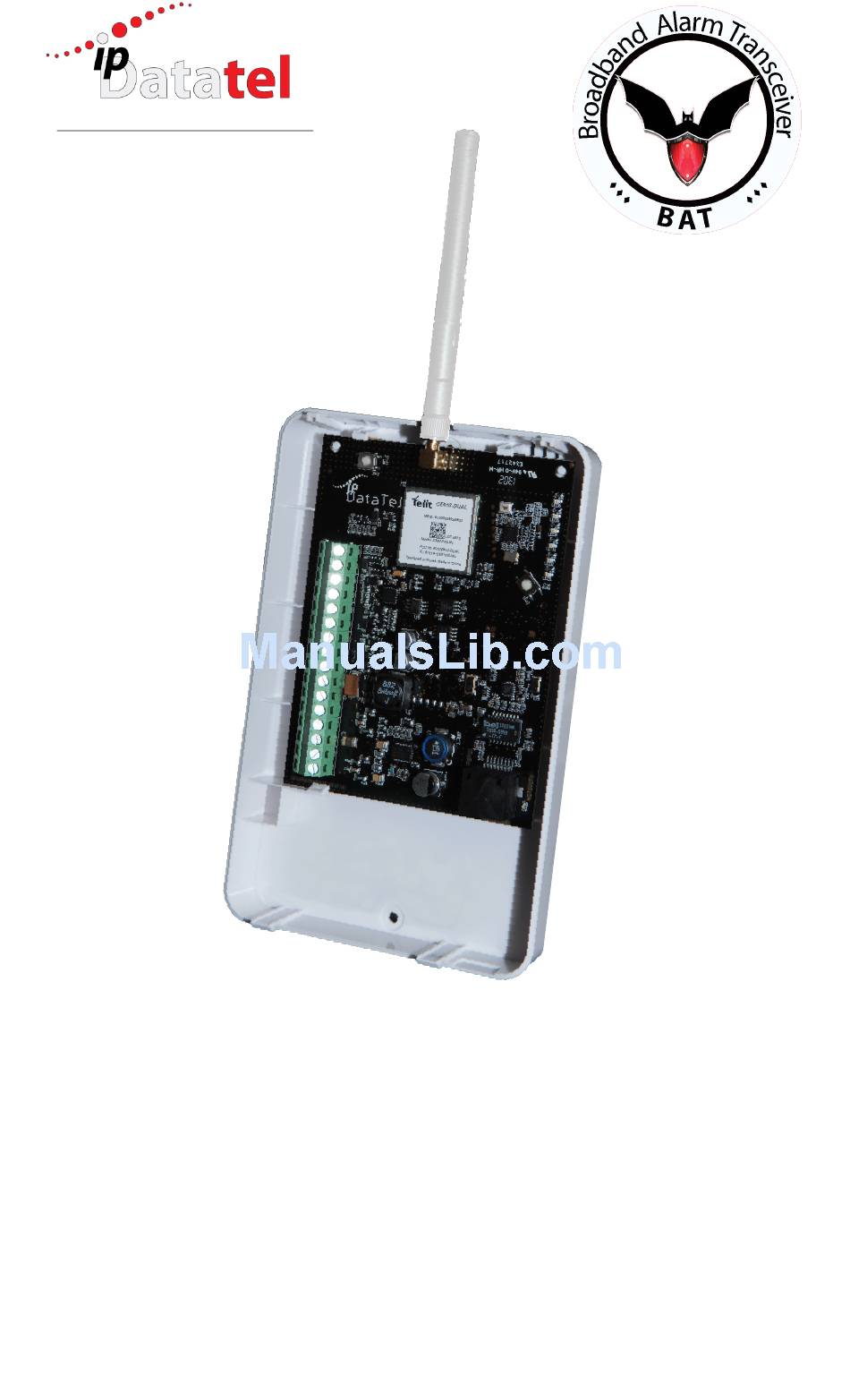

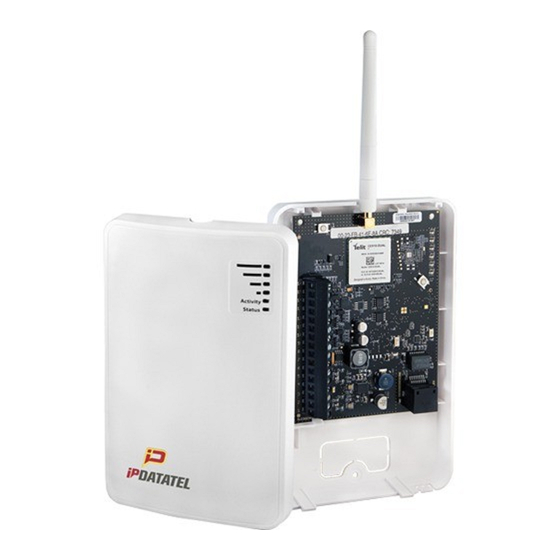

- Page 1 Universal CDMA Broadband Alarm Transceiver User’s Guide Installation and Operating Instructions...
-
Page 2: Quick Reference
QUICK REFERENCE G / Rx Y / Tx - Neg Power + Pos Programming on GE NetworX: Section BAT as Sole Communicator Device 0 G / Rx G / Rx Location 0 Enter the Phone Number Y / Tx Y / Tx Location 1 Enter Account Number - Neg... -
Page 3: Table Of Contents
Installation ..................6 General Considerations ............6 Pre-Installation ................ 7 Locating and Installing the BAT-CDMA ........ 7 Telco - Digital Dialer ..............7 Virtual Keypad Connection ............ 8 Power Connection ..............8 ... -
Page 4: Introduction
Internet via hardwired RJ45 Ethernet connection or via CDMA wireless cellular networks. The Bat-CDMA is compatible with any alarm control panel that transmits Contact ID (CID) format from its digital dialer. The BAT- CDMA also connects to the Keypad Bus of compatible (Honeywell, DSC, and GE NetworX) alarm control panels to provide additional interactive services. -
Page 5: Cellular Cdma Internet Connectivity
BAT-CDMA give you control over what signals are sent to the central station, helping save on monitoring costs. Cellular C DMA I nternet C onnectivity ipDatatel’s BAT-CDMA is a multi-path solution, giving you two separate connections to your central station. -
Page 6: Computerized Voice Alarm Notifications
Tamper S witch M onitoring The BAT-CDMA provides a tamper switch that is activated with the plastic enclosure on the BAT-CDMA is opened. This allows an event/alarm to be tracked and or reported, based on your company’s policies. -
Page 7: Pre-Installation
Enter the MAC address for the board you wish to register • Adding BAT to a Customer Account After registering the hardware, the BAT-CDMA must be added to a Customer Account. To do this, follow these steps: Log in to alarmdealer.com with the dealer login information that •... -
Page 8: Virtual Keypad Connection
DSC Panels: No programming required to make the virtual keypad operate. GE Panels: Enter & Exit programming, BAT-CDMA will enroll as a Keypad (240) in the panel. Vista Panels: Enable *193 with (1,0) to turn on Address 20. -
Page 9: Validating The Installation
Validating t he I nstallation After the unit is properly connected to the Alarm Panel and powered up, use the following steps to validate that the system is functioning properly: Insure that virtual keypad functionality works through •... -
Page 10: Dsc Panel Wiring And Programming
DSC P anel W iring a nd P rogramming DSC Control Panel RED BLK YEL GRN RING TIP BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power... - Page 11 DSC PC-Link connection This allows for remote downloader functionality with ipDatatel’s Universal Downloader (uDownloader) software. BAT-CDMA PC-Link Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring DSC PC-Link Wiring...
-
Page 12: Sole Communicator
DSC Panel Programming See Supported Panels section. All Control Panels must have a Phone Number in the Panel and an Account Number in the Panel. As long as your Reporting Codes are in the Panel and is Transmitting in Contact ID it will send signals. Recommended: General Concept Programming on DSC (BAT as Sole Communicator): Section... - Page 13 Continued from previous page. Optional: DSC Programming for Communications (GSM Emulation): If GSM is used, it must be in dialer capture mode Secti BAT as Sole BAT as BAT as Code Summarization Communi- Failover w/ Dual cator Add'l Reporting Communi- w/ Add'l cation Communi-...
-
Page 14: Vista Panel Wiring And Programming
Vista P anel W iring a nd P rogramming Vista Control Panel Data Data TIP RING BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring Vista Keybus &... - Page 15 Vista Panel Programming See Supported Panels section. All Control Panels must have a Phone Number in the Panel and an Account Number in the Panel. As long as your Reporting Codes are in the Panel and is Transmitting in Contact ID it will send signals. Recommended: Programming on Vista (BAT as Sole Communicator): For BAT as Sole...
- Page 16 Optional: Vista Programming for Communications - GSM Emulation: For BAT in use For BAT as with another Sole For Dual Code Section Communication Communicat Reporting Summarization Device for Failover This enables GSM. Enter 1 Enter 1 Enter 1 The BAT Emulates a GSM.
-
Page 17: Ge Panel Wiring And Programming
GE P anel W iring a nd P rogramming GE Control Panel Com Data BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg Power + Pos Ring GE Keybus & Tip/Ring wiring... - Page 18 GE Panel Programming See Supported Panels section. Recommended: General Concept Programming on GE NetworX: Section BAT as Sole Communicator Code Summarization Device 0, Enter the Phone Number Location 0 Device 0, Enter Account Number Location 1 Device 0, Enter ‘13’ Recommended Contact ID Location 2 value...
-
Page 19: Generic Alarm Panel Wiring And Programming
Generic A larm P anel W iring a nd P rogramming Generic Control Panel Telco Side Black TIP RING BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx Y / Tx - Neg... -
Page 20: Generic Keyswitch Wiring And Programming
The Z1 output on the BAT will be used as a key switch • connecting to a ‘zone’ terminal on the alarm panel. Generic Panel – Keyswitch Wiring BAT-CDMA Z2 out Z1 out PC-Link RS-485 RS-232 G / Rx... - Page 21 Generic Keyswitch Programming Keyswitch state programming examples for Ademco, Digital Security Controls, and GE NetworX for Keyswitch and panel state program output operations are given below. Most alarm panel manufacturers will have the capability to configure a zone as a keyswitch and generally have at least one on-board programmable output that can be configured to activate on a number of different control state conditions.
-
Page 22: Supported Panels
Supported Panels Ademco & Honeywell Digital Full Panel Revision Dialer Interactive Emulator ✓ ✓ ✓ Vista-10P 2.6+ Vista-10PSIA 4.0+ ✓ ✓ ✓ ✓ ✓ ✓ Vista-128BP 3.0+ ✓ ✓ ✓ Vista-128BPE 1.0+ ✓ ✓ ✓ Vista-128FB 1.0+ Vista-128FBP 2.0+ ✓ ✓... - Page 23 DSC (Digital Security Control) Digital Full Panel Revision Dialer Interactive Emulator ✗ ✓ ✓ PC5010 ✓ ✓ ✓ PC1616 4.13+ ✓ ✓ ✓ PC1832 4.13+ ✓ ✓ ✓ PC1864 4.13+ ✗ ✗ Alexor ✓ GE NetworX Digital Full Panel Revision Dialer Interactive Emulator...
-
Page 24: Warranty Information
Warranty Information LIMITED W ARRANTY ipDatatel, LLC (hereinafter referred to as “Seller”), Located at 13110 Southwest Freeway, Sugar Land Texas 77478, warrants its product to be in conformance with the product specification, and to be free from defects in materials and workmanship under normal use and service for a period of twelve (12) months from the date of original purchase. -
Page 25: Fcc And Industry Canada Regulatory Compliance
Consequently, Seller shall have no liability for any personal injury, property damage or any other loss based on a claim that the Product or services there from, failed to give warning. However, if seller is held liable, directly or indirectly, for any loss or damage arising under this Limited Warranty or otherwise regardless of cause or origin, Seller maximum liability shall not in any case exceed the purchase price of the Product, which shall be the... -
Page 26: Canada Avertissement De La Fcc / Ic Déclaration
Canada A vertissement d e l a F CC / I C D éclaration Cet appareil est conforme à la Partie 15 des règlements de la FCC et ICES-003, 4 e édition d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d'interférences nuisibles et (2) Cet appareil doit accepter toute interférence reçue, y compris... -
Page 27: Circuit Board Details
Circuit Board Details... -
Page 28: Specifications
Externally provided 12v DC • Environmental Temperature Range - 30° to +70° C (- 22° to +158° F) • Humidity 0 to 95% non-condensing • Physical Height 7.05 inches • Width 4.45 inches • Depth 1.5 inches • IPD-BAT-CDMA-MAN REV 2.0...
