Summary of Contents for ipDatatel BAT-WiFi

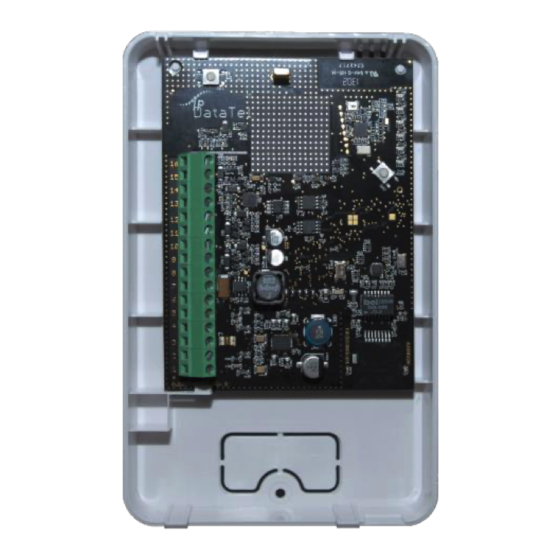

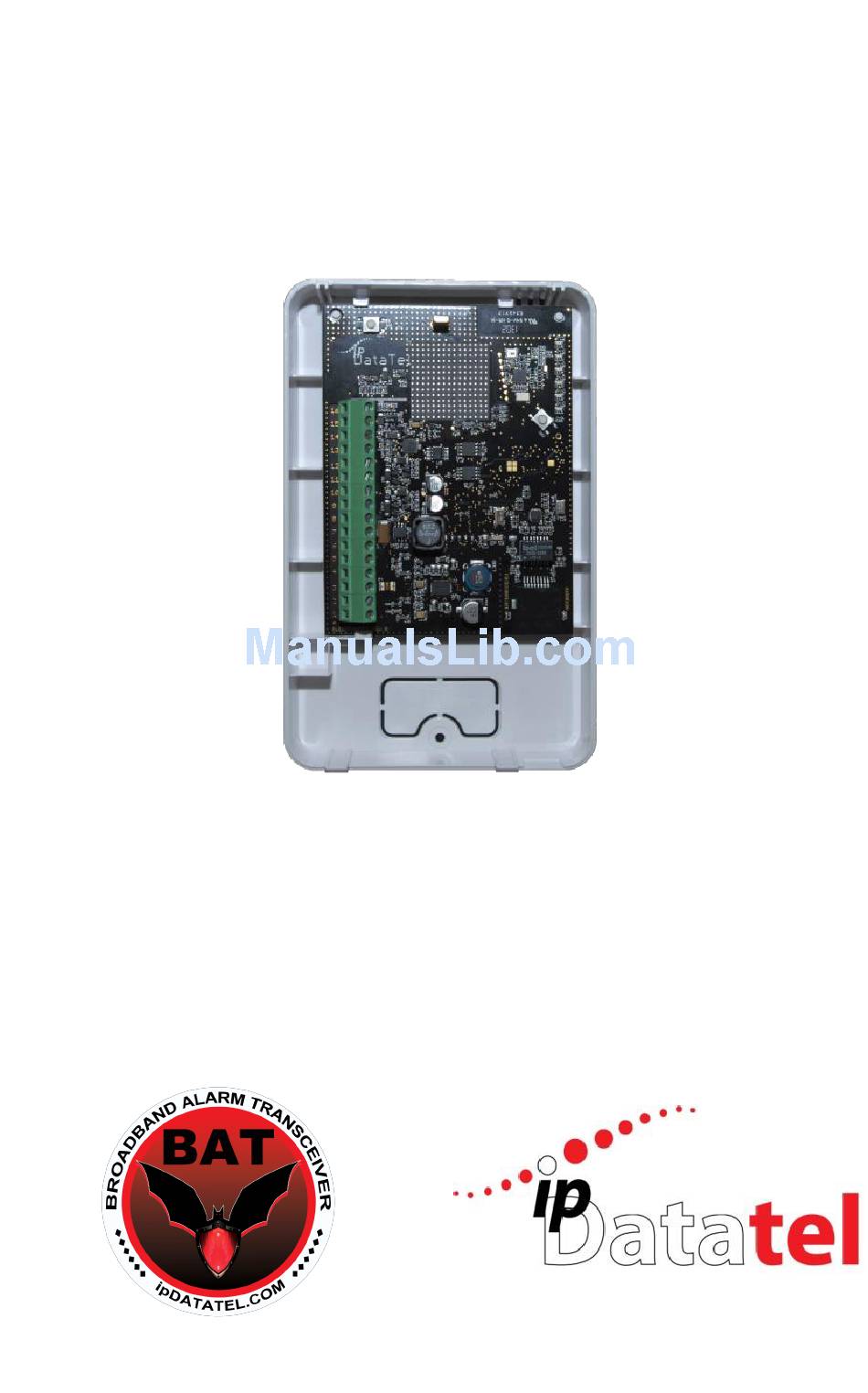

- Page 1 (shown without cover) Universal WiFi Broadband Alarm Transceiver Product Code: IPD-BAT-WiFi Installation Manual Rev 1.0 www.ipDatatel 866-896-1818...
-
Page 2: Revision Notes
Technical Support Information For Technical Support, call toll free: 866-896-1818 Email us at techsupport@ipdatatel.com Visit www.ipdatatel.com ipDatatel Technical Support 13110 Southwest Freeway Sugar Land, TX 77478 Revision Notes Revision Notes Date Initial Release 8/8/2013 Universal WiFi BAT Installation Guide (rev 1.0) -
Page 3: Quick Reference
QUICK REFERENCE See Supported Panels section page 25 See page 20 for details Programming for TELCO use on GE NetworX: Section Universal WiFi BAT as Sole Communicator Device 0 Location 0 Enter the Phone Number Location 1 Enter Account Number Enter ‘13’... -
Page 4: Table Of Contents
SW1 Button [located on the top left of the board] ....9 Reset the Wireless Network (AP Configuration Tool) ..9 Pre-Installation................ 9 Locating and Installing the BAT-WIFI ........10 Telco - Digital Dialer ..............10 Virtual Keypad Connection ...........10 Power Connection ..............11 Basic Programming ...............11... -
Page 5: Introduction
Internet via hardwired RJ45 Ethernet connection or via WIFI wireless networks. The Bat-WIFI is compatible with any alarm control panel that transmits Contact ID (CID) format from its digital dialer. The BAT- WIFI also connects to the Keypad Bus of compatible (Honeywell and DSC) alarm control panels to provide additional interactive services. -
Page 6: Wifi Internet Connectivity
These automated features of the BAT-WIFI give you control over what signals are sent to the central station, helping save on monitoring costs. -
Page 7: Computerized Voice Alarm Notifications
Computerized Voice Alarm Notifications ipDatatel also provides an exclusive feature of notifications via computerized voice for customers who wish a phone call, where they may not want text or email messages. Universal WiFi BAT Installation Guide (rev 1.0) -
Page 8: Installation Guide
BAT WiFi easily join the customer’s WiFi Network. This guide can be found at: Connecting to a Wireless Network (AP Configuration Tool) The BAT-WIFI has an AP Configuration Tool which is designed to assist with ensuring the BAT-WIFI joins a wireless network easily. The following steps should be followed: Power up the BAT-WIFI at the alarm panel. -
Page 9: Sw1 Button [Located On The Top Left Of The Board]
“AP Configuration Tool” again. Pre-Installation Hardware Registration Before installation of your BAT-WIFI, it must be registered at www.alarmdealer.com. Here are the steps needed to register your hardware: Universal WiFi BAT Installation Guide (rev 1.0) -
Page 10: Locating And Installing The Bat-Wifi
Enter the MAC address for the board you wish to register Adding BAT to a Customer Account After registering the hardware, the BAT-WIFI must be added to a Customer Account by following these steps: Log in to alarmdealer.com with the dealer login information that was emailed to you. -
Page 11: Power Connection
WIFI. Power Connection The last step is to wire the alarm panel’s 12VDC auxiliary power and ground to BAT-WIFI positive (pin 3) and negative (pin 4) terminals. See Wiring Diagram on page 30. Basic Programming Because the BAT-WIFI simulates telephone service to the panel,... -
Page 12: Troubleshooting Diagnostic Information
Activity light is not periodically blinking. LED – 1 is used for DHCP & Network connection diagnostics: Solid: Indicates a connection has been made to ipDatatel. (The unit is Online) 3 Flashes: Indicates the device is not connected to the Internet or is not pulling a DHCP from the router. -
Page 13: Dsc Panel Wiring And Programming
DSC Panel Wiring and Programming D S C Co nt rol Panel RE D B LK GR N RING BAT-WiFi Z2 out Z1 out PC-Link TX D RS-485 RS-232 G / Rx Y / Tx -N e g Power + Pos Ri n g DSC Keybus &... - Page 14 DSC PC-Link connection This allows for remote downloader functionality with ipDatatel’s Universal Downloader (uDownloader) software. R Wire = Terminal 11 B Wire = Terminal 12 G & W = Terminal 4 DSC PC-Link Wiring Universal WiFi BAT Installation Guide (rev 1.0)
- Page 15 DSC Panel Programming See Supported Panels section on page 25. All Control Panels must have a Phone Number in the Panel and an Account Number in the Panel. As long as your Reporting Codes are in the Panel and is transmitting in Contact ID it will send signals. Programming when using TELCO (Recommended): General Concept Programming on DSC (BAT WiFi as Sole Communicator):...
- Page 16 Programming ONLY when using PC-Link to send Signals (Not Recommended): f GSM is used, it must be in dialer capture mode Section BAT as BAT as BAT as Code Summarization Sole Failover w/ Dual Communi Add'l Reporting -cator Communi- w/ Add'l cation Communi- Device...
-
Page 17: Vista Panel Wiring And Programming
Vista Panel Wiring and Programming Vista Keybus & Tip/Ring Wiring Universal WiFi BAT Installation Guide (rev 1.0) - Page 18 Vista Panel Programming See Supported Panels section on page 25. All Control Panels must have a Phone Number in the Panel and an Account Number in the Panel. As long as your Reporting Codes are in the Panel and is transmitting in Contact ID it will send signals. Programming when using TELCO (Recommended): Programming on Vista (BAT WiFi as Sole Communicator): For BAT as Sole...
- Page 19 Programming when ONLY using Keybus to send Signals (Not Recommended): Vista Programming for Communications - GSM Emulation: For BAT in use For BAT as with another Sole For Dual Code Section Communication Communicat Reporting Summarization Device for Failover This enables GSM. Enter 1 Enter 1 Enter 1...
-
Page 20: Ge Panel Wiring And Programming
GE Panel Wiring and Programming GE Keybus & Tip/Ring Wiring Universal WiFi BAT Installation Guide (rev 1.0) - Page 21 GE Panel Programming See Supported Panels section on page 25. Recommended: General Concept Programming on GE NetworX: Section BAT as Sole Communicator Code Summarization Device 0, Enter the Phone Number Location 0 Device 0, Enter Account Number Location 1 Enter ‘13’ Recommended Device 0, Contact ID Location 2...
-
Page 22: Generic Alarm Panel Wiring And Programming
Generic Alarm Panel Wiring and Programming Generic Keybus & Tip/Ring Wiring Generic Alarm Panel Programming Program the panel Phone Number into the panel Program the Customers Account Number into the panel Program Reporting codes into the panel ... -
Page 23: Generic Keyswitch Wiring And Programming
Generic Keyswitch Wiring and Programming For basic keyswitch interactive services with the BAT WiFi, the following alarm panel wiring is needed. A programmable output on the alarm panel will be used to signal to the BAT (Y/Tx terminal) that the panel has entered Arm/Disarmed State. - Page 24 Generic Keyswitch Programming Keyswitch state programming examples for Ademco, Digital Security Controls, and GE NetworX for Keyswitch and panel state program output operations are given below. Most alarm panel manufacturers will have the capability to configure a zone as a keyswitch and generally have at least one on-board programmable output that can be configured to activate on a number of different control state conditions.
-
Page 25: Supported Panels
Supported Panels Honeywell Digital Full Panel Revision Dialer Interactive Emulator ✓ ✓ ✓ Vista-10P 2.6+ ✓ ✓ ✓ Vista-10PSIA 4.0+ ✓ ✓ ✓ Vista-128BP 3.0+ ✓ ✓ ✓ Vista-128BPE 1.0+ ✓ ✓ ✓ Vista-128FB 1.0+ ✓ ✓ ✓ Vista-128FBP 2.0+ ✓... - Page 26 DSC (Digital Security Control) Digital Full Panel Revision Dialer Interactive Emulator ✗ ✓ ✓* PC5010 ✓ ✓ ✓ PC1616 4.13+ ✓ ✓ ✓ PC1832 4.13+ ✓ ✓ ✓ PC1864 4.13+ ✗ ✓ ✗ Alexor *Not ALL virtual keypad features may work. Arm/Disarm/System Status do work.
-
Page 27: Warranty Information
Warranty Information LIMITED WARRANTY ipDatatel, LLC (hereinafter referred to as “Seller”), Located at 13110 Southwest Freeway, Sugar Land Texas 77478, warrants its product to be in conformance with the product specification, and to be free from defects in materials and workmanship under normal use and service for a period of twelve (12) months from the date of original purchase. - Page 28 Consequently, Seller shall have no liability for any personal injury, property damage or any other loss based on a claim that the Product or services there from, failed to give warning. However, if seller is held liable, directly or indirectly, for any loss or damage arising under this Limited Warranty or otherwise regardless of cause or origin, Seller maximum liability shall not in any case exceed the purchase price of the Product, which shall be the...
- Page 29 Canada Avertissement de la FCC / IC Déclaration Cet appareil est conforme à la Partie 15 des règlements de la FCC et ICES-003, 4 e édition d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d'interférences nuisibles et (2) Cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent perturber le fonctionnement.
-
Page 30: Universal Wifi Bat Circuit Board Detail
Universal WiFi BAT Circuit Board Detail Universal WiFi BAT Installation Guide (rev 1.0) -
Page 31: Specifications
Specifications Frequency: WiFi 802.11bg(mixed mode) Power: Externally provided 12v DC Typical Current 130 mA Max Current 185mA Environmental: Temperature Range - 30° to +70° C (- 22° to +158° F) Humidity 0 to 95% non-condensing Physical: ... - Page 32 Go to www.ipDatatel.com to view on-line installation videos. ipDatatel, LLC 13110 Southwest Freeway Sugar Land, TX 77478 Toll Free: 866-896-1818 www.ipDatatel.com 9/13...
